High capacity, high quality, PLA,ABS filament making machine

High capacity, high quality, PLA,ABS filament making machine

High capacity, high quality, PLA,ABS filament making machine

Product Details:

Place of Origin: CHINA
Brand Name: YAOAN
Certification: CE
Model Number: 45MM

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: WOODEN BOX
Delivery Time: 30-90 DAYS
Payment Terms: TT,LC
Supply Ability: 100 SETS PER MONTH
Contact Now
Detailed Product Description

Features:

1,Material:PLA,ABS



2,Diameter :1.75mm-3.0mm



3,Shape:round



4,Color:bule,red,orange,yellow,green .



5,Usage:  be applied to a variety of 3D printer, Makerbot, Mendel, Prusa, Huxley, BFB series, etc..



Specificaitons as below:



 pla abs filament machine  configurations and quotation:



Φ45 extruder (one set)

50kg hopper dryer: one set

Auto-loader: one set

Screw diameter: 45mm

Screw L/D: 28:1

Screw structure: special

Reducer unit (one set)

Control power: 11kw

Use China named brand DONGGUAN MOTOR control

Control style: frequency conversion (TAIWAN DELTA)

Belt transmission between motor and gear box.

Thermostat zones: 5 zones    2 kw for each zone

Use stainless steel heater

Use Japan Omron temperature controller

Cooling zones: 3 zones  0.18 kw for each zone

Used TAIWAN named brand blower

Electrical control box (one set)

Flange: one set



Extruding die: one set

Round filament diameter: Ø1.0-2.0mm



6m stainless steel cooling water tank: one set

Water tank stand: one set



Double shaft  haul off unit: one set

Haul off control power: 0.75kw*2

Control style: frequency conversion

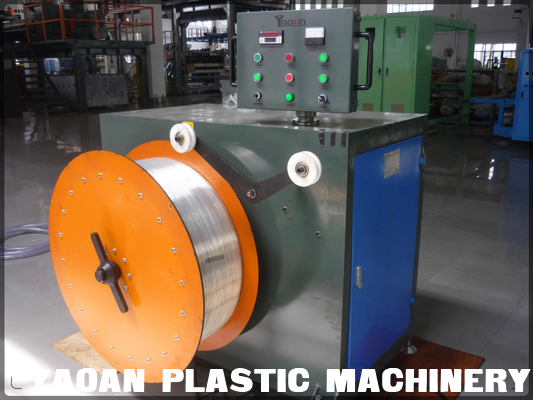

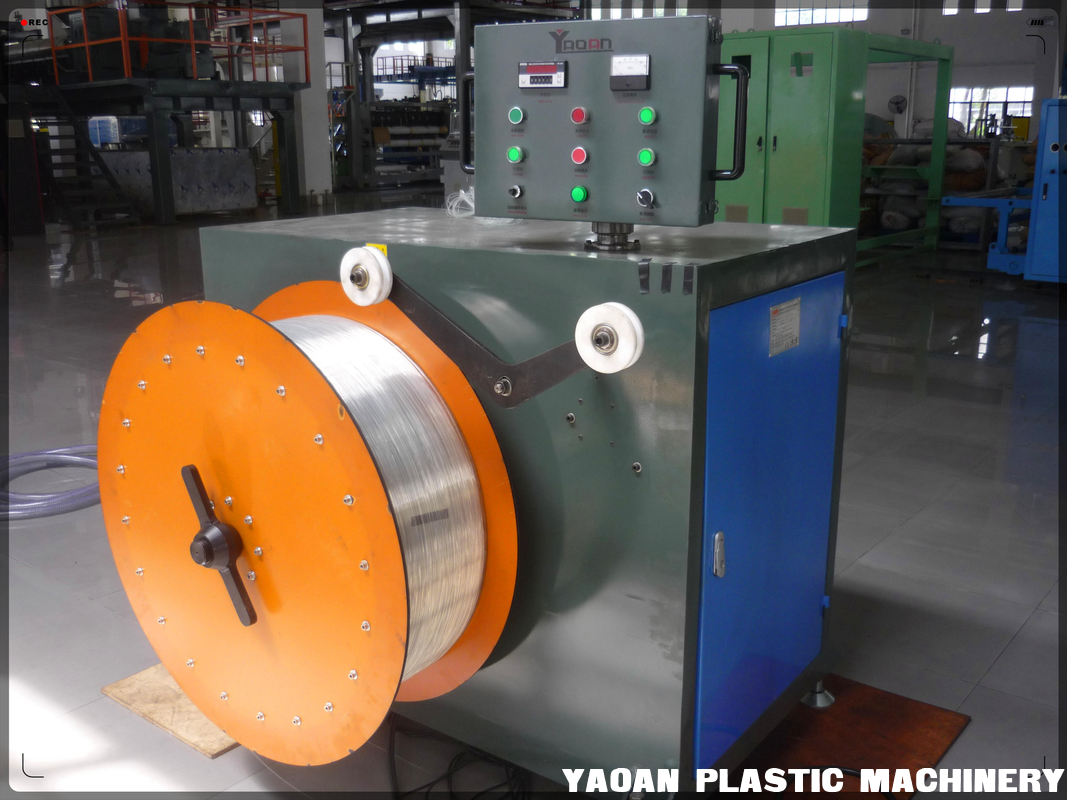

Winding unit: one set

Work shaft: 2

Motor power: 0.75KW

Control style: moment motor control

Encoder can control the length of winding, it will stop and warning when winding enough.



About our machines:



 High capacity, high quality, PLA,ABS filament making machine
