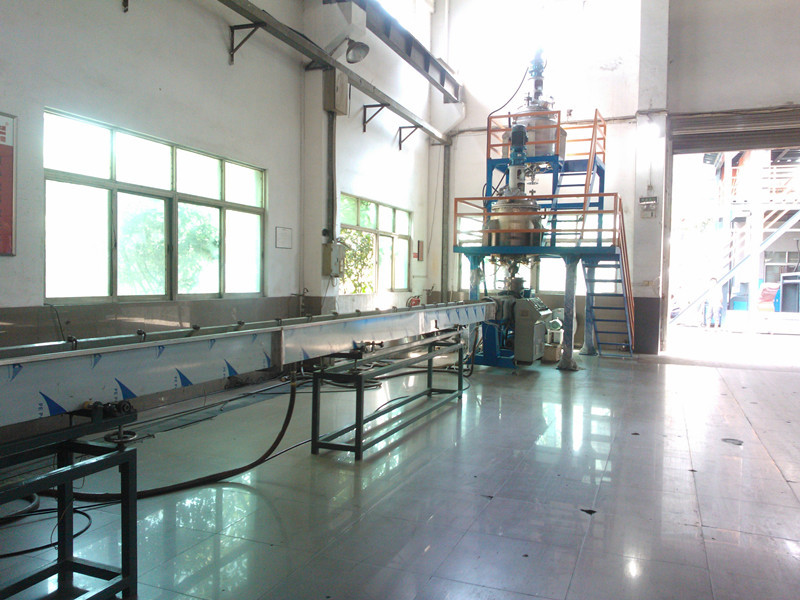

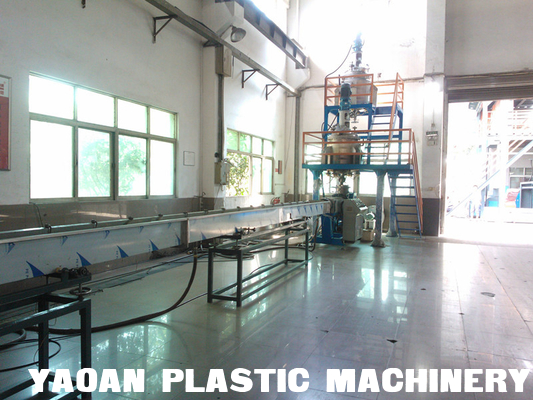

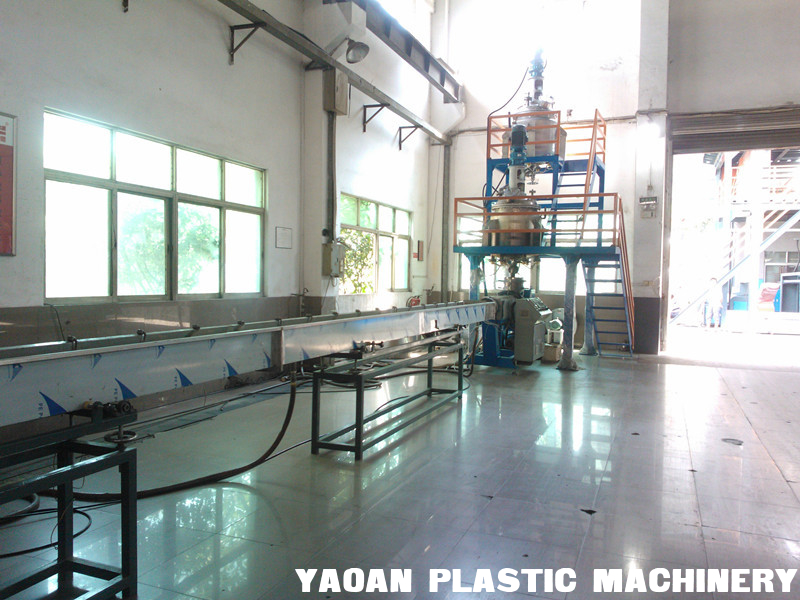

EVA hot melt glue machine

EVA hot melt glue machine

EVA hot melt glue machine

Product Details:

Place of Origin: CHINA
Brand Name: YAOAN
Certification: CE
Model Number: 120

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: WOODEN BOX
Delivery Time: 30-90 DAYS
Payment Terms: TT,LC
Supply Ability: 100 SETS PER MONTH
Contact Now
Detailed Product Description
Application: Bar Screw Design: Single-screw
Plastic Processed: EVA



EVA hot melt glue machineEVA hot melt glue machine



glue stick extrusion line configuration:

1. Hot mixing vessel: one set (500L)



2. Vessel frame: one set

Material: steel



3. EVA glue stick extruder: one set

Screw:

Screw structure: special

The screw and the barrels are all made of high quality nitride steel-38CrMoAIA, and are nitration austerely according to NATIONAL STANDARD,Nitration depth: screw: 0.3-0.7mm, barrel: 0.4-0.6mm,fragility is 2 grades.

    Reducer: one

Extrusion mould with two flow channels: one (diameter: 7,11mm)



 4. Cooling water tank: one set

    Material: stainless steel



 5. Two wheels haul-off unit: one set

   Control power: 0.75kw

   Control style: frequency conversion

   Haul-off and automatic cutting machine: one set

   Control power: 0.75kw

   Control style: frequency conversion

   Cutting motor: 0.75kw

   Control style: frequency conversion

EVA hot melt glue machineEVA hot melt glue machine



 EVA hot melt glue machine

EVA hot melt glue machine
