High Speed Double Colors PC LED Tube Light Housing Extrusion Machine , 4-6m/min , Online Punching

Basic Information
Place of Origin: CHINA
Brand Name: YAOAN
Certification: CE
Model Number: 55MM
Minimum Order Quantity: 1
Packaging Details: WOODEN BOX
Delivery Time: 30-90 DAYS
Payment Terms: TT,LC
Supply Ability: 100 SETS PER MONTH
Contact Now
Application: LED Lighting Screw Design: Single-screw
Plastic Processed: PC Machine Color: Customized
Motor: Customized Water Requirement: 1cbm/Hr
Length Accuracy: ±0.5mm Operator: 1 Person
Machine Dimension: 11000*2500*2300mm HS Code: 847720900
Production Speed: 4-6M/ Min Automation: Automatic

High Speed Double Colors PC LED Tube Light Housing Extrusion Machine , 4-6m/min , Online Punching

1. The machine is used to produce various PC tube, PC profile, transparent LED lampshade, single color or double color led lampshade etc. Also it can work with PMMA material.

2. Applied materials: PC PMMA etc;

3. Features and advantages:

(1) Newly developed online precise cutting technology, one-time cutting online, no need the second time cutting, cutting precision within 0.5mm, cut end neat, chip-less, higher efficiency;

(2) Special screw for PC material, perfect plasticizing, to ensure the finished products without crystallized dot, without pulling mark, without vibration mark, with high light transmittance, and high transparency. Screw made of imported special alloy steel, material never attach on the screw, no black dot during production and no need to clean screw.


Composition & technical details of Single and double colors T5 T8 T10 PC LED tube light housing extrusion machine

MACHINE PARTS QUANTITY
MAIN EXTRUDER 1 OR 2 SETS
EXTRUDING DIE AND CALIBRATION MOULD 1 SET
VACUUM CALIBRATION TABLE 1 SET
SYNCHRONIZED DUAL BELTS PULLING MACHINE 1 SET
FIXED LENGTH PRECISE CUTTER AND STORAGE MACHINE 1 SET
SINGLE SCREW EXTRUDER
OR TWO EXTRUDERS CO-EXTRUSION

(1) Screw model: AF-45, AF-50, AF-55, AF-65 available for option; L/D: 28:1;

Separated type screw is adopted as it is especially suitable for PC transparent material, milky material and diffusion material for production, so as to lower down raw materials cost largely.

(2) AC motor drive, with enough motive power and quite stable in running; Temperature control meter: intelligent type; the precision could reach +/-1 degree;


(3) Heating control zone: 7 zone (barrel 4 zone, extruding die 3 zone); According to different extruders.
EXTRUDING DIE AND CALIBRATION MOULD
Special S136H mirror surface steel for dies, the surface of the extruding dies is mirror polished.

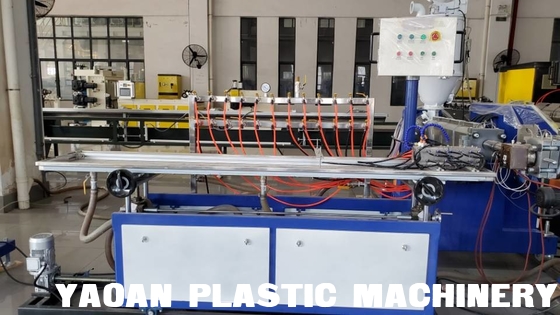

VACUUM CALIBRATION TABLE
(1) Stainless steel tank;
3D adjusting machine frame, with 12-way vacuum, 12 way cooling water;


(2) circular water cooling tank
Provide water to calibration mould
Water pump: 0.37KW

(3) vacuum pump fixed outside;
the whole machine is compact and strong without vibration.

(4) Length: 1.5m, 2m, 2.5m, 3m for option;

(5) Vacuum pressure: 0.01~0.08MPA, adjustable;
Vacuum pump power: 2.2KW or 3KW;
Vacuum is stable and silent.
SYNCHRONIZED DUAL BELTS PULLING MACHINE
(1) Open-close, up-down adjusting;
belt workable length 1 meter, constant stable puller;

(2) high wear-resistant foamed surface PU multi-wedge belt;

(3) high precision frequency conversion controller;
tractor speed 0-15m/minute stepless adjustable.

(4) Single motor or double motor available for option;
Power: 1.5KW or 2.2KW
FIXED LENGTH PRECISE CUTTER AND STORAGE MACHINE
(1) Innovative cutting technology;
Optical type length-setting device;
Solve the online-precise-cutting difficulty in this industry;

(2) Online cutting precision: within 0.5mm;

(3) No burrs cutting, without powder and dust;
No need the second time precise cutting;

(4) SIEMENS PLC control with display screen

Easy to set value and operate.

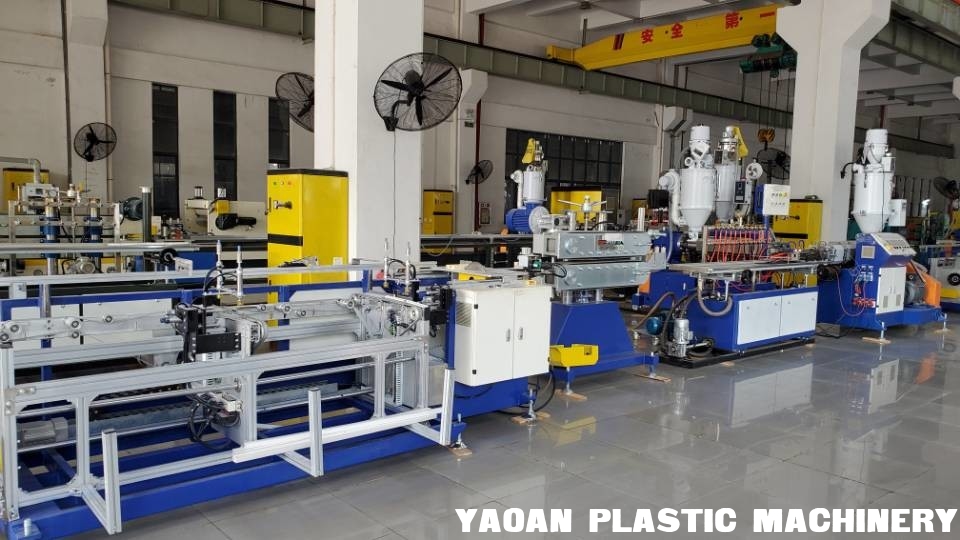

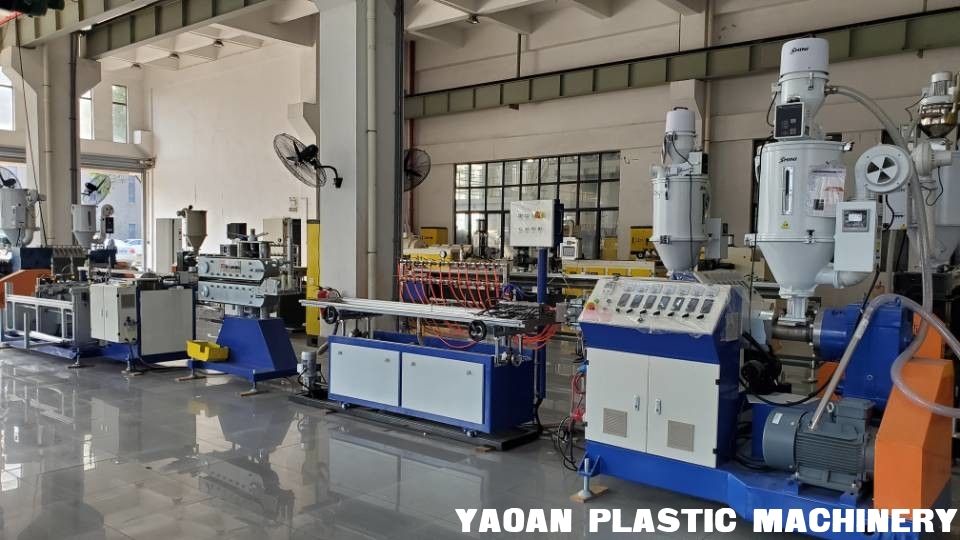

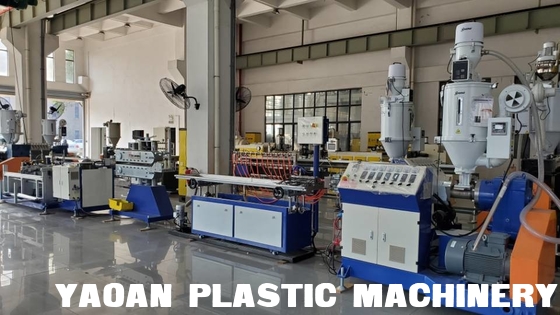

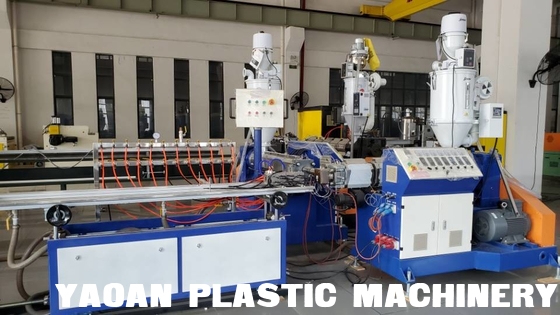

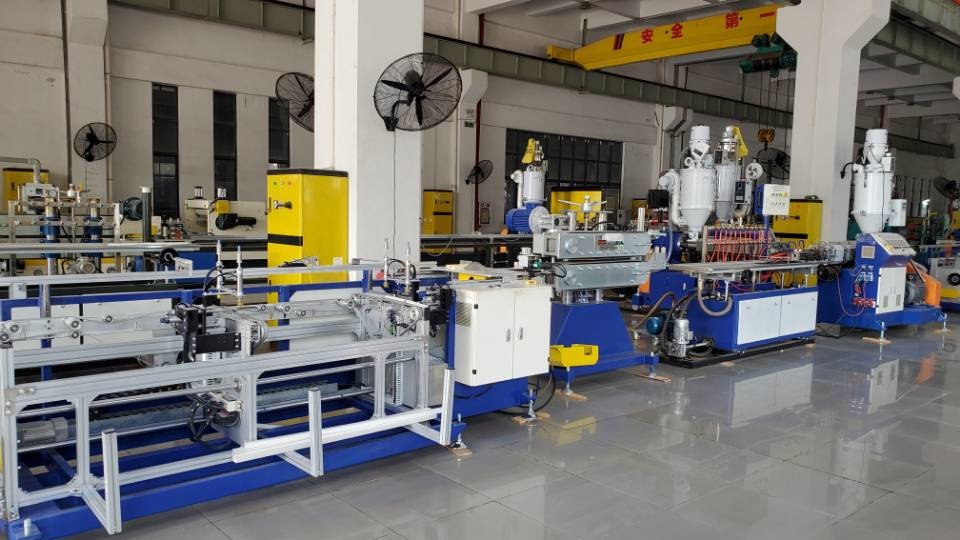

Extruder mahcine photos:
High Speed Double Colors PC LED Tube Light Housing Extrusion Machine , 4-6m/min , Online Punching
High Speed Double Colors PC LED Tube Light Housing Extrusion Machine , 4-6m/min , Online Punching
High Speed Double Colors PC LED Tube Light Housing Extrusion Machine , 4-6m/min , Online Punching

High Speed Double Colors PC LED Tube Light Housing Extrusion Machine , 4-6m/min , Online Punching

High Speed Double Colors PC LED Tube Light Housing Extrusion Machine , 4-6m/min , Online Punching

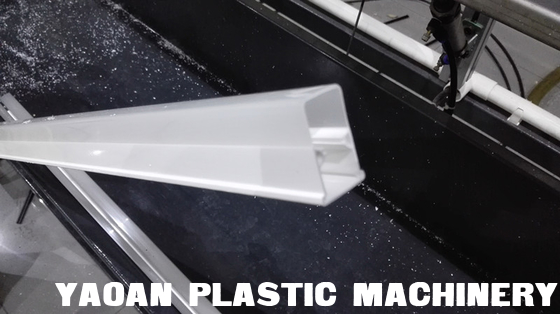

Finished LED lampshade photo
Single Double Colors PC LED Tube Light Housing Extrusion Machine

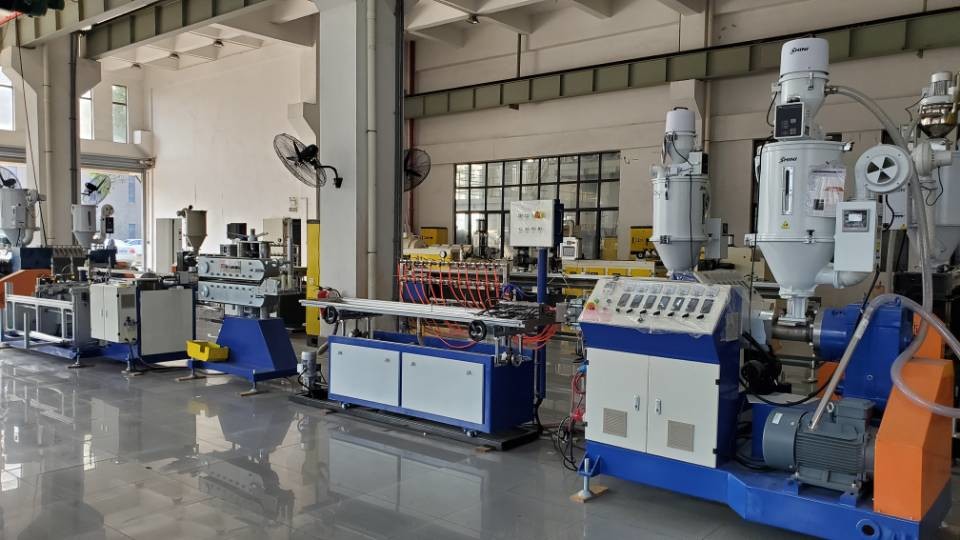

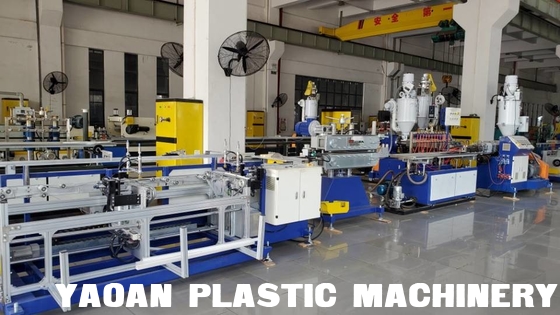

YAOAN machinery factory photo
Single Double Colors PC LED Tube Light Housing Extrusion Machine

Packaging and shipping

PACKAGING plastic film + stretch film + wooden case + drying agent.
DELIVERY About 50 days (all new parts)
SHIPPING We place and fix the machines well into container and check carefully before closing the container so as to ensure everything is ok for the shipment. (Use steel wire to fix machine and drying agent).
We care each and every point so that our clients could receive the machines in perfect situation.



What is our service system?

PRE-SALE a. Detailed machine introduction;

b. Suggest suitable turnkey solution as per clients requirements;

c. Provide test production for reference;
IN PRODUCTION a. Supply layout drawing to clients for preparation;

b. Suggest suitable building project for pipelines, electric wiring, air pipes, cooling cycle water etc;

c. Keep the clients be informed of the production status;
AFTER SALE a. Send engineers to overseas for installation ,commissioning and training;

b. Supply extruding products' material formula, recommend excellent supplier of the raw material per clients' requests;

c. Offer help if any need from clients like spare parts need etc;

d. Supply necessary technical support at request;


Why choose YAOAN MACHINERY?

1. Profession: YAOAN only make plastic extruder since 1980s, extensive experience and professional team ensure our leading position in plastic extruder industry.

2. Quality: The quality of products is footstone of enterprise's constant development, always endeavoring to do still better, quality comes first, developing & innovative is our responsibilities;

3. Delivery: We optimize factory management, and improve production flow so as to shorten production period for you in biggest extent;

4. Cost control: We do best to lower down production cost by our inner management improvement, so as to ensure that our products are competitive enough in market, and to realize higher performance-price ratio of our products.



FAQ

Q1: What is the guarantee of the machine?
A1: The guarantee period of our machine is 12 months after the machine is installed well in buyer's factory;

Q2: What package do you use for the machine?
A2: Painted the machine with anti-corrosion oil, and then covered with plastic film, and then packed into wooden case or fixed onto wooden pallet as per clients' requirements, or shall be loaded into container with film packing. After fixed all machines, we will use drying agent to keep container inside dry.

Q3: Do you have instruction manual to guide us if i buy the machine?
A3: Yes, we supply detailed user manual for your reference. PLS read it carefully for guide. If there is still problem which could not be solved, PLS contact us, we are ready to help you anytime.

Q4: What is your service to overseas clients?
A4: We supply perfect overseas service. We shall send engineers to overseas for machine installation and commissioning and test production guide, and also training to the workers of the buyer. And we are ready to give technical support anytime.
