AF-45mm PVC PE EVA Plastic Medical Corrugated Tube Extrusion Machine

AF-45mm PVC PE EVA Plastic Medical Corrugated Tube Extrusion Machine

    • AF-45mm PVC PE EVA Plastic Medical Corrugated Tube Extrusion Machine
    • AF-45mm PVC PE EVA Plastic Medical Corrugated Tube Extrusion Machine
    • AF-45mm PVC PE EVA Plastic Medical Corrugated Tube Extrusion Machine
    • AF-45mm PVC PE EVA Plastic Medical Corrugated Tube Extrusion Machine
    • AF-45mm PVC PE EVA Plastic Medical Corrugated Tube Extrusion Machine
  • AF-45mm PVC PE EVA Plastic Medical Corrugated Tube Extrusion Machine

    Product Details:

    Place of Origin: CHINA
    Brand Name: YAOAN
    Certification: CE
    Model Number: AF-45

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: WOODEN BOX
    Delivery Time: 40 DAYS
    Payment Terms: TT,LC
    Supply Ability: 100 SETS PER MONTH
    Contact Now
    Detailed Product Description
    Output: 10-30kg/hr Material: PVC PE EVA Resins
    Automatic Grade: Fully Automatic Screw Dia.: 45mm
    Screw L/D: 28:1 Cutting Method: Automatic

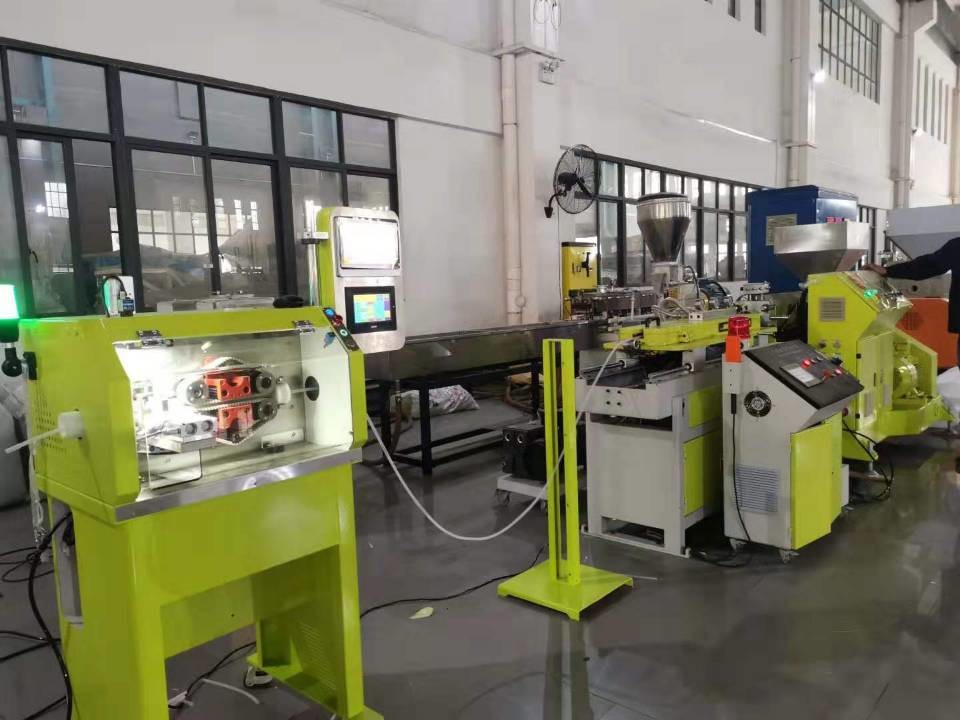

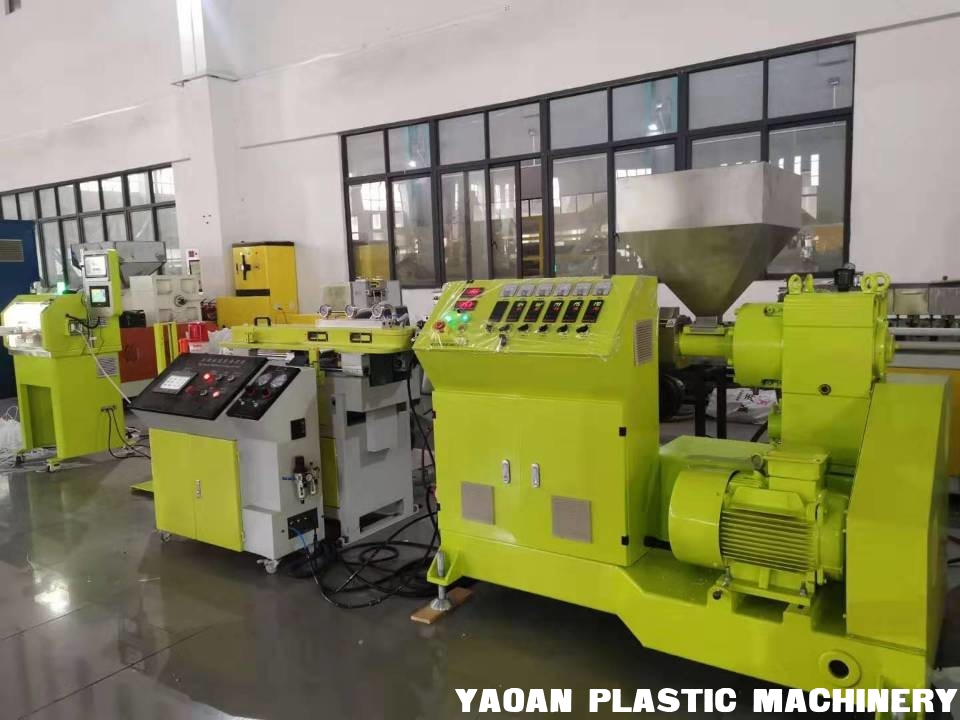

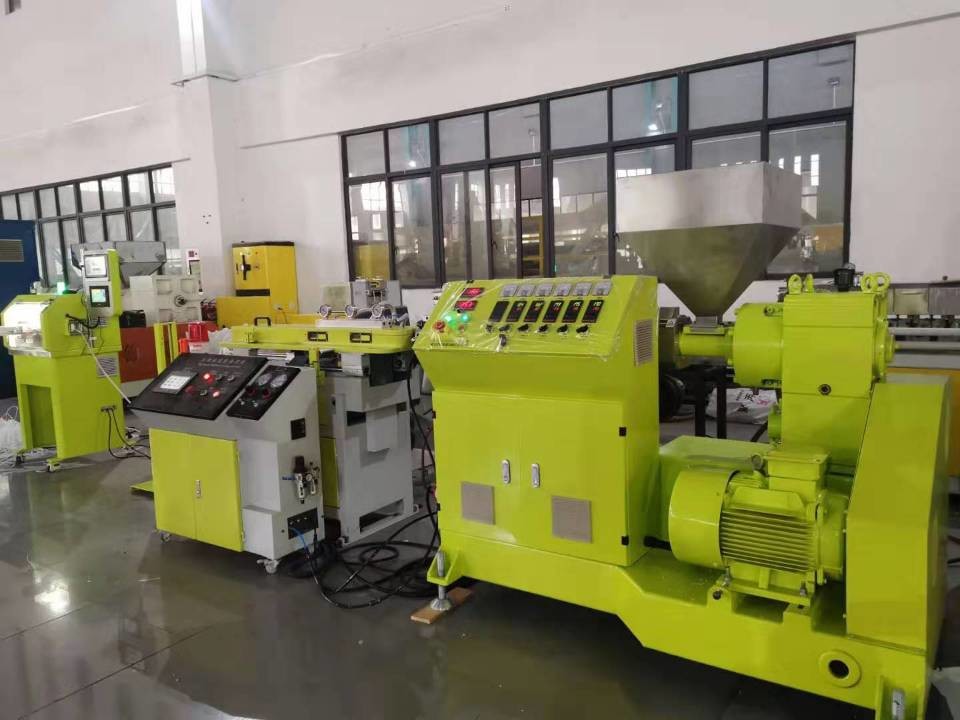

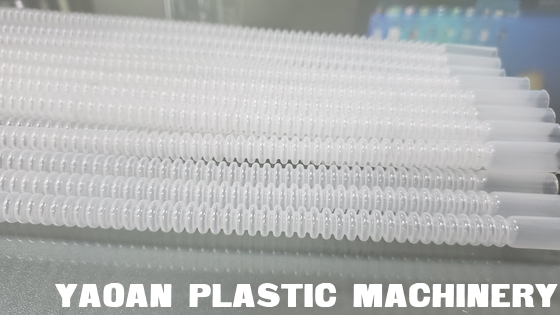

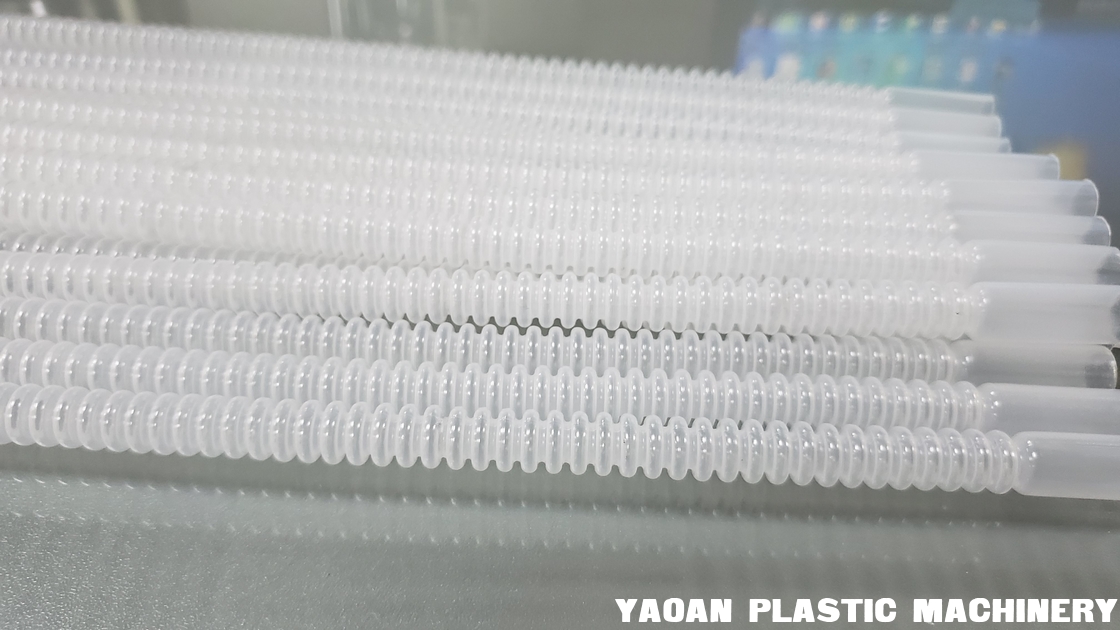

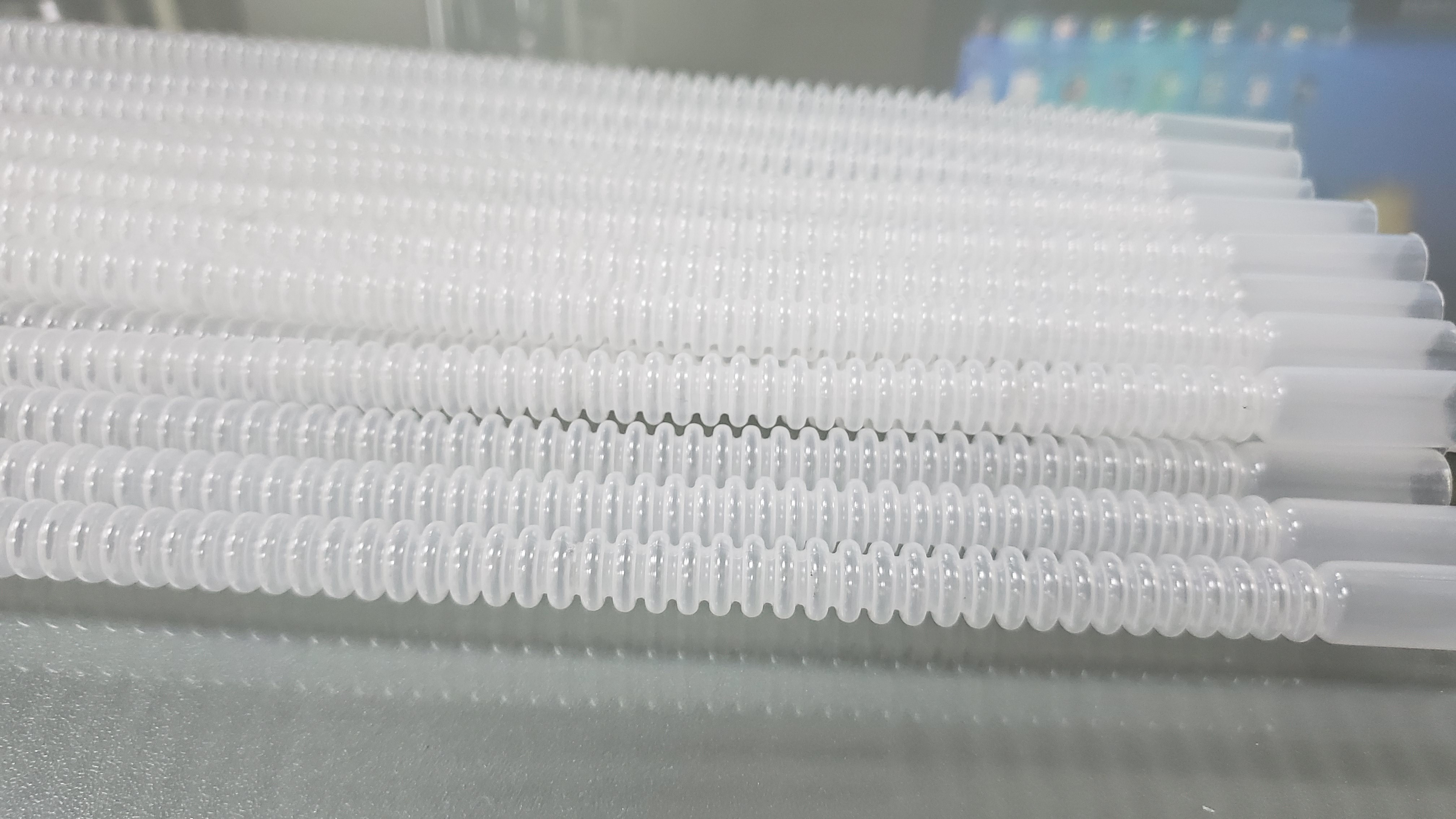

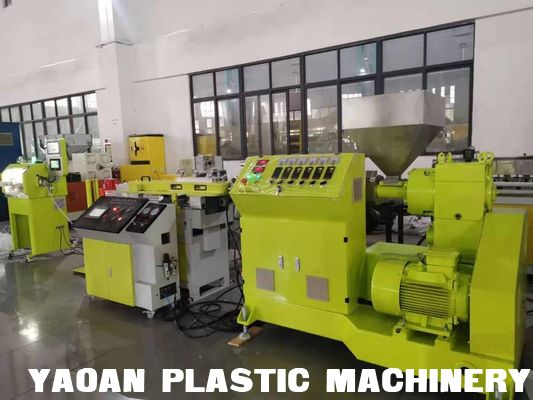

    PVC PE EVA Plastic Medical Corrugated Tube Extrusion Machine

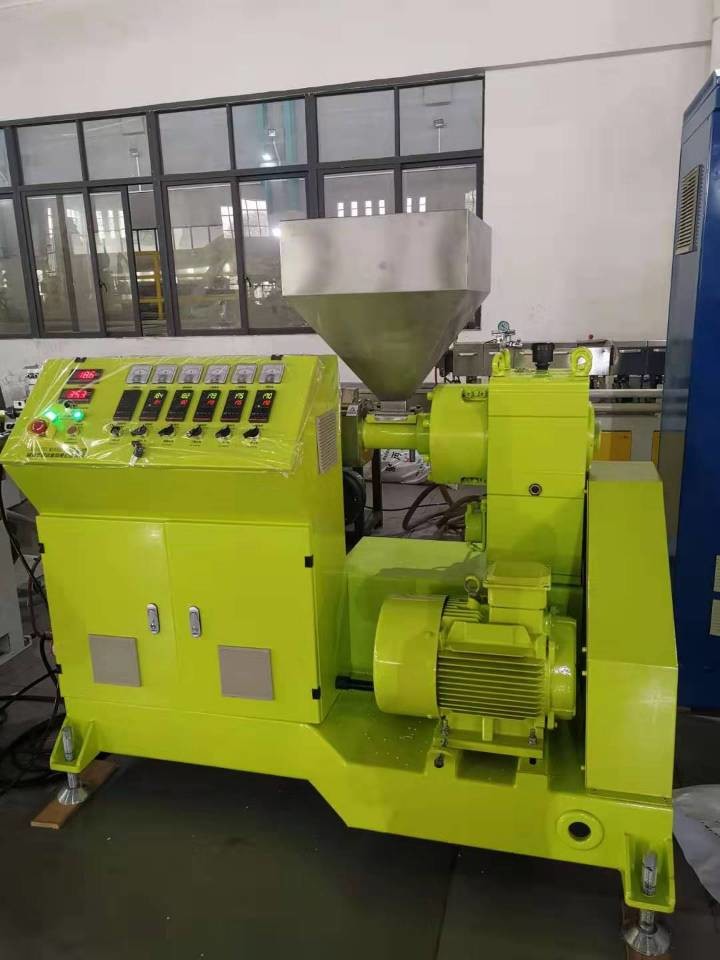

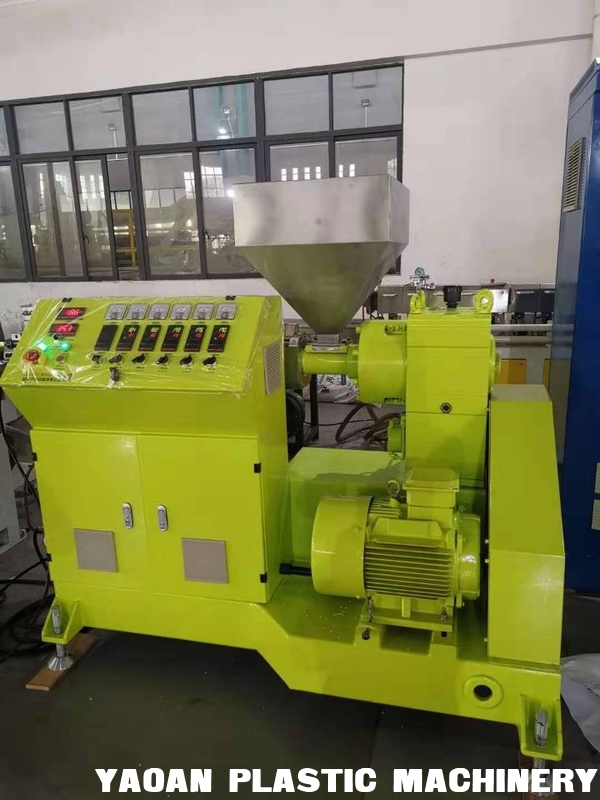

    1. 45mm single screw extruder

    a: Screw:

    —Material: high strength nitride alloy steel(38CrMoALA),high precision special screw

    —Diameter: 45MM

    —L/D: 28:1

    —Compression ratio: 3.0

    —Surface treatment: Mirror Polishing

    b: Barrel

    —Material: high strength nitride alloy steel (38CrMoALA)

    —Inner Surface Treatment: nitriding, polishing

    —Heat Control: 5 zones

    —Heat Removal: 3 zones

    —Cooling system: Multi-blades high efficiency cooling fan with low noise

    —Wind Cover’s Material: SUS304 stainless steel

    C:Gear Reducer

    —Precision special reducer

    —Materials: alloy steel (40CrMnMo)

    —Gear: helical gear

    —Shaft: 40 Cr

    d: Control system

    —Japan OMRON temperature controller

    —Drived by Japan FUJI AC frequency converter

    —GUANGDONG JIANGSHENG motor

    —Drive power:11KW

    —Taiwan Yangming solid state relay

    —High efficiency Heater

    2. Head & Die

    —High precision head, 1 set

    —High precision die, 1 set

    3. Pipe corrugator

    —Motor power: 2.2kw

    —Controlled by Japan FUJI frequency converter

    —Guangdong JIANGSHENG motor

    —Air cooling slide block and slideway

    —Worm gear reducer

    —Gear drive

    —1 set of mould for corrugated pipe

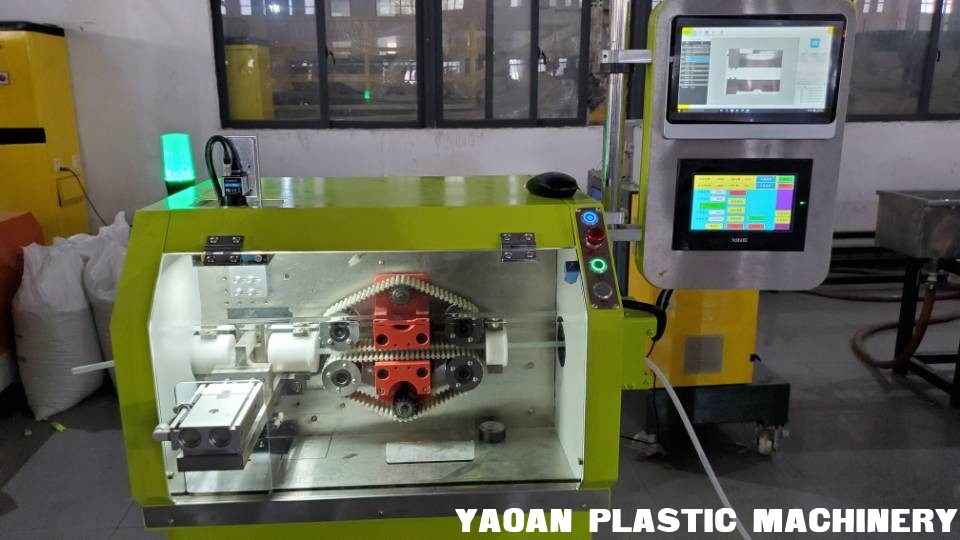

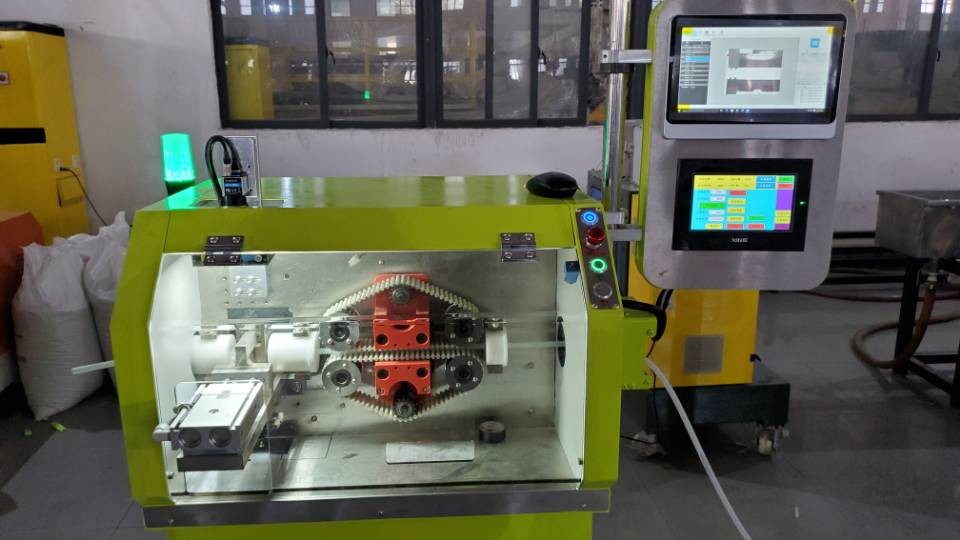

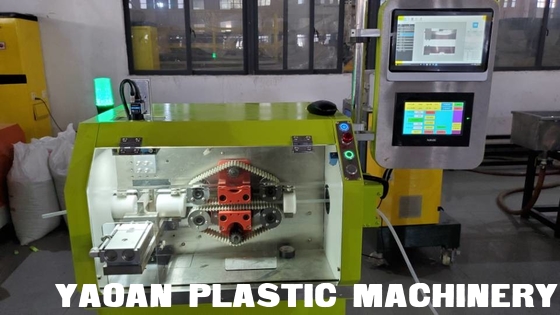

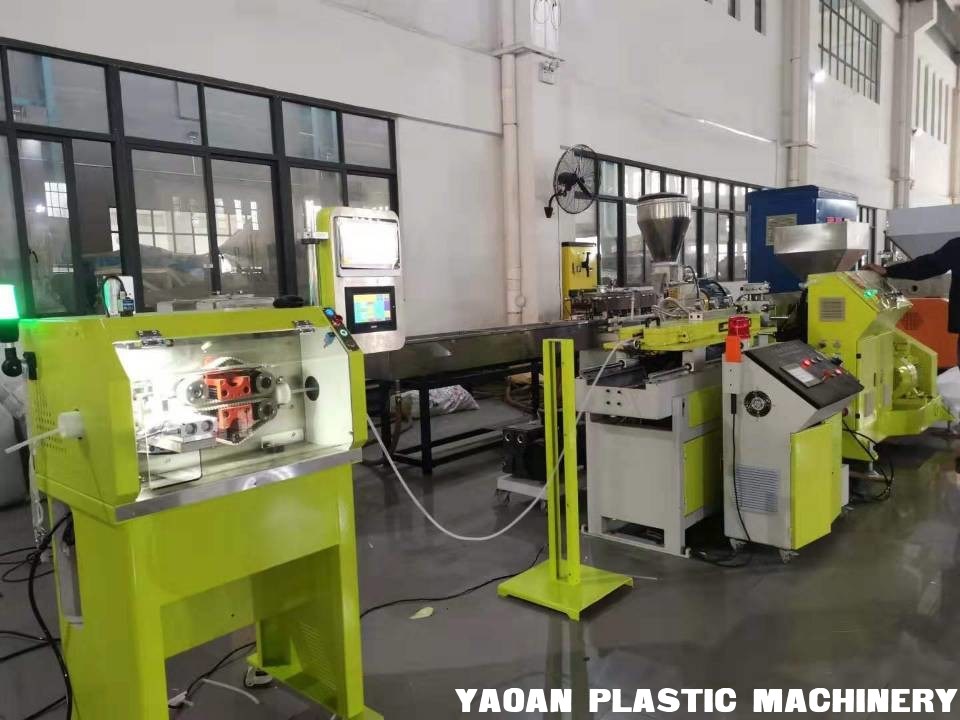

    4.Corrugatede tube cutter

    corrugated tube cutter is desgined by YAOAN. The series is ideal for cutting corrugated tubes

    with diameters ranging from 5 to 30 mm. The proper cutting of corrugated tubes is essential to protect cables and wiring harness.

    These coverings needed to be cut with accuracy to avoid the formation of sharp cut edges to prevent damage to the cables.
    The series provides precise cutting on the crest and short cutting times. It delivers a quick system change for all the guides and is supplied with a belt-feeding.

    AF-45mm PVC PE EVA Plastic Medical Corrugated Tube Extrusion Machine

    AF-45mm PVC PE EVA Plastic Medical Corrugated Tube Extrusion Machine

    AF-45mm PVC PE EVA Plastic Medical Corrugated Tube Extrusion Machine

    AF-45mm PVC PE EVA Plastic Medical Corrugated Tube Extrusion Machine



    Packaging and shipping

    PACKAGING plastic film + stretch film + wooden case + drying agent.
    DELIVERY About 90 days (all new parts)
    SHIPPING We place and fix the machines well into container and check carefully before closing the container so as to ensure everything is ok for the shipment. (Use steel wire to fix machine and drying agent).
    We care each and every point so that our clients could receive the machines in perfect situation.

    What is our service system?

    PRE-SALE a. Detailed machine introduction;
    b. Suggest suitable turnkey solution as per clients requirements;
    c. Provide test production for reference;
    IN PRODUCTION a. Supply layout drawing to clients for preparation;
    b. Suggest suitable building project for pipelines, electric wiring, air pipes, cooling cycle water etc;
    c. Keep the clients be informed of the production status;
    AFTER SALE a. Send engineers to overseas for installation ,commissioning and training;
    b. Supply extruding products' material formula, recommend excellent supplier of the raw material per clients' requests;
    c. Offer help if any need from clients like spare parts need etc;
    d. Supply necessary technical support at request;

    Why choose YAOAN MACHINERY?
    1. Profession: YAOAN only make plastic extruder since 1980s, extensive experience and professional team ensure our leading position in plastic extruder industry.
    2. Quality: The quality of products is footstone of enterprise's constant development, always endeavoring to do still better, quality comes first, developing & innovative is our responsibilities;
    3. Delivery: We optimize factory management, and improve production flow so as to shorten production period for you in biggest extent;
    4. Cost control: We do best to lower down production cost by our inner management improvement, so as to ensure that our products are competitive enough in market, and to realize higher performance-price ratio of our products.

    FAQ
    Q1: What is the guarantee of the machine?
    A1: The guarantee period of our machine is 12 months after the machine is installed well in buyer's factory;

    Q2: What package do you use for the machine?
    A2: Painted the machine with anti-corrosion oil, and then covered with plastic film, and then packed into wooden case or fixed onto wooden pallet as per clients' requirements, or shall be loaded into container with film packing. After fixed all machines, we will use drying agent to keep container inside dry.

    Q3: Do you have instruction manual to guide us if i buy the machine?
    A3: Yes, we supply detailed user manual for your reference. PLS read it carefully for guide. If there is still problem which could not be solved, PLS contact us, we are ready to help you anytime.

    Q4: What is your service to overseas clients?
    A4: We supply perfect overseas service. We shall send engineers to overseas for machine installation and commissioning and test production guide, and also training to the workers of the buyer. And we are ready to give technical support anytime.
