High - Pressure Gas Hose , Water Delivery Network Hose Extrusion Machine , Low Temperature Resisting

Basic Information
Place of Origin: CHINA
Brand Name: YAOAN
Certification: CE
Model Number: 65
Minimum Order Quantity: 1
Packaging Details: WOODEN BOX
Delivery Time: 30-90 DAYS
Payment Terms: TT,LC
Supply Ability: 100 SETS PER MONTH
Contact Now
Plastic Processed: PVC Application: Pipe
Screw Design: Single-screw Motor: Siemens
Inveter: ABB Warranty: 1 Year

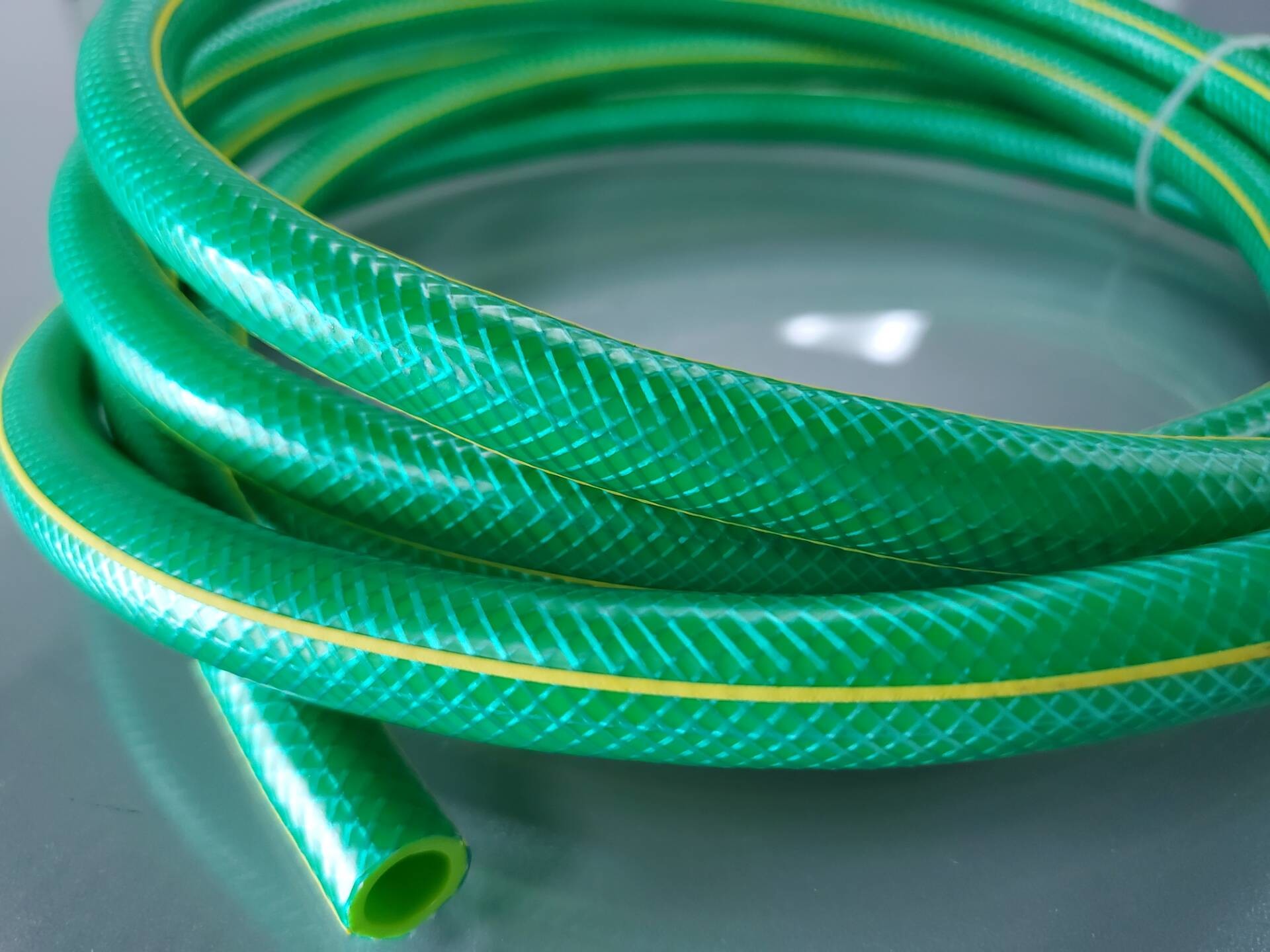

High-pressure Gas Hose , Water Delivery Network Hose Extrusion Machine , Low Temperature Resisting

Applications:

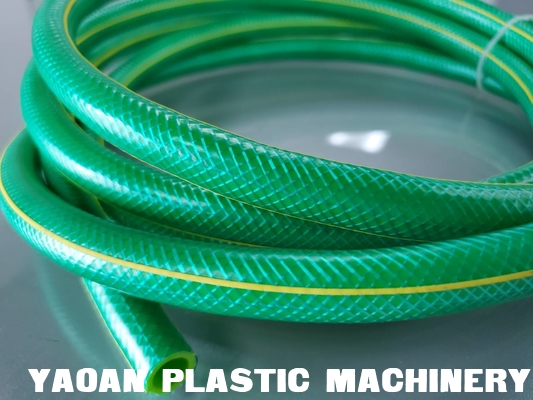

The product is applied to pneumatic devices, liquid and gas flushing devices,especially applicable to maintenance of compressor, engine parts andmachineries, and pneumatic hammer hose in civil engineering and transfer ofother industrial gases.

Features:

1. adopt self-developed PVC colloidal particle and carry out industry-grade treatment to produce congeneric products varied from other products in the market.

2.Bright appearance;

3.The product is characterized in resistance to high pressure, low temperature, aging and abrasion, and resilience flexibility.

4.Working temperature is ranged from -10 Celsius degrees to +70 Celsius degrees.

Process flows:

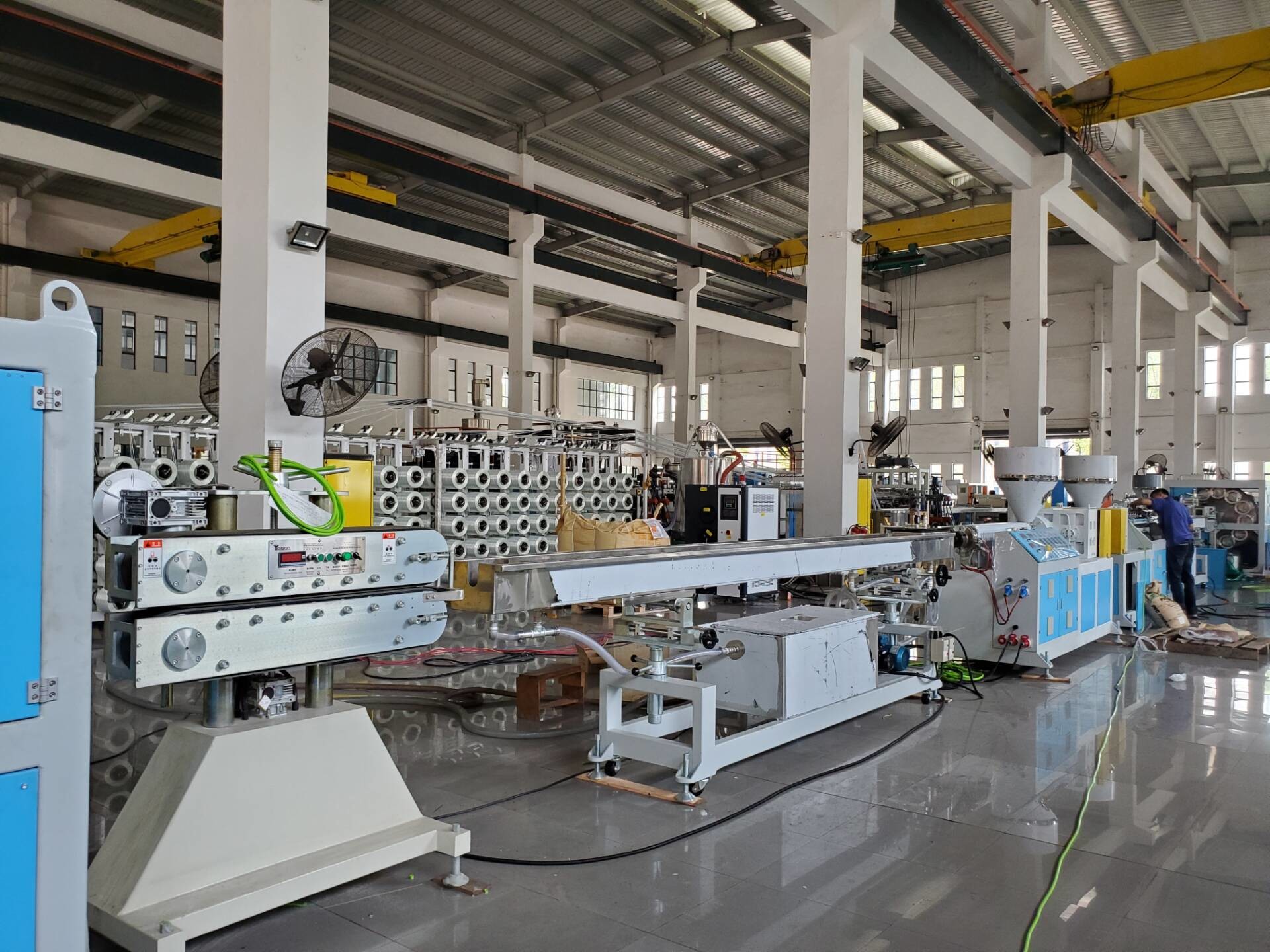

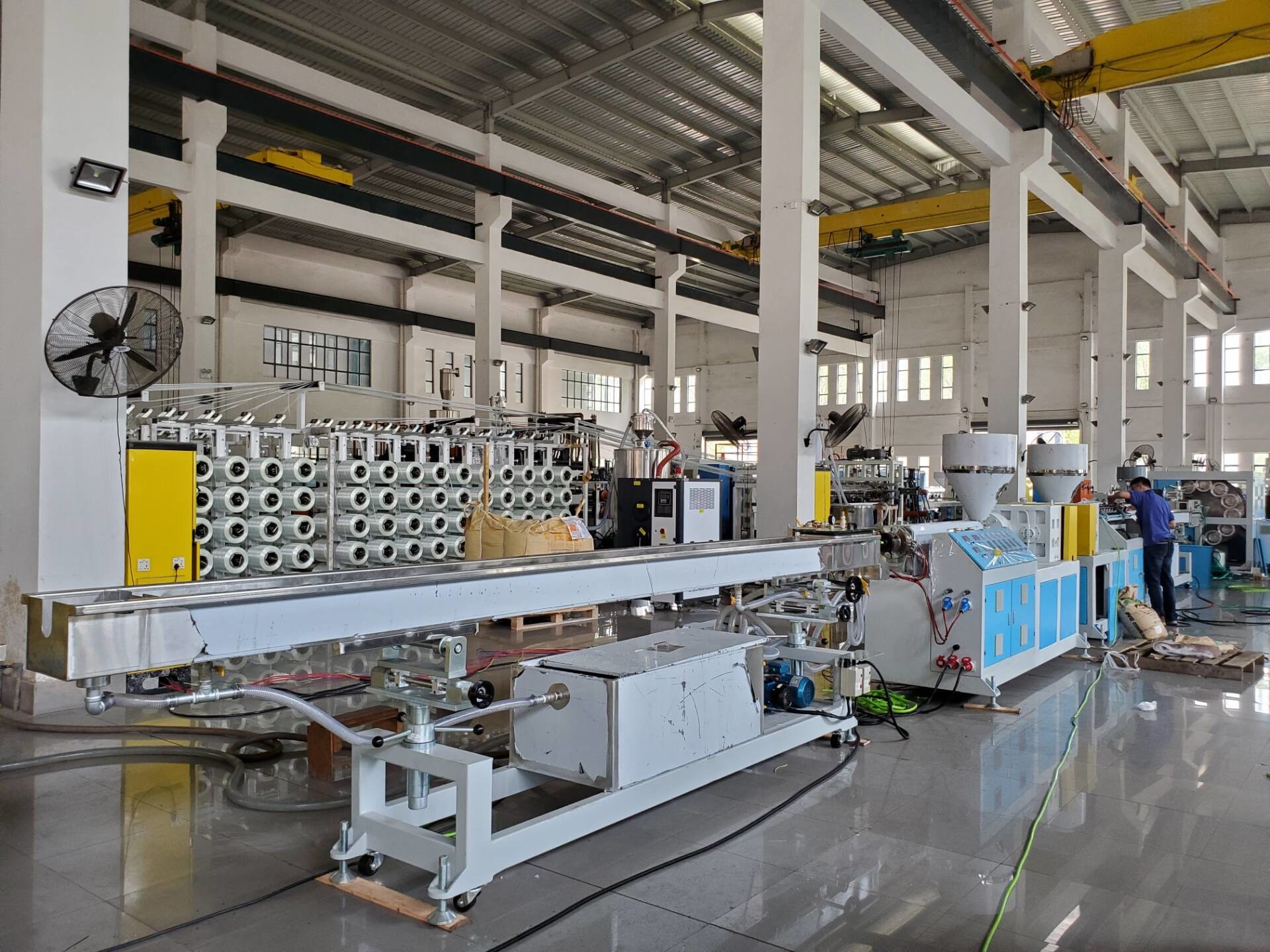

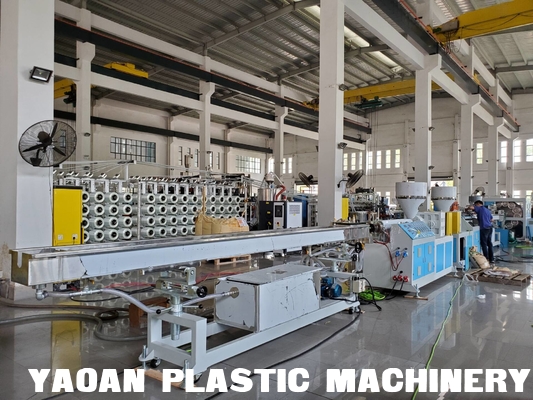

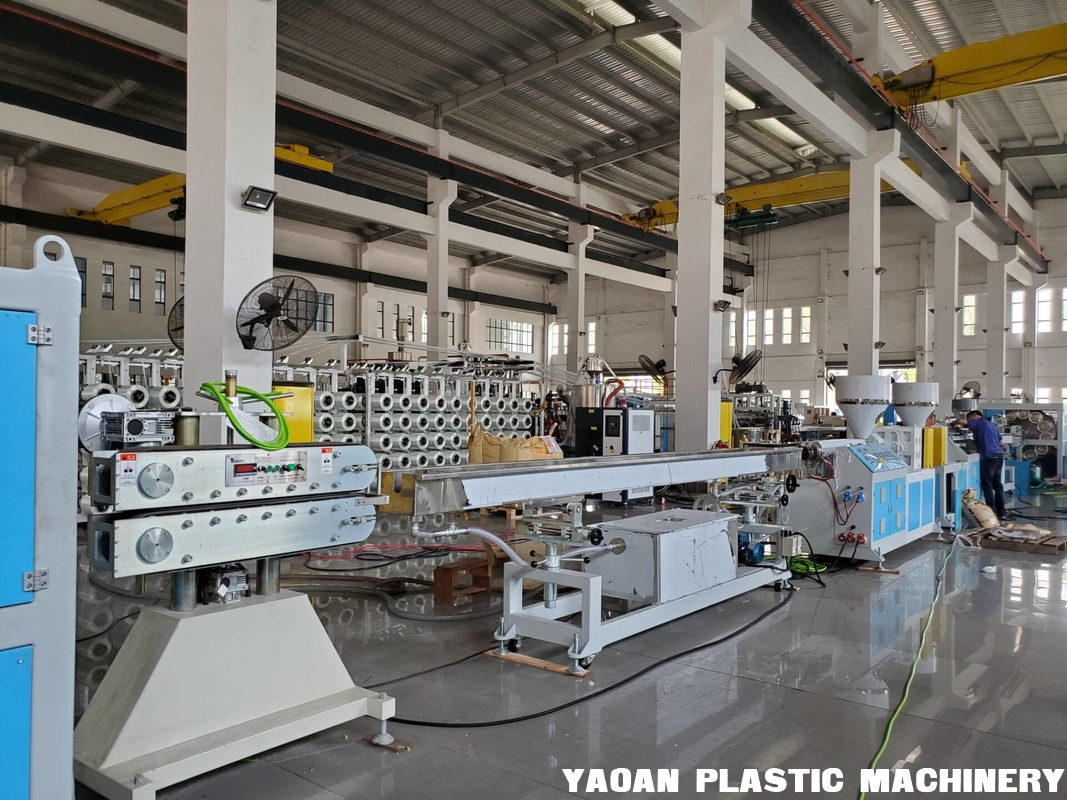

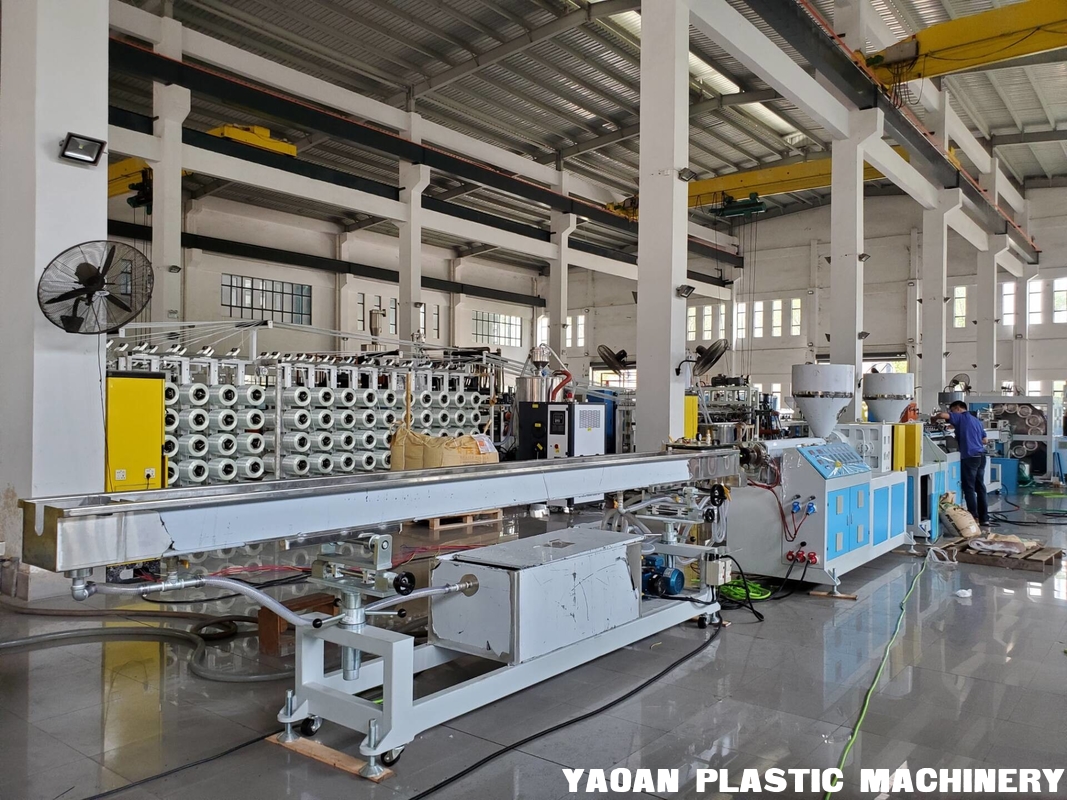

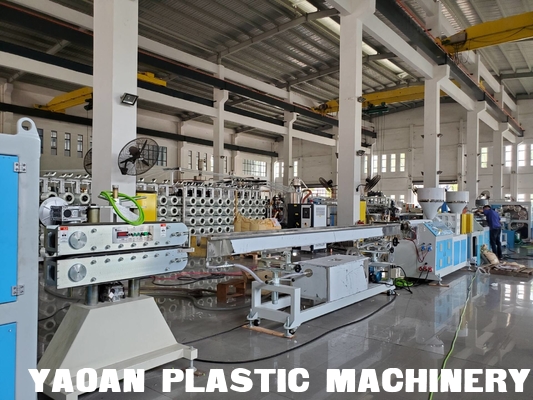

SJ-Single Screw Extruder--Water Cooling Tank--Hauling off Machine--Fiber Winding Machine--SJ-Single Screw Extruder--Water Cooling Tank--Hauling off Machine--Twin Position Coiler



This pvc hose pipe machine Line Consists of:

Item Description Data
1 Single Screw Extruder 2 sets
  Screw and Barrel Material 38CrMoAlA
  Treatment of Screw and Barrel Surface Nitriding
  Heating Mode of Screw Barrel Cast-aluminium Heating Circles
  Cooling Mode of Barrel Air Blower
  Main Motor Power Speed Adjusting Japan Omron Frequency Inverter
  Gearbox Reducer Hardening Gear Surface, Low Noise
2 Die Head 1 set or According to Customer’s Need
  Specification 5-50mm

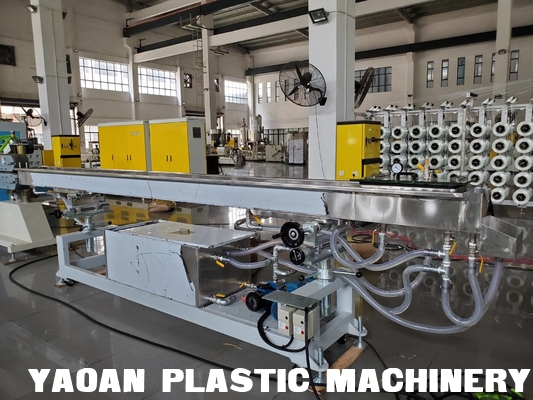

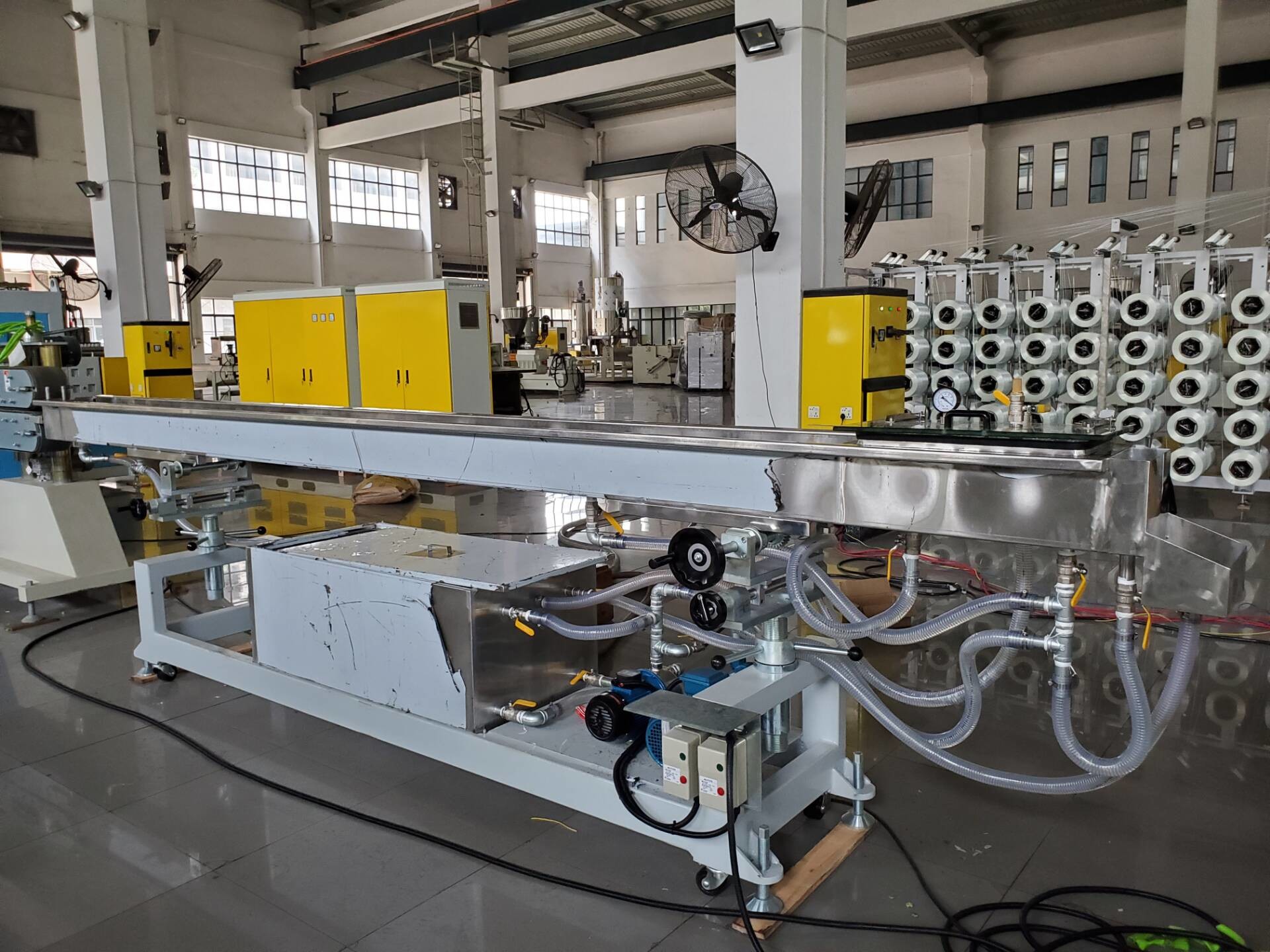

3 Water Cooling Tanks 2 sets
  Tank Material Excellent Stainless Steel
  Tank Length 2000-3000mm
  Tank Thickness 3mm
  Water Pump 2 sets

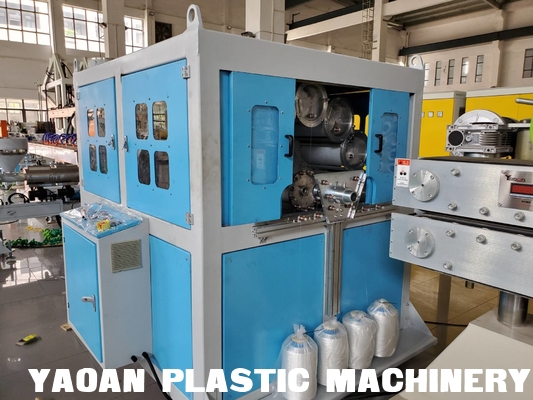

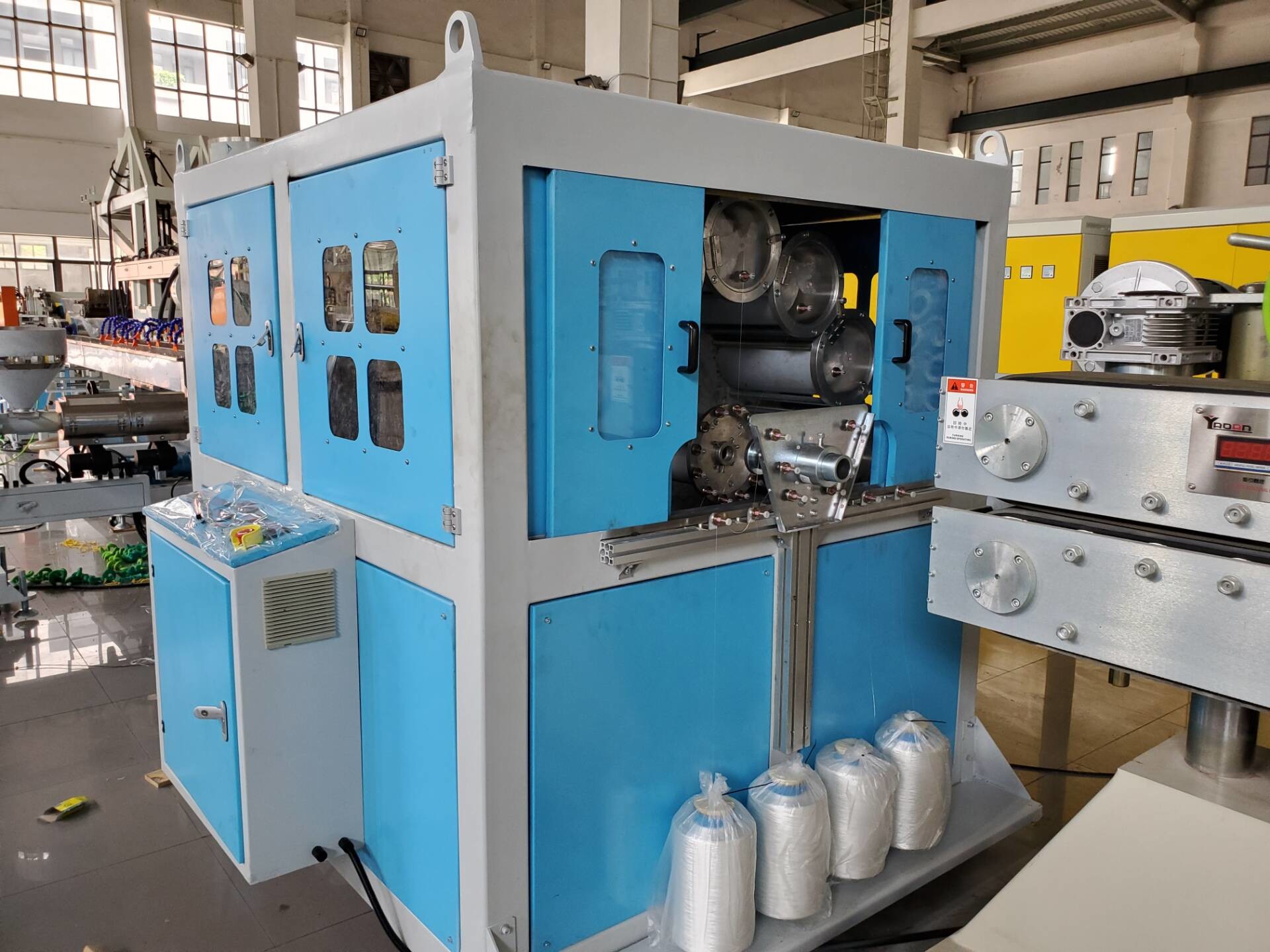

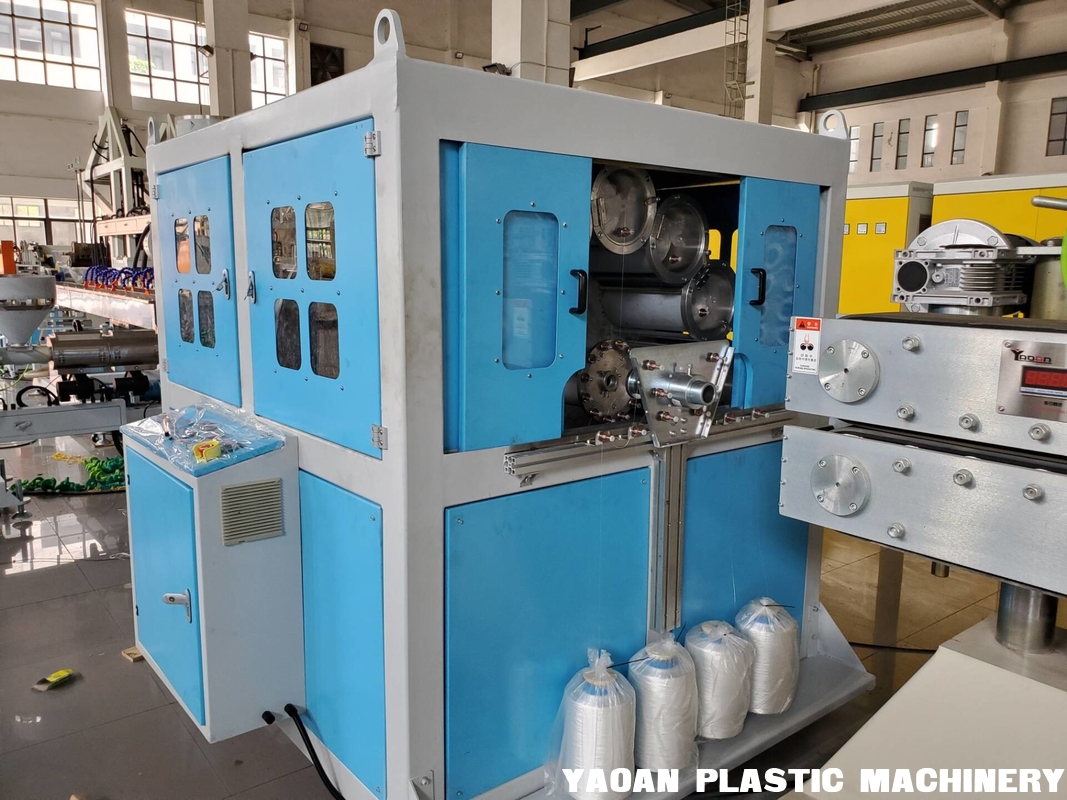

4 Fiber Winding Machine 1 set
  Motor 2.2KW
  Speed Adjusting Mode Japan Omron Inverter
5 Hauling off Machine 2 sets
  Motor Power 1.5kw*2
  No.of Belt 2 *2 sets
  Speed Control Japan Omron Inverter
5 Twin Position Coiler 1 set
6 Main Electrical Components Omron, ABB, Schneider, Delix, Simens etc.

Torque Motor

2.5-6KN/m

High - Pressure Gas Hose , Water Delivery Network Hose Extrusion Machine , Low Temperature Resisting

High - Pressure Gas Hose , Water Delivery Network Hose Extrusion Machine , Low Temperature Resisting

High - Pressure Gas Hose , Water Delivery Network Hose Extrusion Machine , Low Temperature Resisting

High - Pressure Gas Hose , Water Delivery Network Hose Extrusion Machine , Low Temperature Resisting

Why choose YAOAN MACHINERY?
1. Profession: YAOAN only make plastic extruder since 1980s, extensive experience and professional team ensure our leading position in plastic extruder industry.
2. Quality: The quality of products is footstone of enterprise's constant development, always endeavoring to do still better, quality comes first, developing & innovative is our responsibilities;
3. Delivery: We optimize factory management, and improve production flow so as to shorten production period for you in biggest extent;
4. Cost control: We do best to lower down production cost by our inner management improvement, so as to ensure that our products are competitive enough in market, and to realize higher performance-price ratio of our products.
FAQ
Q1: What is the guarantee of the machine?
A1: The guarantee period of our machine is 12 months after the machine is installed well in buyer's factory;
Q2: What package do you use for the machine?
A2: Painted the machine with anti-corrosion oil, and then covered with plastic film, and then packed into wooden case or fixed onto wooden pallet as per clients' requirements, or shall be loaded into container with film packing. After fixed all machines, we will use drying agent to keep container inside dry.
Q3: Do you have instruction manual to guide us if i buy the machine?
A3: Yes, we supply detailed user manual for your reference. PLS read it carefully for guide. If there is still problem which could not be solved, PLS contact us, we are ready to help you anytime.
Q4: What is your service to overseas clients?
A4: We supply perfect overseas service. We shall send engineers to overseas for machine installation and commissioning and test production guide, and also training to the workers of the buyer. And we are ready to give technical support anytime.
