POM Pipe Production Line, Professional POM Pipe Extrusion Machine

Basic Information
Place of Origin: CHINA
Brand Name: YAOAN
Certification: CE
Model Number: 80MM
Minimum Order Quantity: 1
Packaging Details: WOODEN BOX
Delivery Time: 30-90 DAYS
Payment Terms: TT,LC, Western Union
Supply Ability: 100 SETS PER MONTH
Contact Now

POM Pipe Production Line, Professional POM Pipe Extrusion Machine


Application:
Widely used in industrial machinery parts ,electronics ,toys ,footwear and other industries

Technical parameter:
S.NDescriptionQty
1

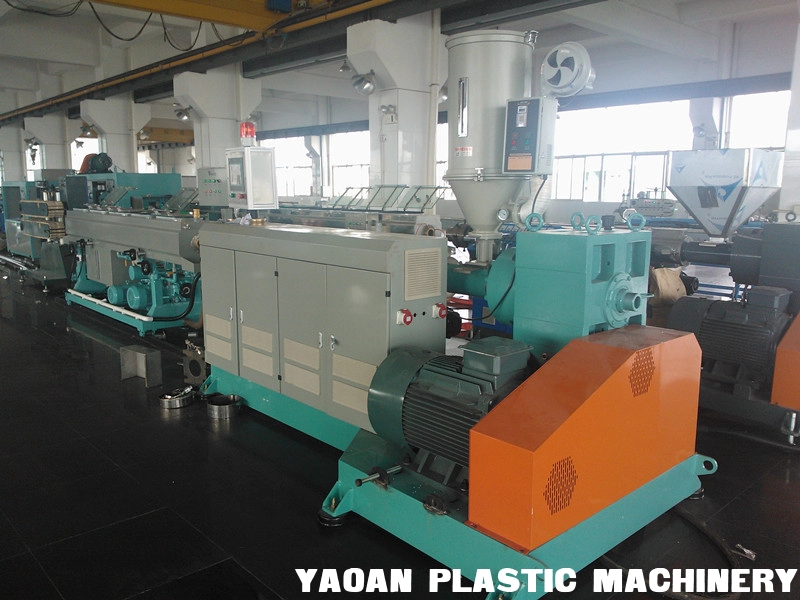

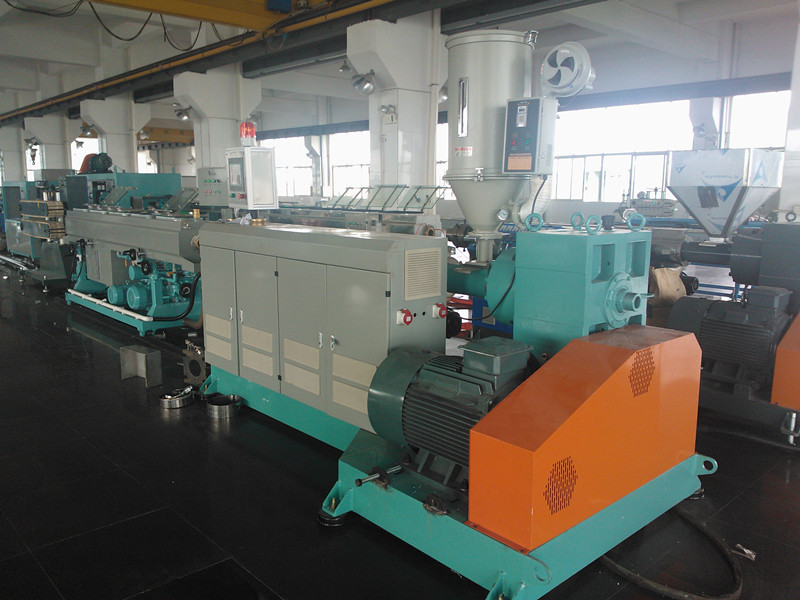

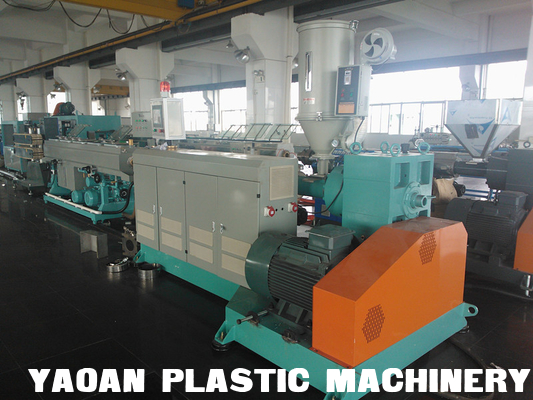

SJZ80/34 Single- screw extruder: one set
Screw dia: 80mm
Screw L/D:34:1
Screw type: special screw
Screw diameter: φ80mm,LD:34:1;Material: made of high quality nitride 38CrMoAIA,and are nitration austerely according to NATIONAL STANDARD, nitration hardness:850-950HV;
Barrel: made of high quality nitride steel-38CrMoAI, nitration hardness:950-1050HV;
Main motor power: 110KW
Heater zone: 8 zones
Hopper dyer: one set
Automatic feeding system: one set


1 set
2

POM Extrusion mould:
Mould body: 1 set
Sizing sleeve: copper
φ152mm, φ177mm
Wall thickness: 12mm


1 set
3

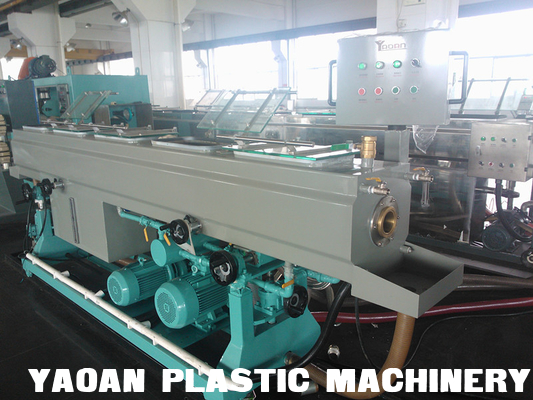

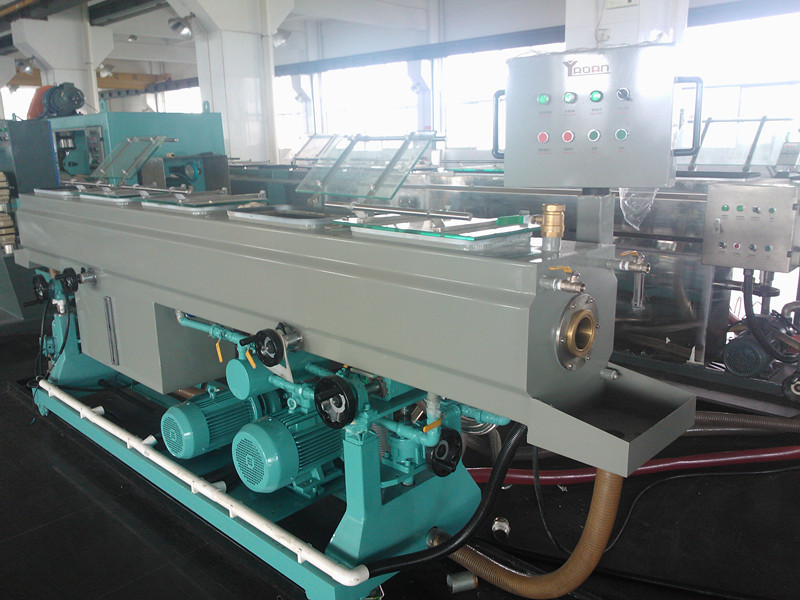

AFP-250 Vacuum Water Cooling Tank
effective vacuum length:6000mm
center height:1050mm±50mm
up and down movement distance±50mm
left and right movement distance±50mm
vacuum pump power:5.5KwX2
water pump power:4.0KwX2
forward and backward movement distance 600mm
forward and backward motor power:1.5KW
Equipped with water level and waer temperature automatic monitoring system
Water tank body adopts stainless steel


1 set
4

AFP-250 Water Spraying Cooling Tank
effective vacuum length:6000mm
water pump power:4.0KwX1
Water tank body adopts stainless steel


1 set
5

AFP-250 Four Pedrails Haul-off Machine
main motor power:4kw*2 (Inverter control for speed)
suitable pipe rangeФ50-250mm
the bottom pedrail is controlled by a motor for up & down lift, motor power: 0.75kw
the upper pedrail is controlled by pneumatic for up & down lift


1 set
6

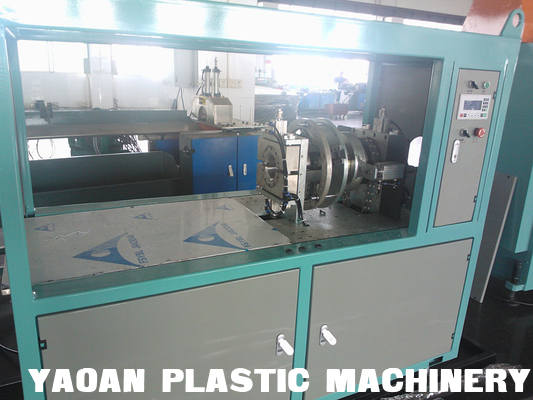

AFP-250 Dustless Saw cutting machine
Cutting blade: knife cutting
Rotary motor power:2.2kW
suitable pipe range:Ф50-250mm
Cutting knife is controlled by pneumatic


1 set
7

AFP-250 Stacking unit
Effective length:3000mm


1 set

Our Advantages:


1.With special design to the screw ,makes the raw materials reach the good plasticizing and mixin effect
2.Bright and uniform finished product with automatic tempreature control
3.Frequency inverter control
4.High efficiency and energy saving
5.Automatic fixed-length cutting ,easy to operator

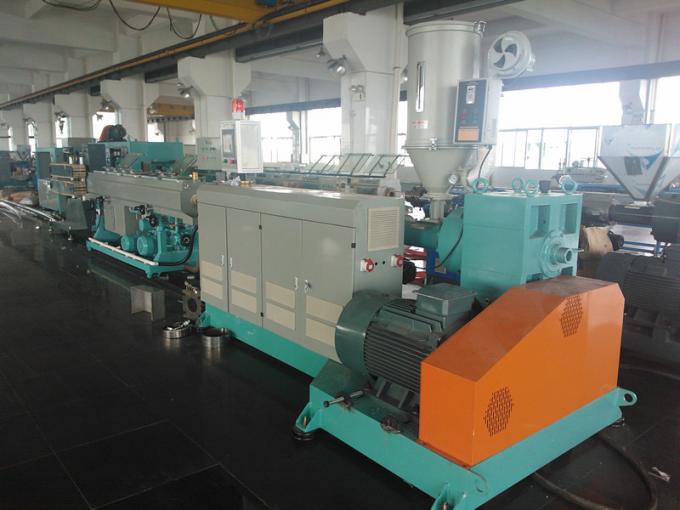

POM Pipe Production Line, Professional POM Pipe Extrusion Machine
