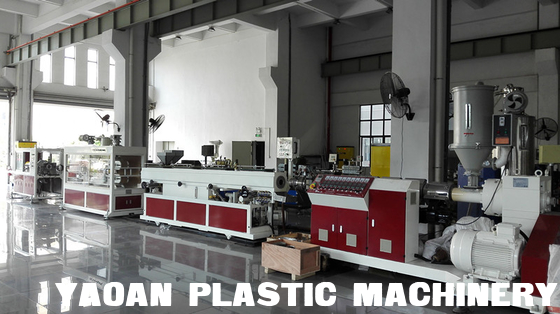

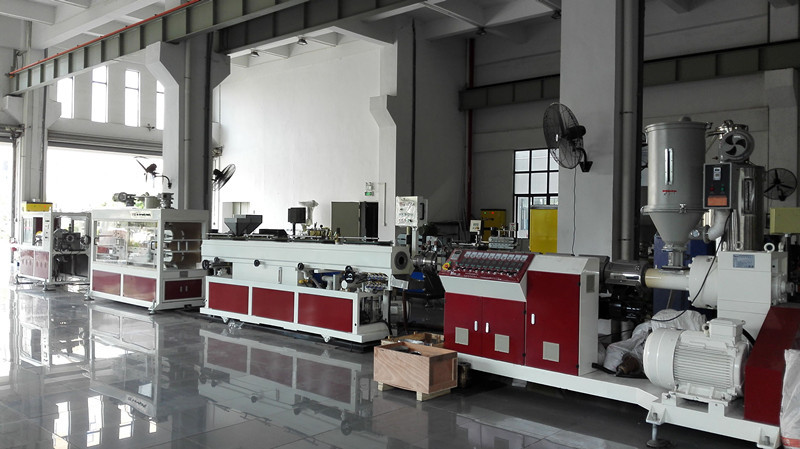

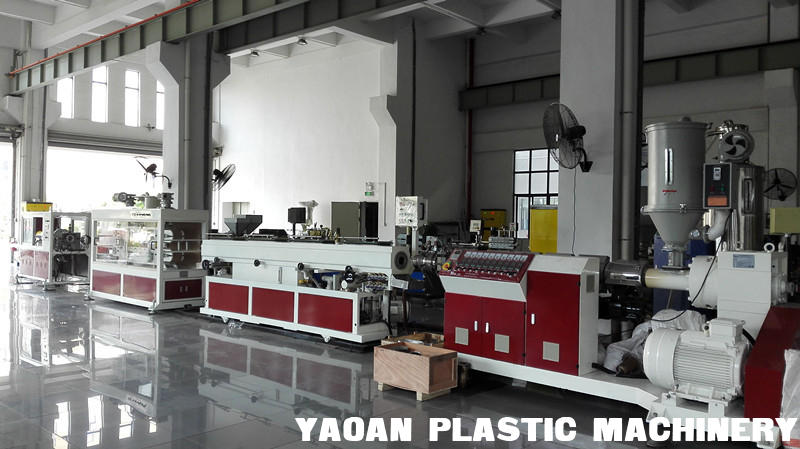

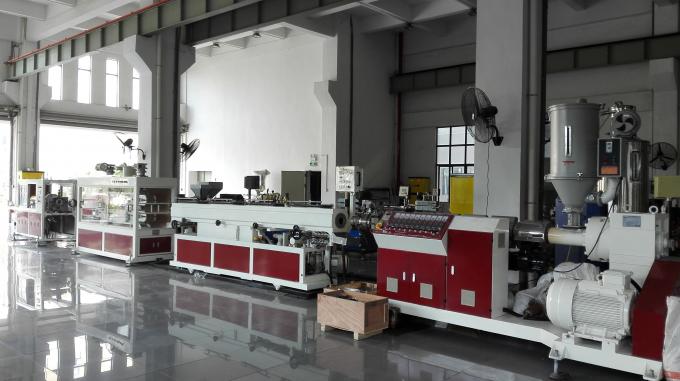

AF-80 POM Pipe Production Line, Professional POM Pipe Extrusion Machine

AF-80 POM Pipe Production Line, Professional POM Pipe Extrusion Machine

    • AF-80 POM Pipe Production Line, Professional POM Pipe Extrusion Machine
    • AF-80 POM Pipe Production Line, Professional POM Pipe Extrusion Machine
    • AF-80 POM Pipe Production Line, Professional POM Pipe Extrusion Machine
  • AF-80 POM Pipe Production Line, Professional POM Pipe Extrusion Machine

    Product Details:

    Place of Origin: CHINA
    Brand Name: YAOAN
    Certification: CE
    Model Number: 80MM

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: WOODEN BOX
    Delivery Time: 30-90 DAYS
    Payment Terms: TT,LC
    Supply Ability: 100 SETS PER MONTH
    Contact Now
    Detailed Product Description
    Raw Material: POM Resins Screw: 80mm
    LD: 34:1 Motor Power: 110kw
    Capacity: 200kg/hr Warranty: 1 Year

    AF-80 POM Pipe Production Line, Professional POM Pipe Extrusion Machine


    Our Advantages:


    1.With special design to the screw ,makes  the raw materials reach the good plasticizing and mixin effect
    2.Bright and uniform finished product with automatic tempreature control
    3.Frequency inverter control
    4.High efficiency and energy saving
    5.Automatic fixed-length cutting ,easy to operator

    Technical parameter:


    S.NDescriptionQty
    1

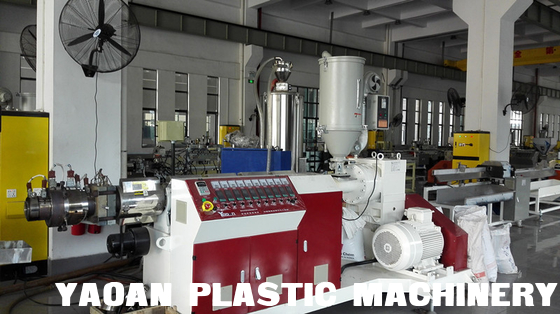

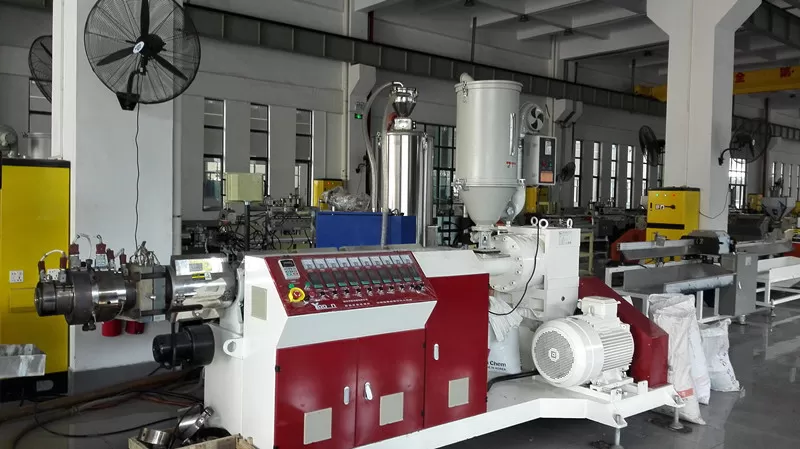

    SJZ80/34 Single- screw extruder: one set
    Screw dia: 80mm
    Screw L/D:34:1
    Screw type: special screw
    Screw diameter: φ80mm,LD:34:1;Material: made of high quality nitride 38CrMoAIA,and are nitration austerely according to NATIONAL STANDARD, nitration hardness:850-950HV;
    Barrel: made of high quality nitride steel-38CrMoAI, nitration hardness:950-1050HV;
    Main motor power: 110KW
    Heater zone: 8 zones
    Hopper dyer: one set
    Automatic feeding system: one set


    1 set
    2

    POM Extrusion mould:
    Mould body: 1 set
    Sizing sleeve: copper
    φ152mm, φ177mm
    Wall thickness: 12mm


    1 set
    3

    AFP-250 Vacuum Water Cooling Tank
    effective vacuum length:6000mm
    center height:1050mm±50mm
    up and down movement distance±50mm
    left and right movement distance±50mm
    vacuum pump power:5.5KwX2
    water pump power:4.0KwX2
    forward and backward movement distance 600mm
    forward and backward motor power:1.5KW
    Equipped with water level and waer temperature automatic monitoring system
    Water tank body adopts stainless steel


    1 set
    4

    AFP-250 Water Spraying Cooling Tank
    effective vacuum length:6000mm
    water pump power:4.0KwX1
    Water tank body adopts stainless steel


    1 set
    5

    AFP-250 Four Pedrails Haul-off Machine
    main motor power:4kw*2 (Inverter control for speed)
    suitable pipe rangeФ50-250mm
    the bottom pedrail is controlled by a motor for up & down lift, motor power: 0.75kw
    the upper pedrail is controlled by pneumatic for up & down lift


    1 set
    6

    AFP-250 Dustless Saw cutting machine
    Cutting blade: knife cutting
    Rotary motor power:2.2kW
    suitable pipe range:Ф50-250mm
    Cutting knife is controlled by pneumatic


    1 set
    7

    AFP-250 Stacking unit
    Effective length:3000mm


    1 set


    Application:
    Widely used in industrial machinery parts ,electronics ,toys ,footwear and other industries

    AF-80 POM Pipe Production Line, Professional POM Pipe Extrusion Machine
    AF-80 POM Pipe Production Line, Professional POM Pipe Extrusion Machine
