    Product Details:

    Place of Origin: CHINA
    Brand Name: YAOAN
    Certification: CE
    Model Number: 65

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: WOODEN BOX
    Delivery Time: 30-90 DAYS
    Payment Terms: TT,LC
    Supply Ability: 100 SETS PER MONTH
    Contact Now
    Detailed Product Description
    Plastic Processed: PVC Application: Pipe
    Screw Design: Twin-screw Motor: Siemens
    Inverter: ABB Warranty: 1 Year

    PVC ELECTRIC CONDUIT PIPE MAKING MACHINE





    General Introduction:



    This Production Line can produce two pvc electric conduit pipes at one time, which has the diameter range: 16--50mm.

    Electric conduit pipe is popular known as a white hard pvc hose, to prevent corrosion and leakage of electricity.





    The Component Part:



    SJZ-65/132 Connical Twin Screw Extruder + Mould + Vacuum Sizing Water Cooling Tank + Automatic Traction Machine+ Automatic Cutter

    + Stacker

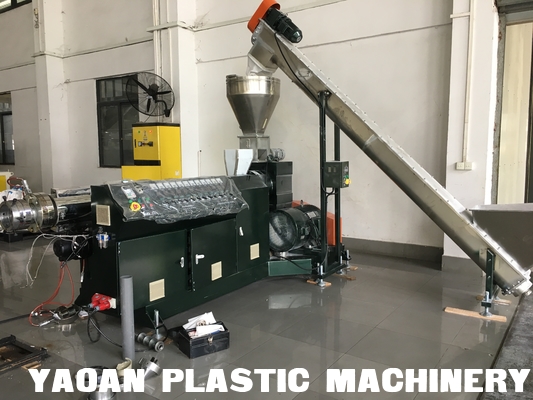

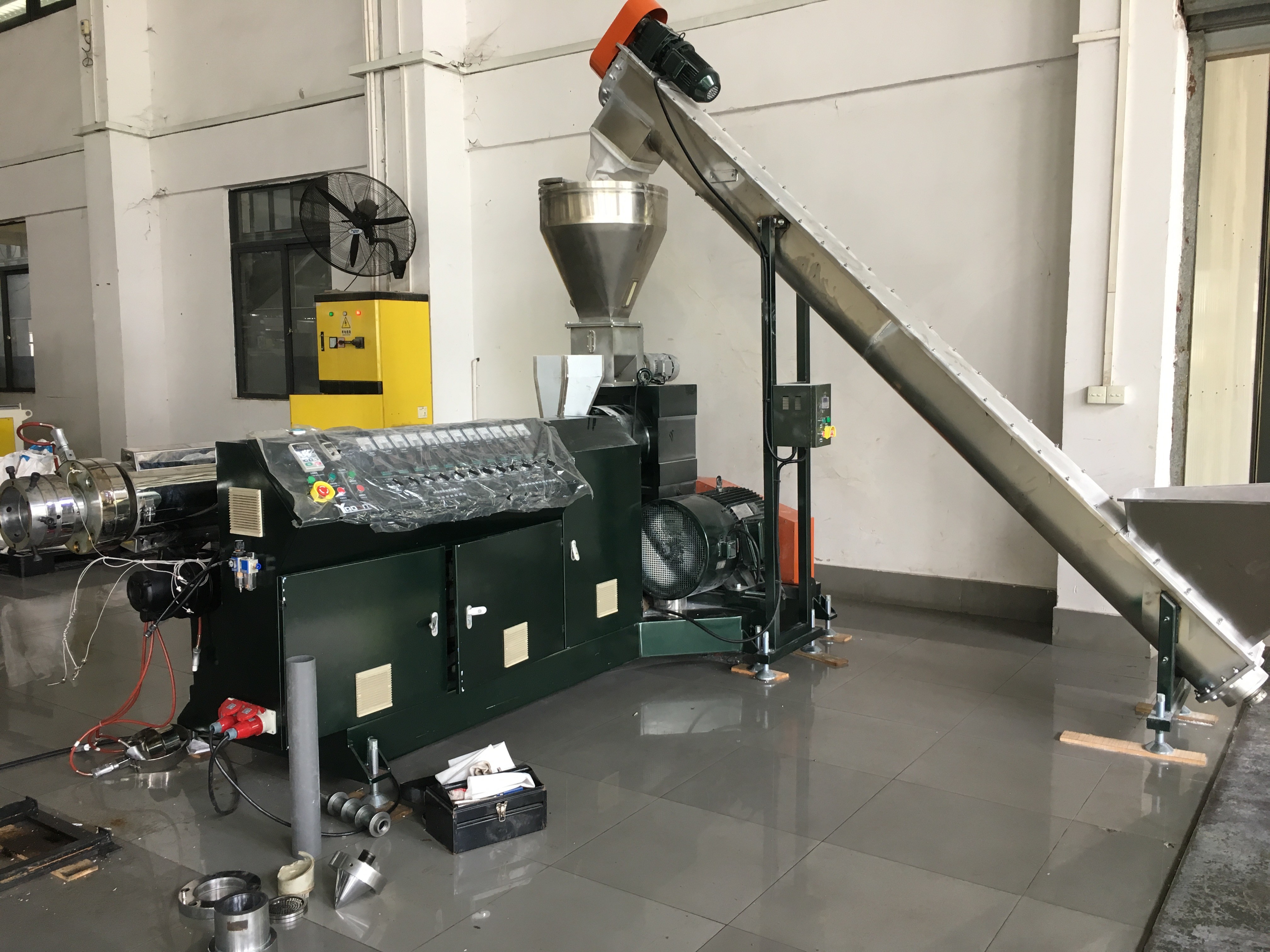

    Extruder: 65/132 Model Screw Barrel, high quality 38CrMoALA material, nitrogen treatment, 37kw converter motor ( Siemens Bedell), 2.2kw vacuum pump, 1.1kw feeding motor, Stainless steel barrel.

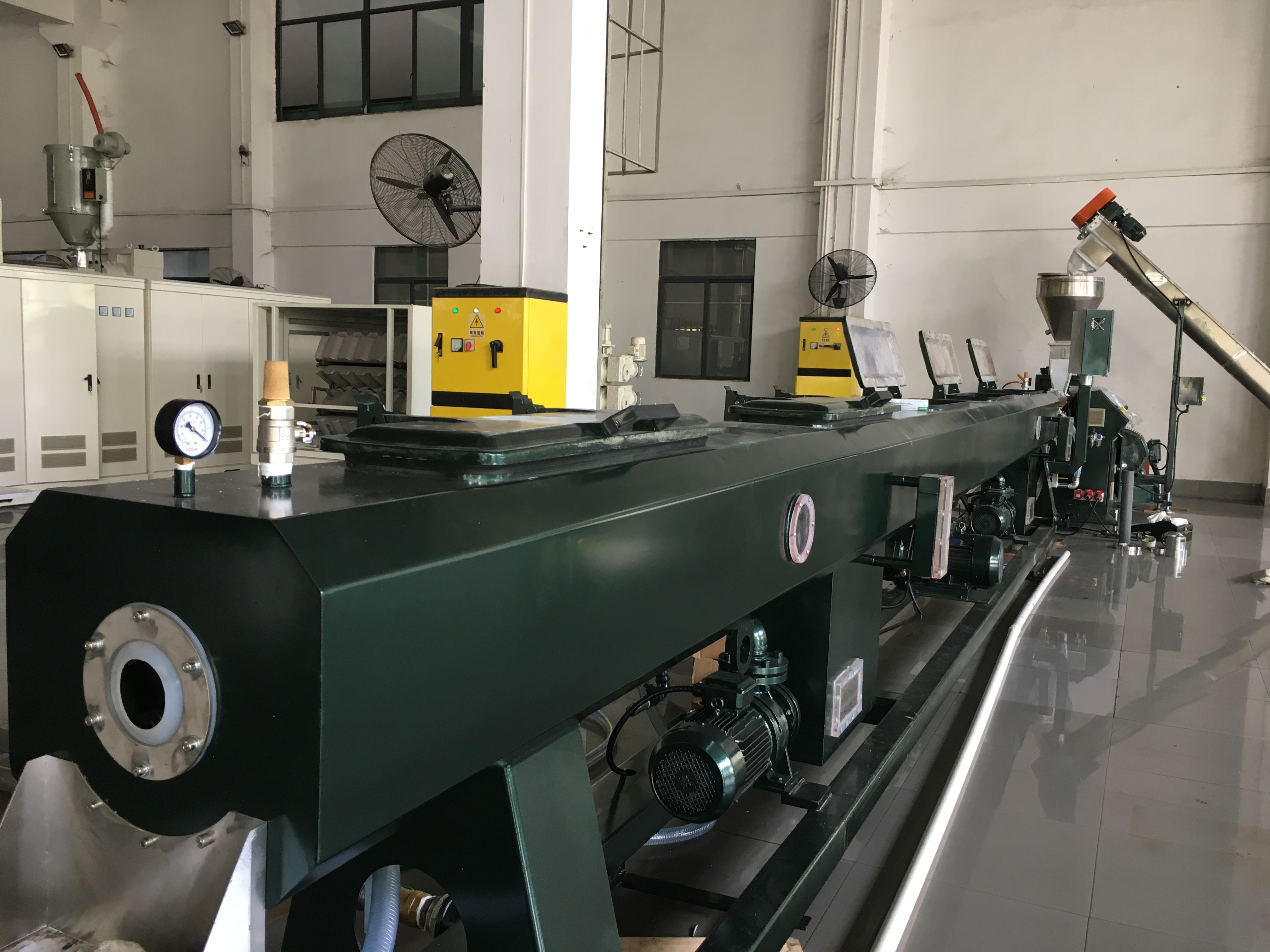

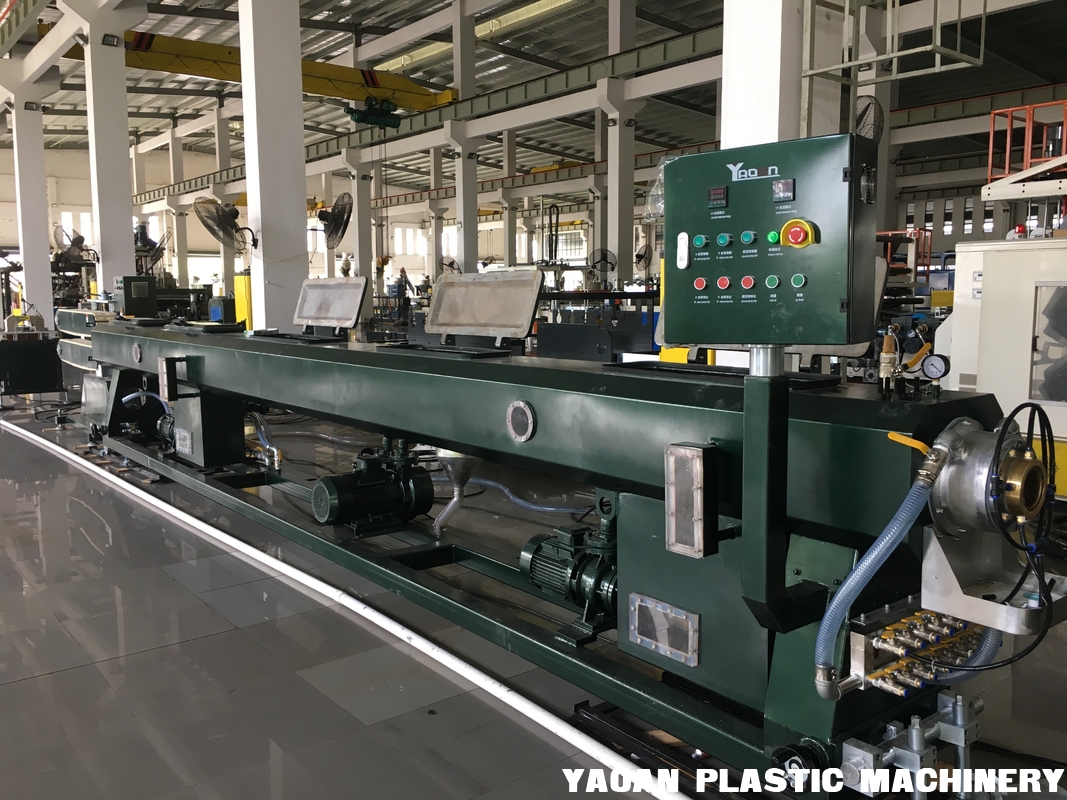

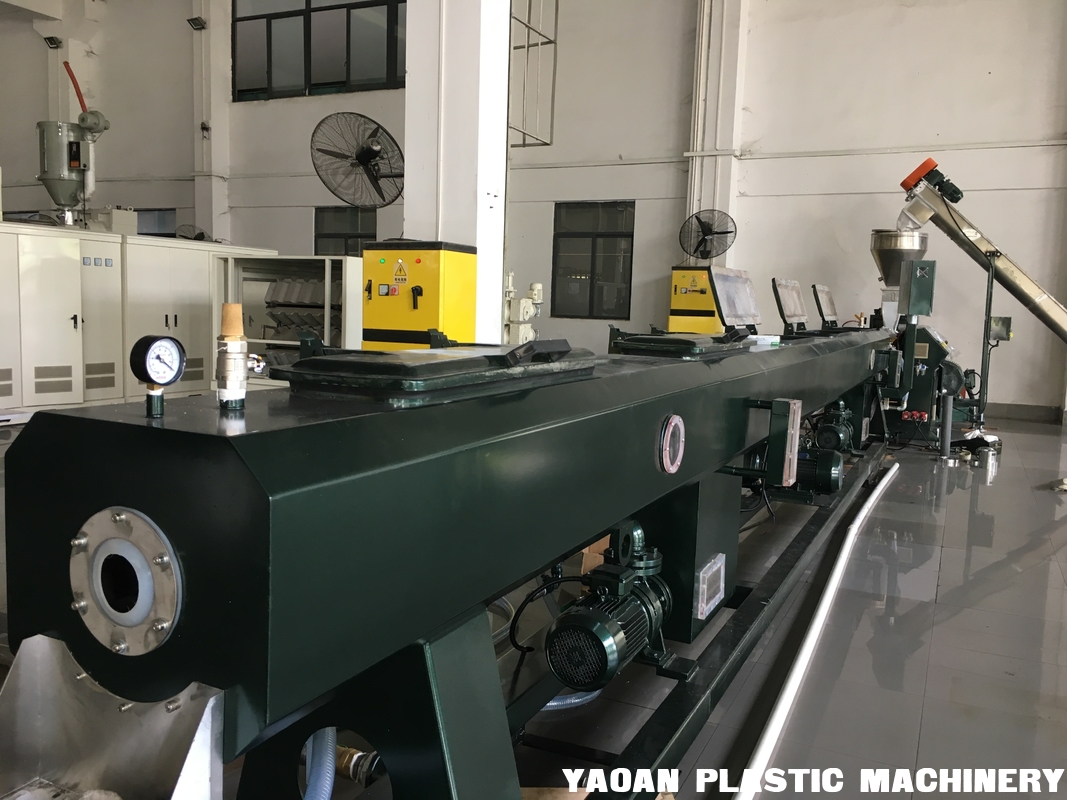

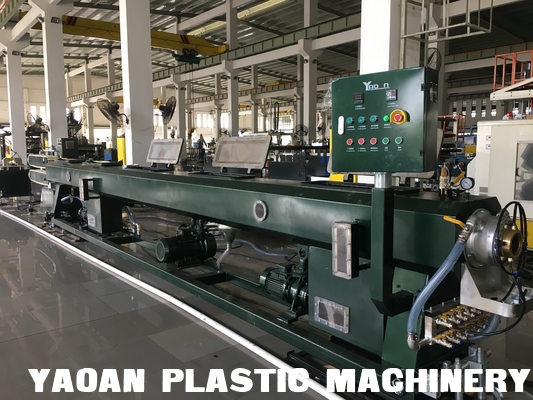

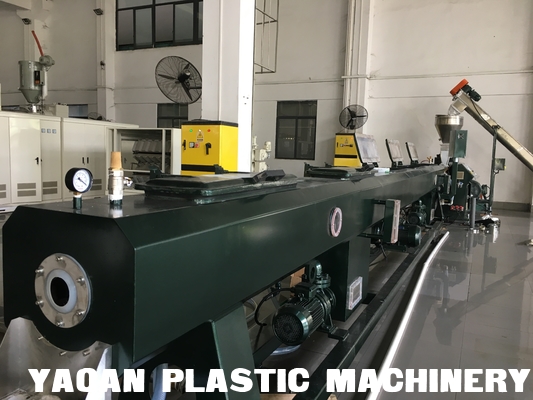

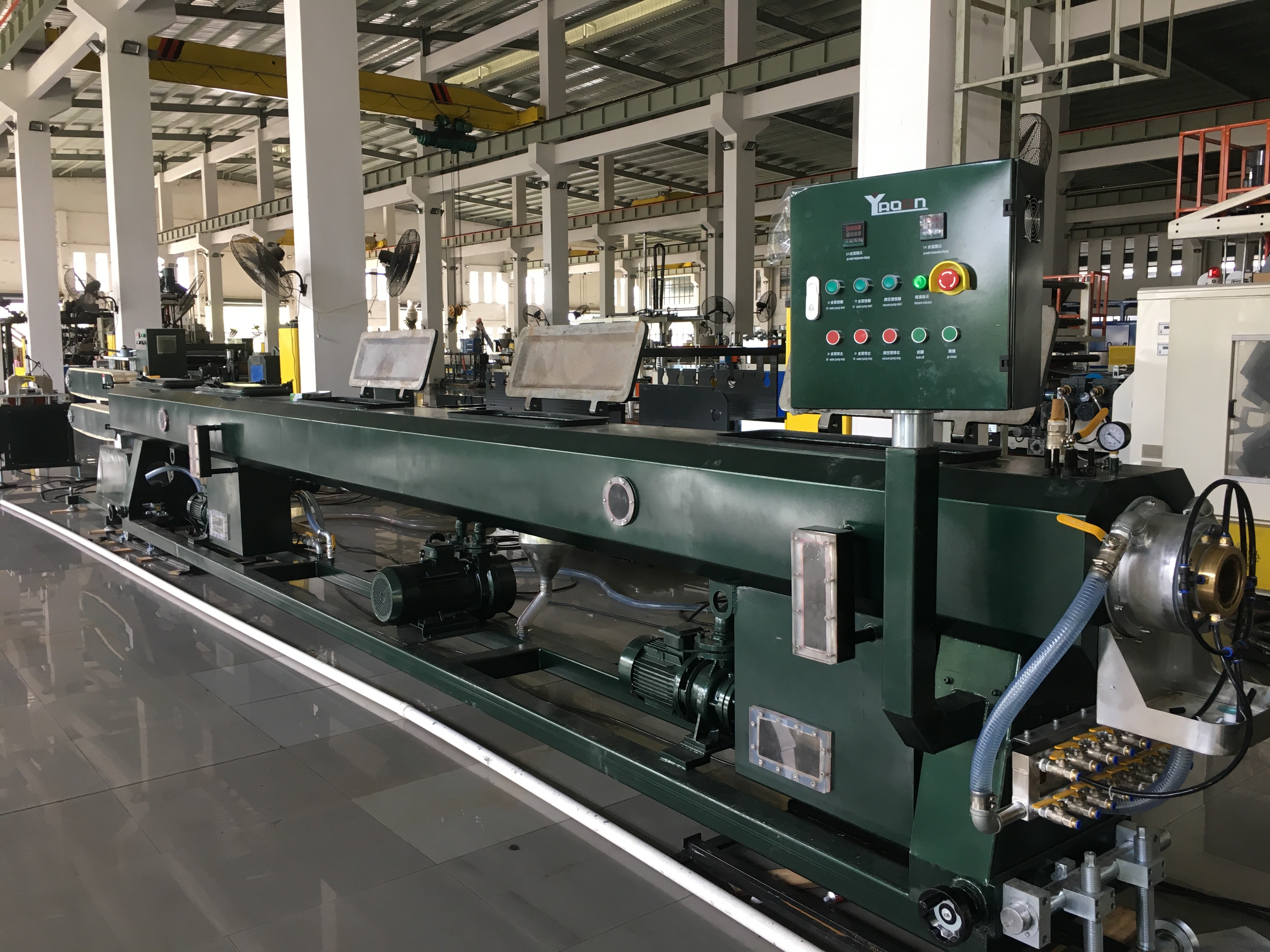

    Vacuum Sizing Cooling Water Tank: stainless steel material, vacuum pump and water pump.

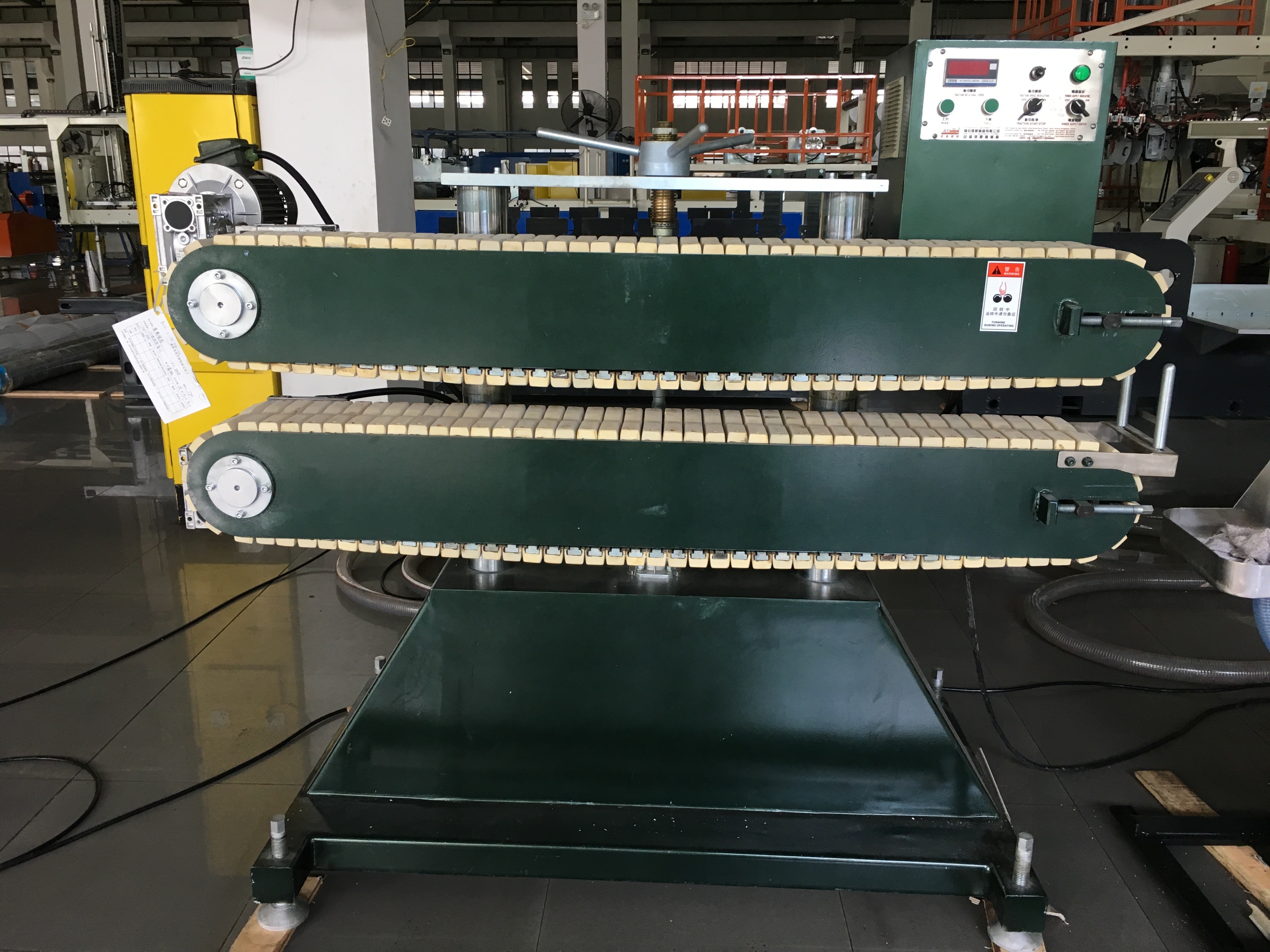

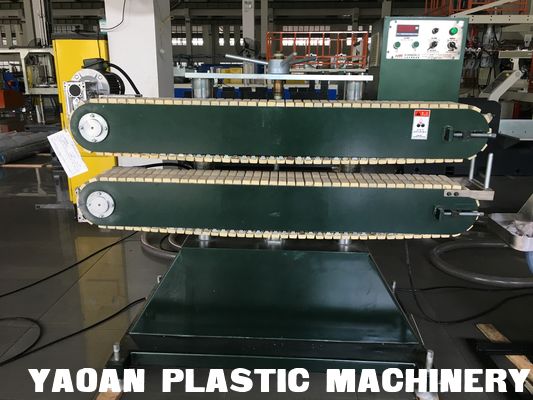

    Traction and Cutting Device: Equipped with sawdust recovery device. Cutting machine adopts the straight line driving, which is more flexible.





    Outstanding Features:



    1. Unique screw design, short retention time of material in the cylinder, good mixing and plasticizing effect



    2. Adopt high quality deceleration box, beautiful appearance, smooth operation and low noise.



    3. Using the vacuum exhaust system, the moisture and volatile gas in the material can be discharged, and the quality of the products can be improved.



    4. One Mould for two pipes, productivity can be doubled, independent control, practical and convenient operation.



    5. The main motor adopts the controllable DC governor or the frequency conversion governor, the output torque of the motor is stable, and stepless speed regulation can be realized.



    6. The PVC electric conduit pipe production line is produced directly by powder, without the need of granulation, which has the advantages of saving labor and electricity, and high production efficiency.

    PVC Electric Conduit Pipe Making Machine

    PVC Electric Conduit Pipe Making Machine
