PE HDPE Pipe Making Line, Plastic Pipe Extrusion Machine

PE HDPE Pipe Making Line, Plastic Pipe Extrusion Machine

    • PE HDPE Pipe Making Line, Plastic Pipe Extrusion Machine
    • PE HDPE Pipe Making Line, Plastic Pipe Extrusion Machine
    • PE HDPE Pipe Making Line, Plastic Pipe Extrusion Machine
  • PE HDPE Pipe Making Line, Plastic Pipe Extrusion Machine

    Product Details:

    Place of Origin: CHINA
    Brand Name: YAOAN
    Certification: CE
    Model Number: 65

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: WOODEN BOX
    Delivery Time: 30-90 DAYS
    Payment Terms: TT,LC
    Supply Ability: 100 SETS PER MONTH
    Contact Now
    Detailed Product Description
    Plastic Processed: PE Application: Pipe
    Screw Design: Single-screw Motor: Siemens
    Inverter: ABB Warranty: 1 Year

    PE HDPE Pipe Making Line, Plastic Pipe Extrusion Machine





    This PE pipe extrusion line can be used in HDPE Large Diameter Gas and Water Pipe which have excellent stiffness and flexibility, heat resistance, aging resistance, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage, and so on. So, it is a preferred gas and water pipe for ductwork system between city and its suburb, Large diameter HDPE pipes start to play very important role in the city water and gas supply systems.



    Main Features

    1.Extruder adopts big L/D and multi mixing structure, which is more suitable for the PE PP PPR low temperature extrusion production.

    2.Specially-designed spiral moulds for PE PP PPR pipes with marking line, with inside oil controlling temperature system

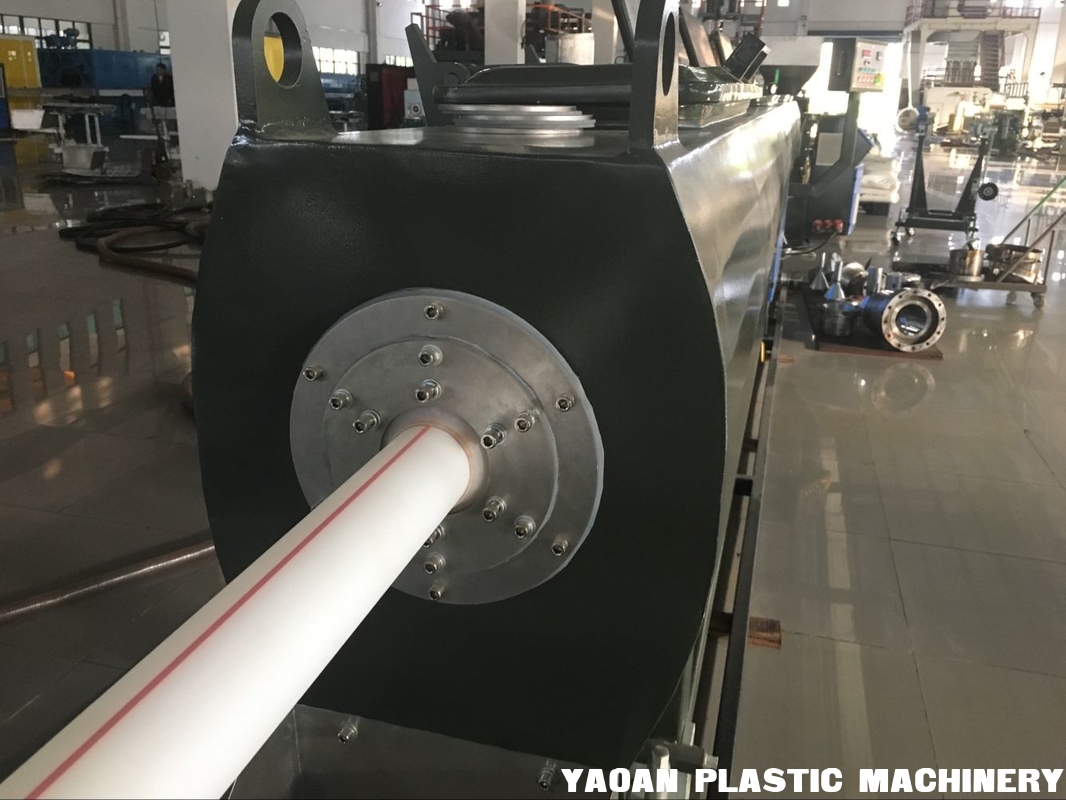

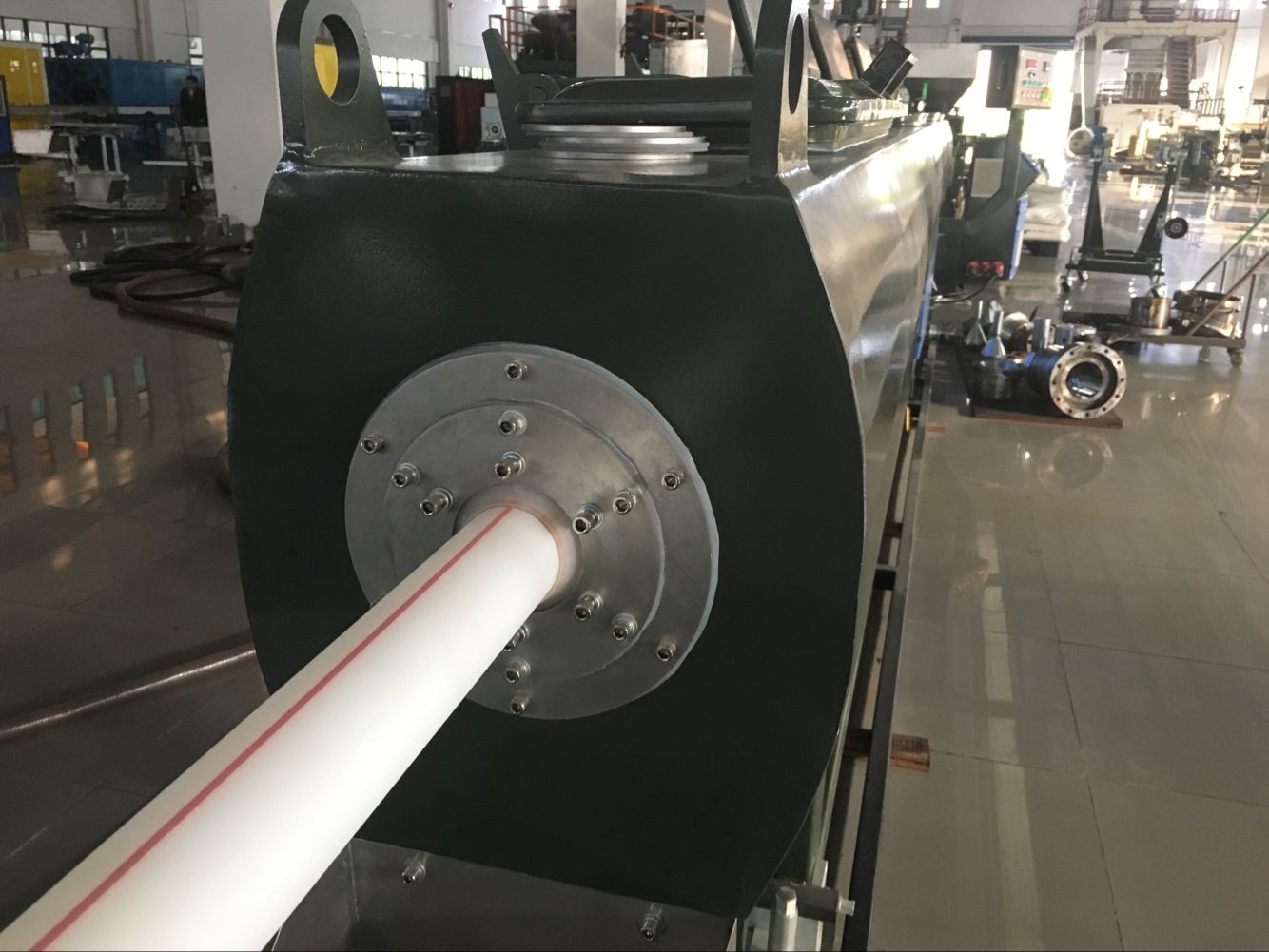

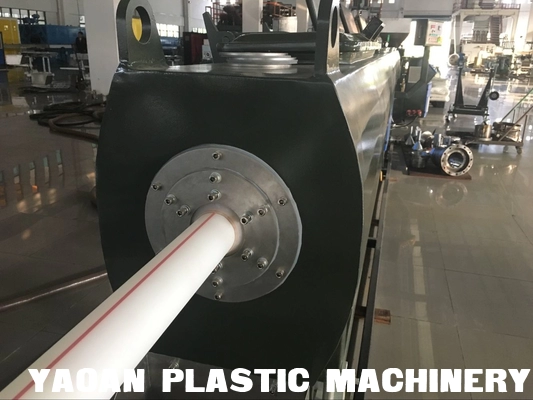

    3.Beautiful and practical stainless steel body for the vacuum calibration and spray cooling system, unique multi-section vacuum system ensures the stable sizing and cooling for pipes with marking line; special spray cooling system improves the cooling efficiency ; special water position, water temperature system make the machine more intelligent.

    4.Hauling-off unit adopts particular pedrail structure, which is easy and convenient for operation; pedrail clamping uses mechanical and pneumatic combining system, which is more reliable.

    5.Cutting system adopts saw blades and planetary cutting means; sumping uses hydraulic system , which ensures the smooth cross section; equipped with dust-collecting unit, which ensures the clean working environment.

    Model Screw Diameter L/D Pipe Range(mm)

    Machine Motor Power

    (kw)

    Total Power(kw)

    Line Length

    (M)

    PE-63 65mm 33:1 16-63 37 80 24
    PE-110 65mm 33:1 75-110 55 110 30
    PE-160 75mm 33:1 90-160 90 150 32
    PE-250 75mm 33:1 110-250 110 200 42
    PE-315 90mm 33:1 160-315 160 240 44
    PE-400 90mm 33:1 200-400 185 300 50
    PE-500 120mm 33:1 250-500 280 350 56
    PE-630 120mm 33:1 315-630 280 480 56
    PE-800 150mm 33:1 400-800 315 550 72




    PE HDPE Pipe Making Line, Plastic Pipe Extrusion Machine

    PE HDPE Pipe Making Line, Plastic Pipe Extrusion Machine
