    Product Details:

    Place of Origin: CHINA
    Brand Name: YAOAN
    Certification: CE
    Model Number: 65

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: WOODEN BOX
    Delivery Time: 30-90 DAYS
    Payment Terms: TT,LC
    Supply Ability: 100 SETS PER MONTH
    Contact Now
    Detailed Product Description
    Plastic Processed: PP, PE, PVC Application: Pipe
    Screw Design: Single-screw Motor: Siemens
    Inverter: ABB Warranty: 1 Year

    Plastic HDPE PE LDPE PP PPR PVC Pipe Extruder Machine/ Extrusion Line





    HDPE/PE/PPR/PVC Pipe is mainly used for in the area of agricultural water supply system, architectural water supply and draiange system, pavement of cables and gas supply etc.



    The basic pipe production line consists of:



    1. Color mixer ( for raw material preparation)



    2. Single screw extruder



    3. Extrusion mold

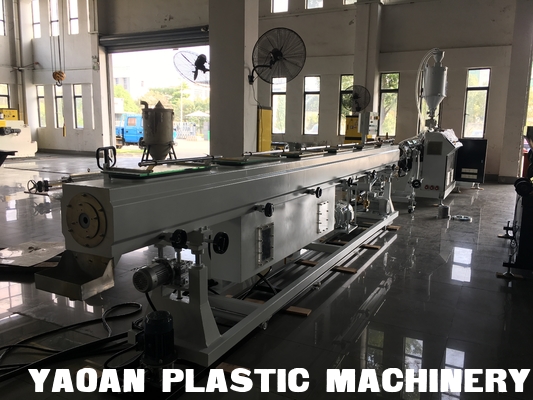

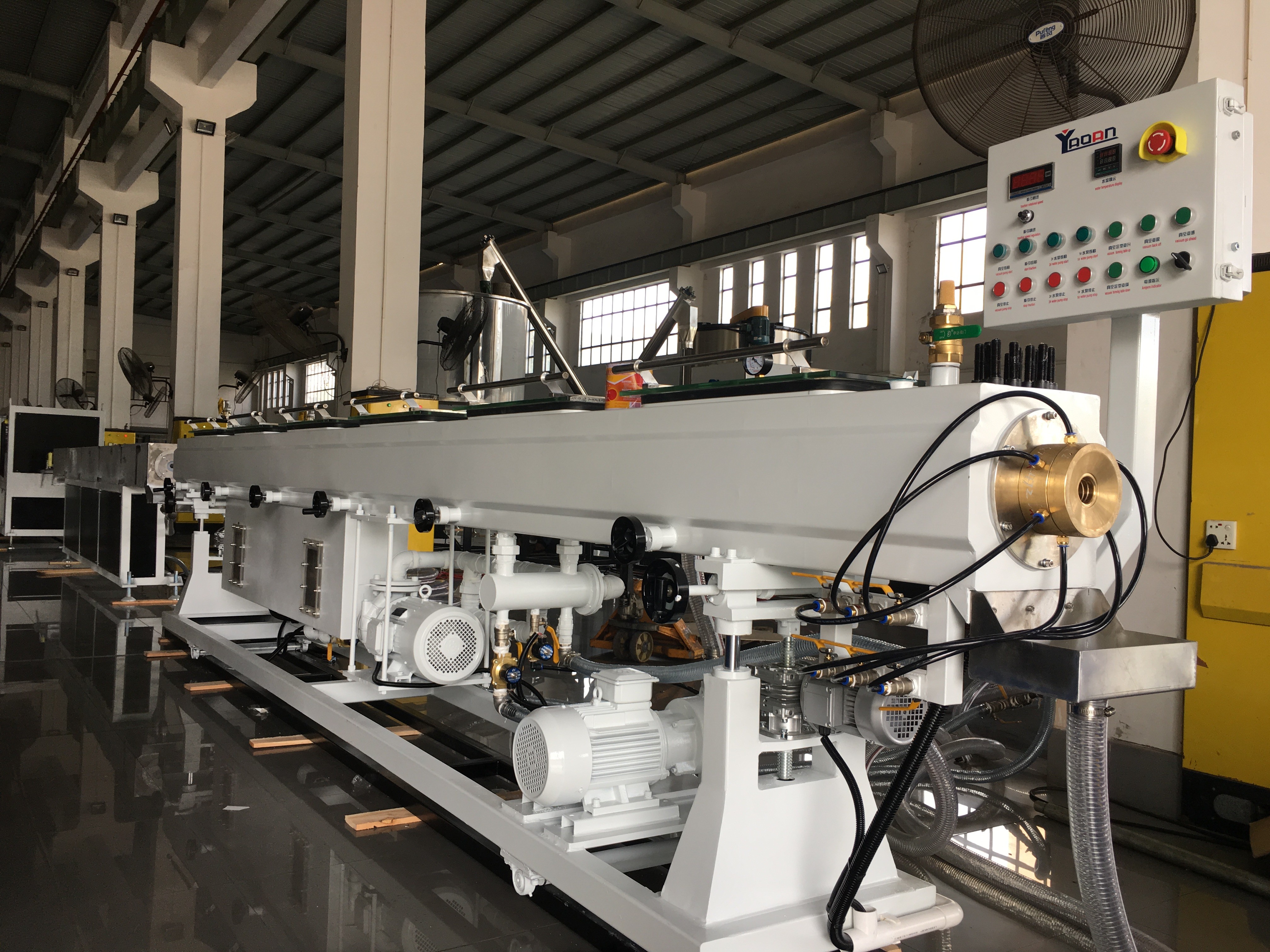

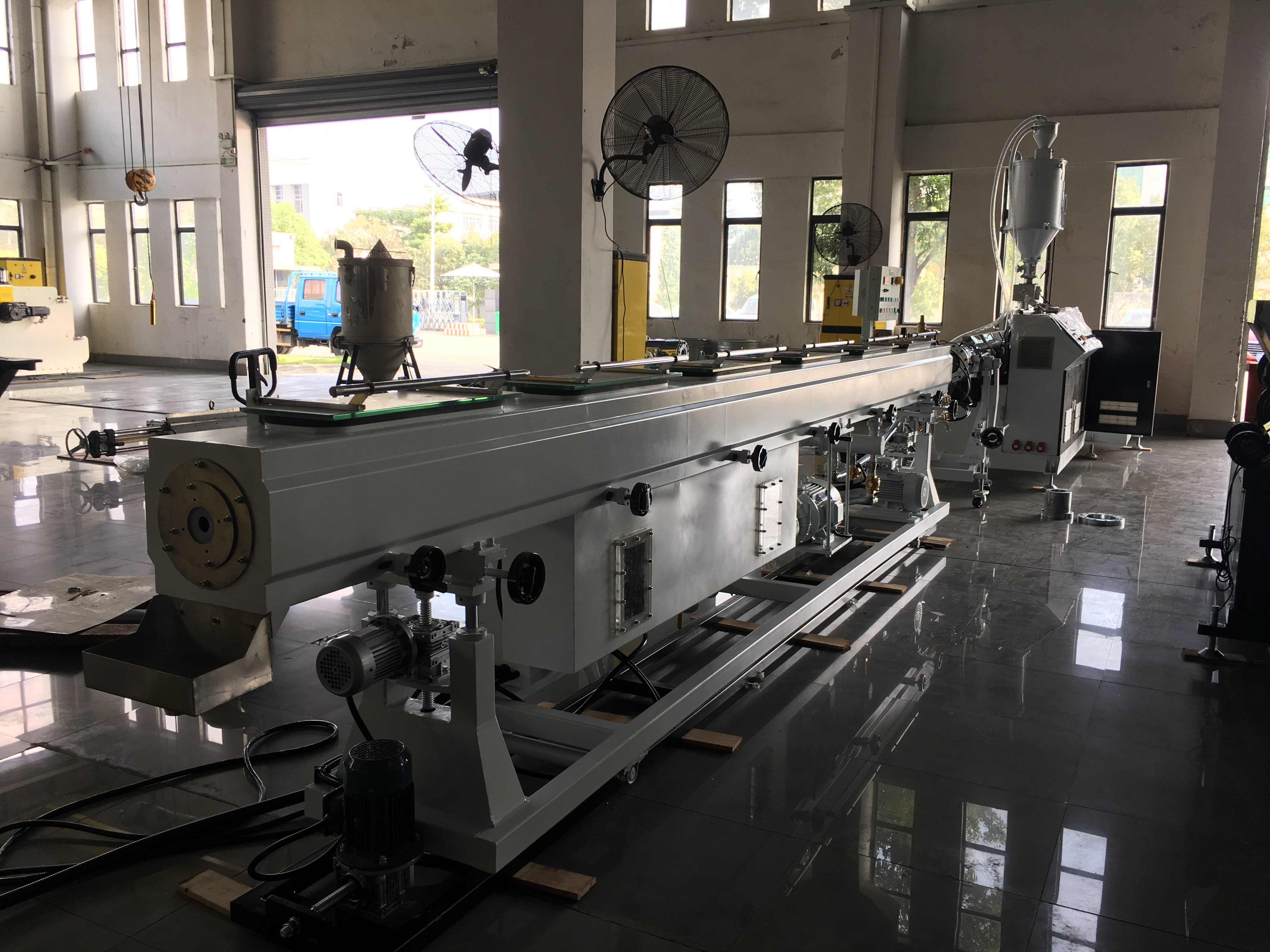

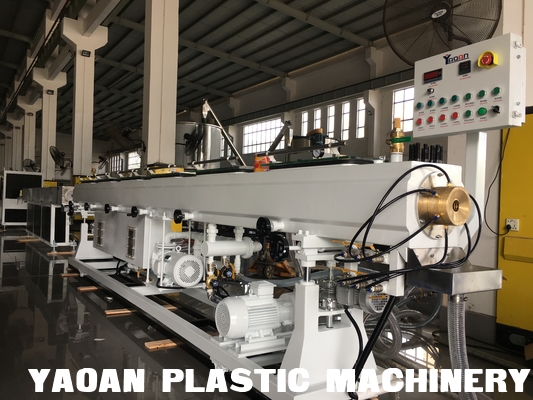

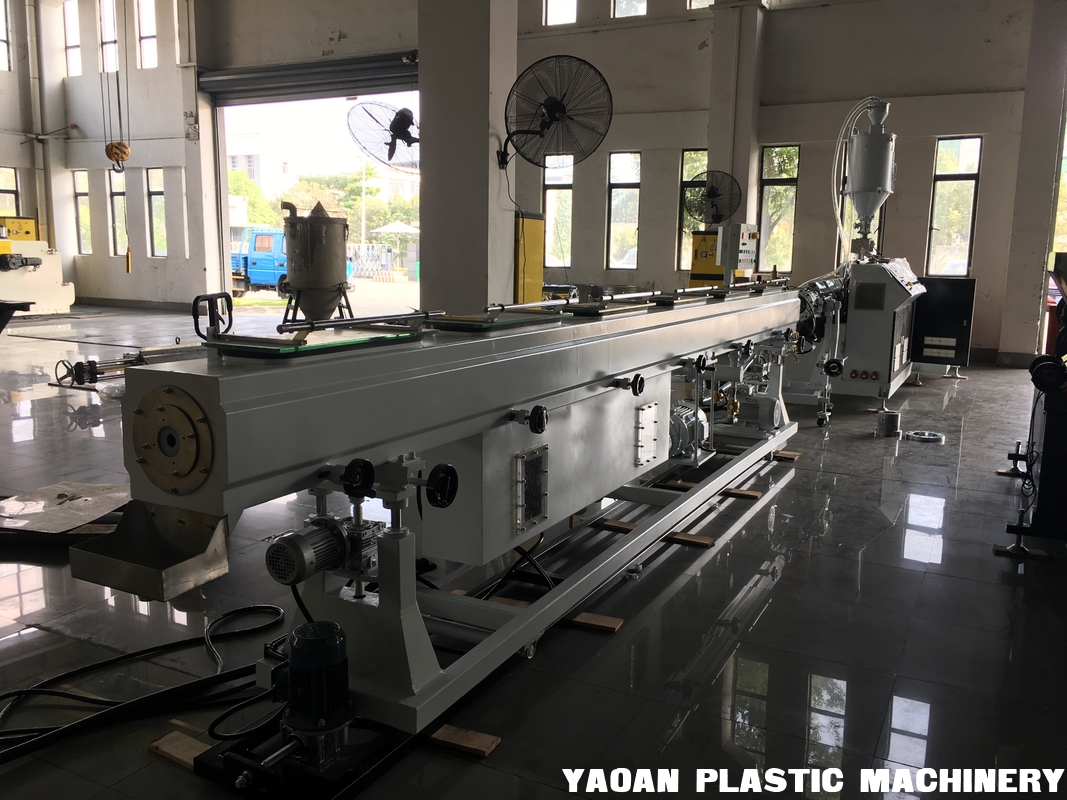

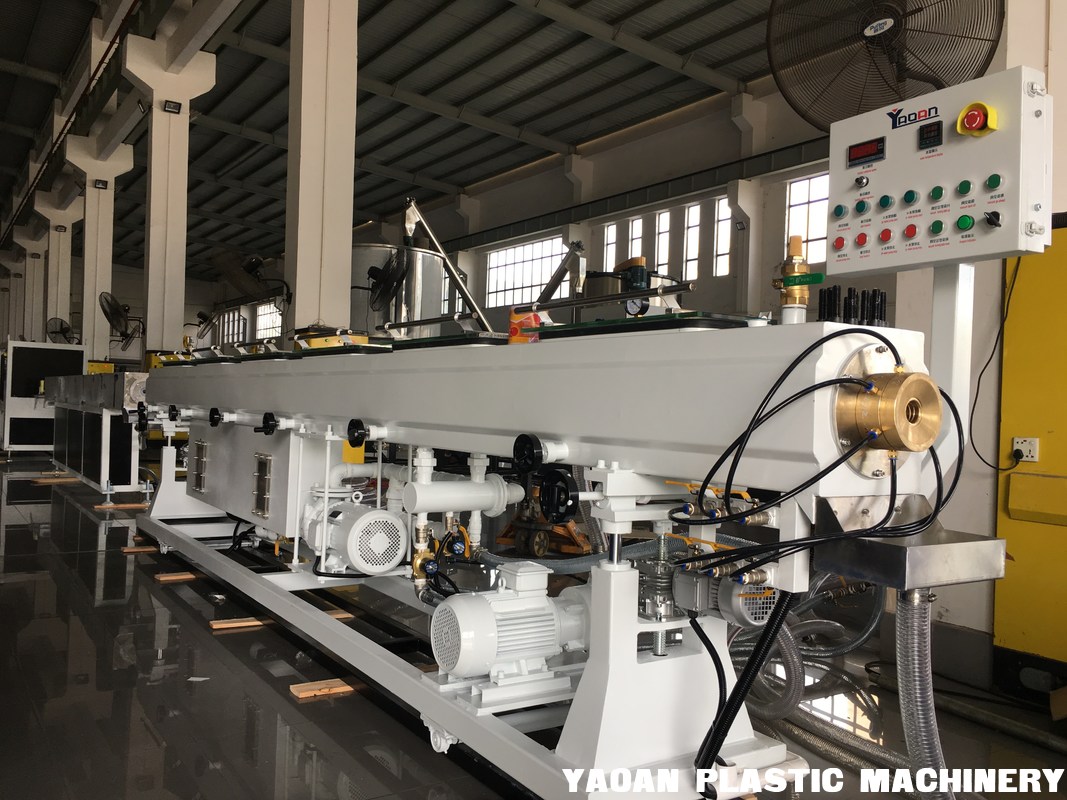

    4. Vacuum tank



    5. Cooling tank

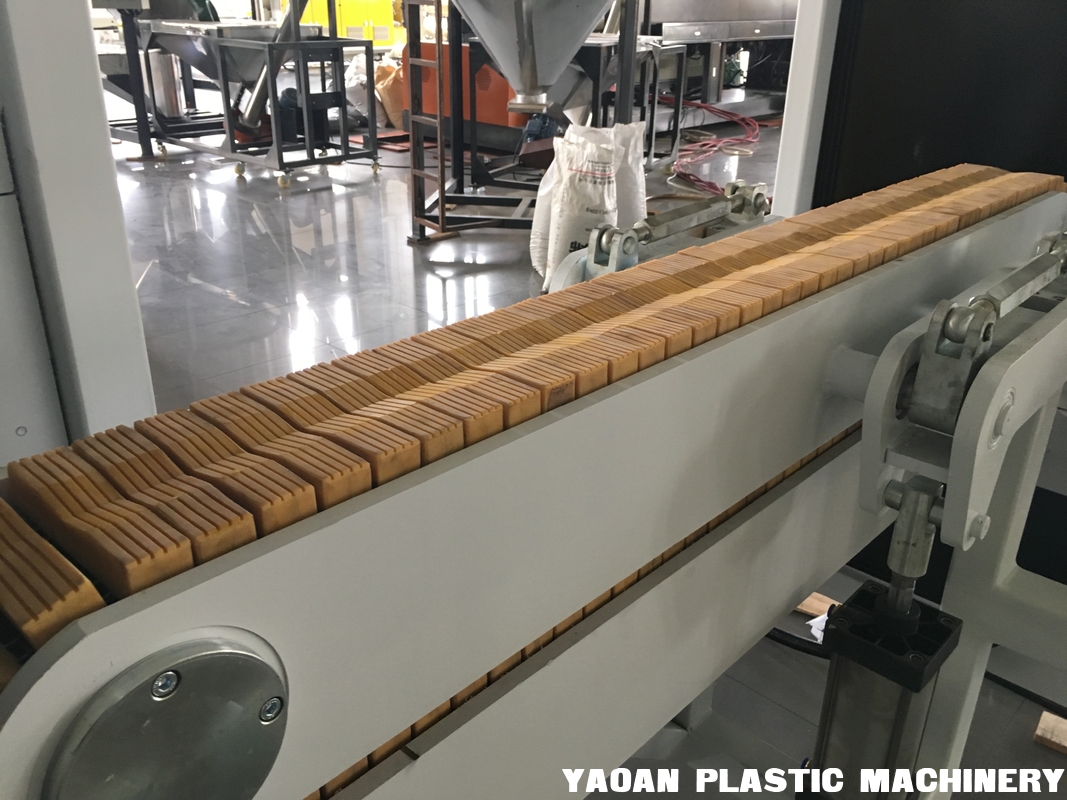

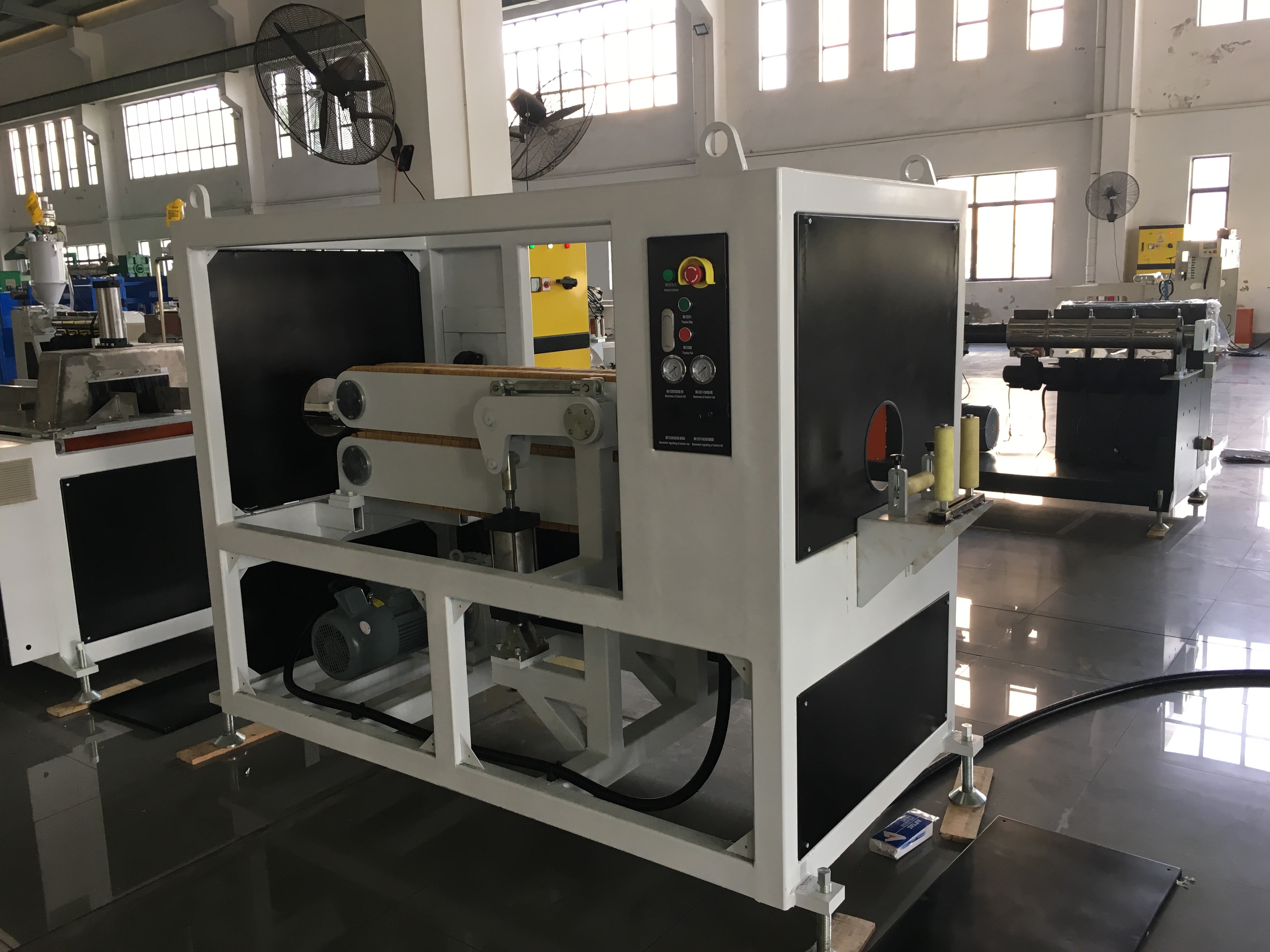

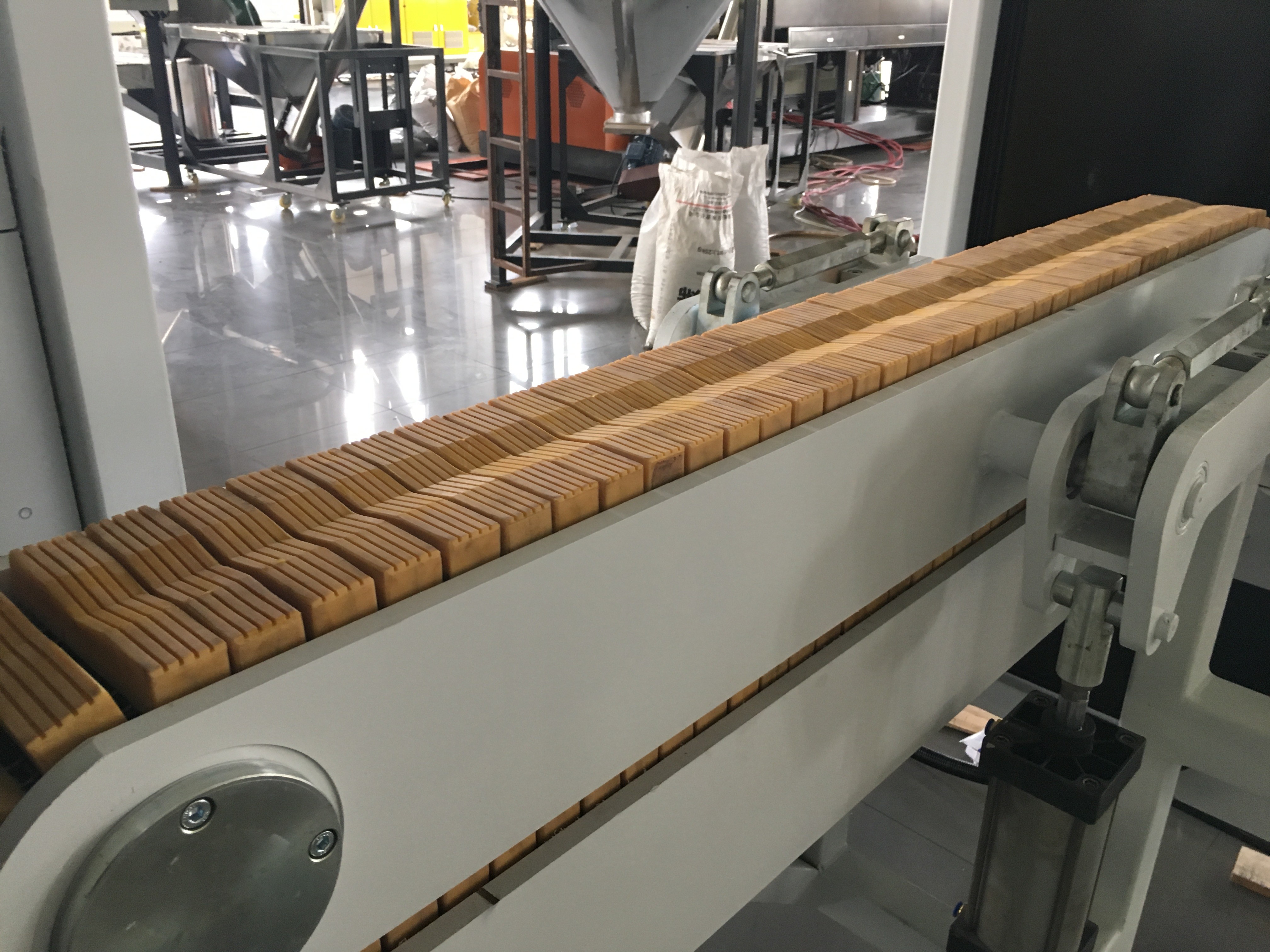

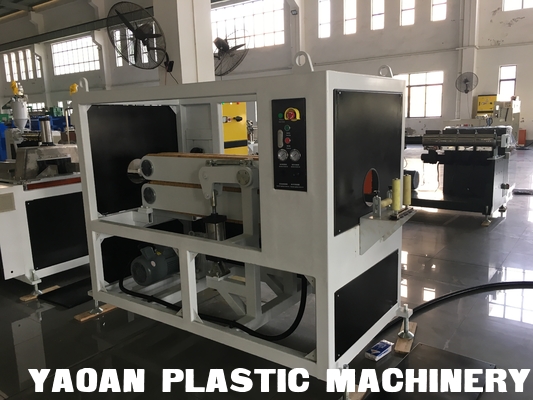

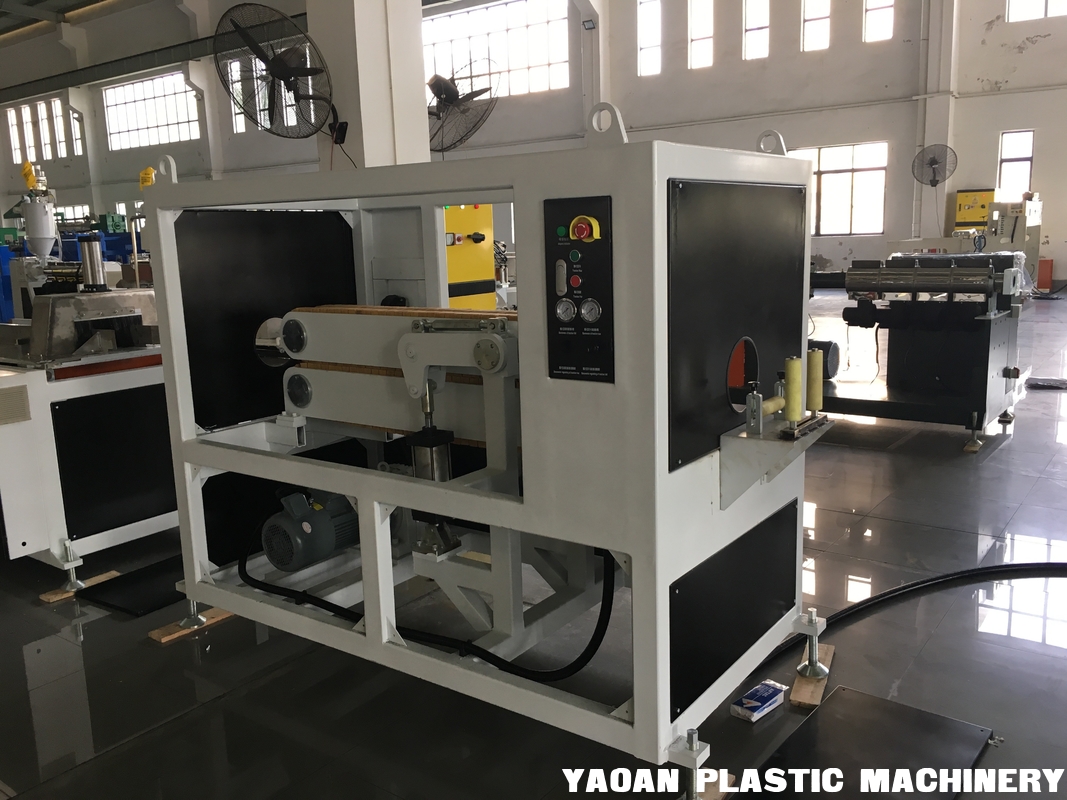

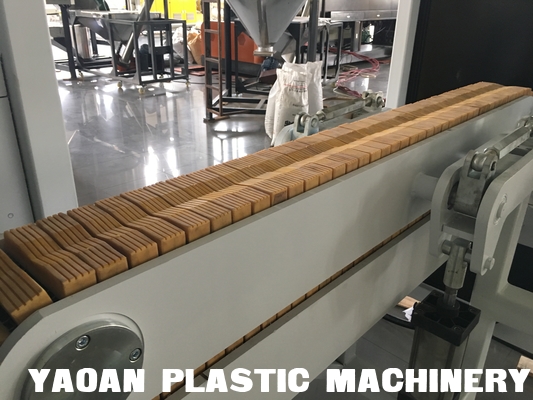

    6. Haul off machine



    7. Cutting machine



    8. Stacker ( for 1000mm upto 6000mm)



    9. Winding machine ( for pipe diameter 16-63mm and 75-110mm)



    10. Shredder and Crusher ( for waste pipe treatment, the recycled PE material could produce pipe again.)



    Also we can make pipe diameter range from:



    Pipe diameter (mm) 16/63 20/110 50/160 75/250 110/315 200/450 315-630
    Max output (KG/H) 150 200 350 350 350 450 850
    Production rate(m/min) 1-15 1.2-12 0.6-8 0.5-4 0.4-3.7 0.3-3 0.2-2
    Extruder model SJ65/30 SJ65/33 SJ75/33 SJ75/33 SJ75/33 SJ90/33 SJ120/33
    Installed power (KW) 85 110 125 180 260 325 480
    Installation area (M) 35*3*2 38*3.1*2.2 38*3.1*2.2 40*3.2*2.4 42*3.2*2.4 52*3.3*2.6 60*3.5*2.8





    Plastic HDPE PE LDPE PP PPR  PVC Pipe Extruder Machine/ Extrusion Line
    Plastic HDPE PE LDPE PP PPR  PVC Pipe Extruder Machine/ Extrusion Line
    Plastic HDPE PE LDPE PP PPR  PVC Pipe Extruder Machine/ Extrusion Line
