Garden Hose / Braided Yarn Reinforced PVC Hose Extrusion Line

Basic Information
Place of Origin: CHINA
Brand Name: YAOAN
Certification: CE
Model Number: 65
Minimum Order Quantity: 1
Packaging Details: WOODEN BOX
Delivery Time: 30-90 DAYS
Payment Terms: TT,LC
Supply Ability: 100 SETS PER MONTH
Contact Now

Garden Hose / Braided Yarn Reinforced PVC Hose Extrusion Line





The extrusion line is used to produce PVC reinfoced hoses, which is widely used in the fields of industry, agriculture, forest, architecture etc. Completed with two single screw extruders, one yarn braiding machine and other assistant machine, is featured with both high speed extrusion and even yarn braiding. With the special dies, it can produce other soft pipes also.



Process flows:

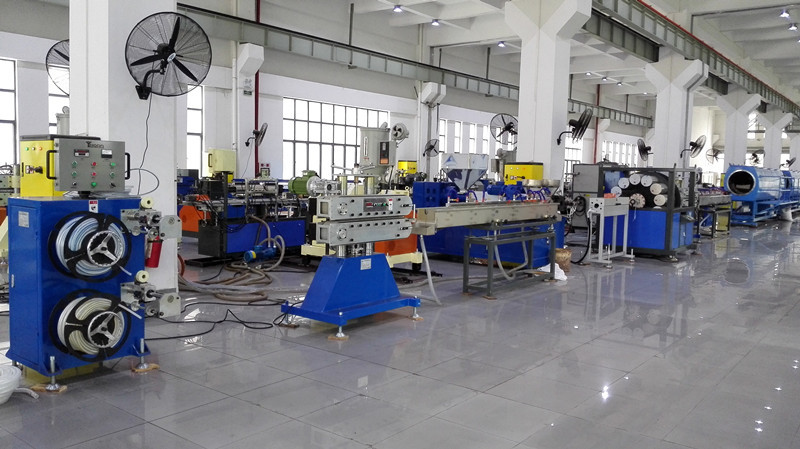

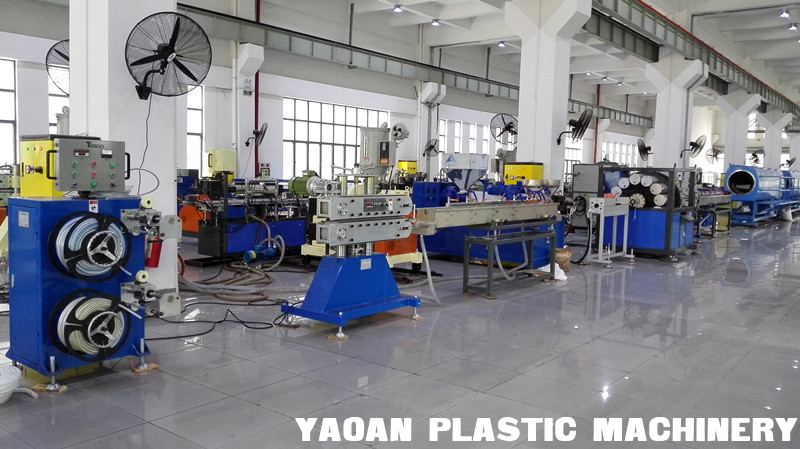

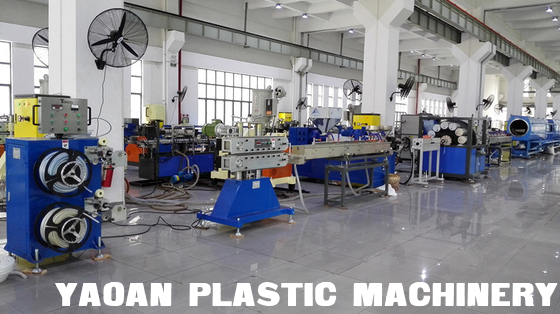

SJ-Single Screw Extruder--Water Cooling Tank--Hauling off Machine--Fiber Winding Machine--SJ-Single Screw Extruder--Water Cooling Tank--Hauling off Machine--Twin Position Coiler



This pvc hose pipe machine Line Consists of:

Item Description Data

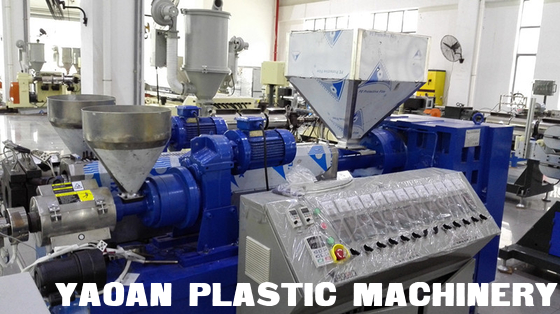

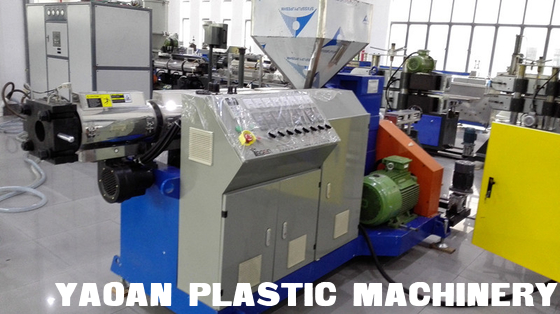

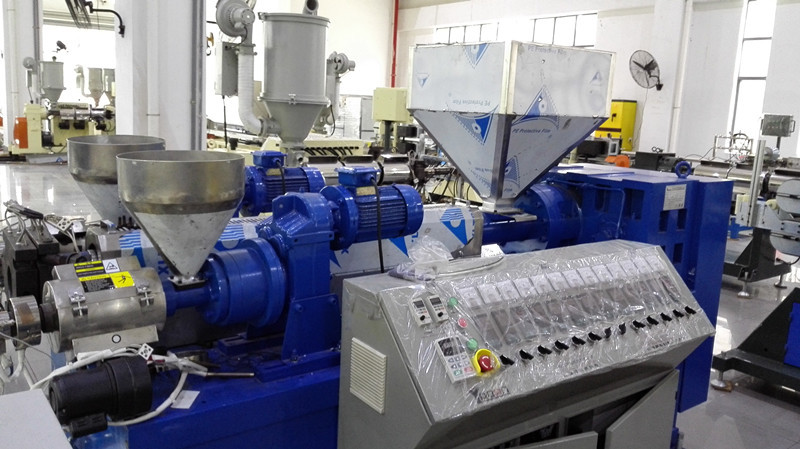

1 Single Screw Extruder 2 sets
  Screw and Barrel Material 38CrMoAlA
  Treatment of Screw and Barrel Surface Nitriding
  Heating Mode of Screw Barrel Cast-aluminium Heating Circles
  Cooling Mode of Barrel Air Blower
  Main Motor Power Speed Adjusting Japan Omron Frequency Inverter
  Gearbox Reducer Hardening Gear Surface, Low Noise
2 Die Head 1 set or According to Customer’s Need
  Specification 5-50mm
3 Water Cooling Tanks 2 sets
  Tank Material Excellent Stainless Steel
  Tank Length 2000-3000mm
  Tank Thickness 3mm
  Water Pump 2 sets
4 Fiber Winding Machine 1 set
  Motor 2.2KW
  Speed Adjusting Mode Japan Omron Inverter
5 Hauling off Machine 2 sets
  Motor Power 1.5kw*2
  No.of Belt 2 *2 sets
  Speed Control Japan Omron Inverter
5 Twin Position Coiler 1 set
6 Main Electrical Components Omron, ABB, Schneider, Delix, Simens etc.

Torque Motor

2.5-6KN/m



Garden Hose / Braided Yarn Reinforced PVC Hose Extrusion Line



Garden Hose / Braided Yarn Reinforced PVC Hose Extrusion Line
