HDPE, PP Thick Sheet Extrusion Machine, Thick Board Production Line, Thickness Range: 2-15mm

HDPE, PP Thick Sheet Extrusion Machine, Thick Board Production Line, Thickness Range: 2-15mm

    • HDPE, PP Thick Sheet Extrusion Machine, Thick Board Production Line, Thickness Range: 2-15mm
    • HDPE, PP Thick Sheet Extrusion Machine, Thick Board Production Line, Thickness Range: 2-15mm
    • HDPE, PP Thick Sheet Extrusion Machine, Thick Board Production Line, Thickness Range: 2-15mm
  • HDPE, PP Thick Sheet Extrusion Machine, Thick Board Production Line, Thickness Range: 2-15mm

    Product Details:

    Place of Origin: CHINA
    Brand Name: YAOAN
    Certification: CE
    Model Number: AF-150

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: WOODEN BOX
    Delivery Time: 30-90 DAYS
    Payment Terms: TT,LC
    Supply Ability: 100 SETS PER MONTH
    Contact Now
    Detailed Product Description
    Machine Color: Any Color Main Motor: A.C Motor
    Inverter Brand: ABB Suitable Raw Material: PP,PE, ABS
    Sheet Width: 1220-1500mm Warranty: 1 Year

    HDPE, PP Thick Sheet Extrusion Machine, Thick Board Production Line, Thickness Range: 2-15mm


    Width of final product: 1500mm

    Thickness range: 2-15mm

    Extrusion Capacity: 250-350kg/hr (Max.)



    Technical parameter:

    S.N Description Qty
    1

    AFSJ-150/30 Single- screw main extruder

    Gearbox:

    The body of the gearbox is made from cast steel. The teeth deal with grinding and peeling eventually, which provides damping, antifriction, low-noise, long using period etc. characteristics.

    The screw:

    Screw diameter: 150mm

    L/D: 30: 1

    Screw structure: special

    Material: high quality nitrided steel-38CrMoAIA

    Nitration depth: 0.3-0.6mm, hardness≧ 740HV,fragility is 2 grades.

    The Barrel:

    Material: high quality nitrided steel-38CrMoAIA

    Nitration depth: 0.4-0.7mm, hardness≧ 940HV,fragility is 2 grades.

    Heating zones: 8 zones

    The electric heaters are made of cast aluminum. Each electric heater has a specially designed tunnel for heat radiation.

    The fans are featured with imported low lose and high effectiveness.

    Main motor:

    Power: 185 KW A.C motor ( ABB inverter control)



    1 set

    2

    Fasten hydraulic pressure screen changer



    1 set

    3

    T-die

    Effective width: 1700mm

    Material: adopt Japanese advanced heat proof alloy steel

    The flows are plated chrome. And the flow surface is polished until it like mirror.

    The outlets of the mould can be adjusted with the adjustable screws slightly.



    1 set

    4

    Calender roll stack

    Structure: vertical

    Roll number: 3

    Diameter of roll: 500mm

    Roll length: 1700mm

    Wall thickness of the roll: ≧25mm

    Roll surface treatment: treatment of mirror polishing

    The roll adopt Japanese alloy steel, and with hard chrome treatment, the hardness can reach RC60-65



    1 set

    5

    12 rollers cooling sizing unit

    Number of the steel rollers: 10

    Roller length: 1700mm

    Roller surface treatment: plated chrome and half-mirror polishing



    1 set

    6

    Air cooling stand

    Air cooling roller: 56 pcs



    1 set

    7

    4 rollers haul off unit

    Haul off rubber roller: 4 pcs

    Diameter of the roller: 240mm

    Length of the roller: 1700mm

    Surface treatment: coated erosion resistance, heat resistance and friction resistance rubber and polished.

    Clamping and open-close means: pneumatic



    1 set

    8

    Trimming unit



    1 set

    9

    Cutting machine & stacker

    Saw cutter: one set



    1 set



    PLC Control system: one set

    Brand: SIEMENS

    Touch screen

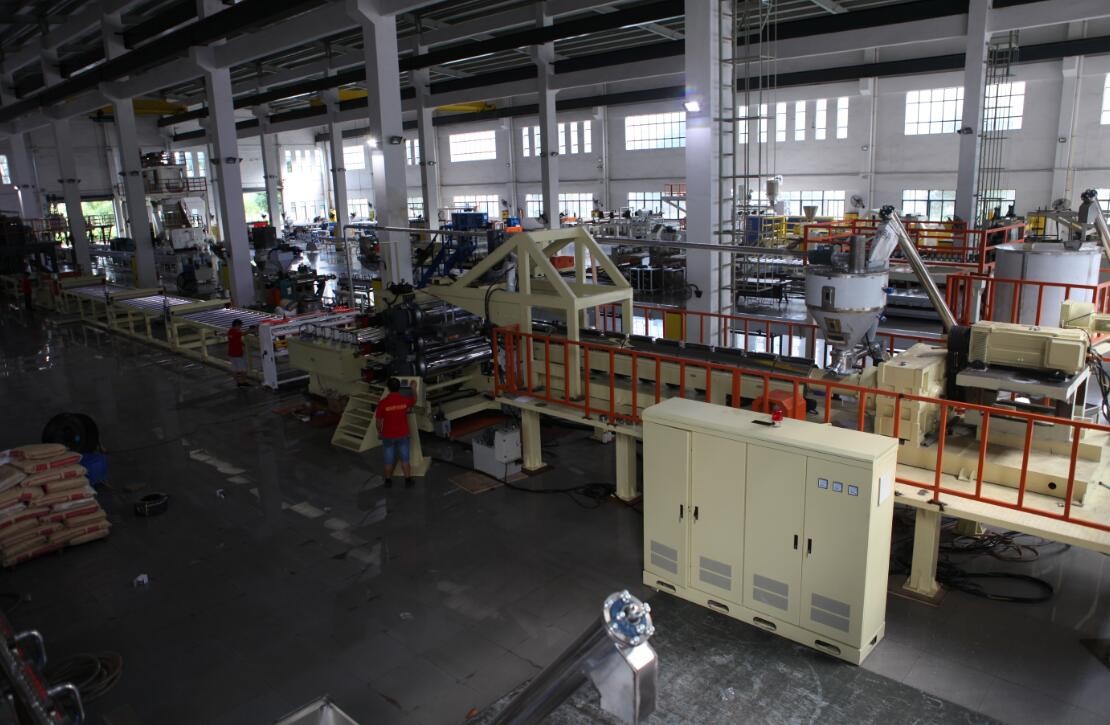

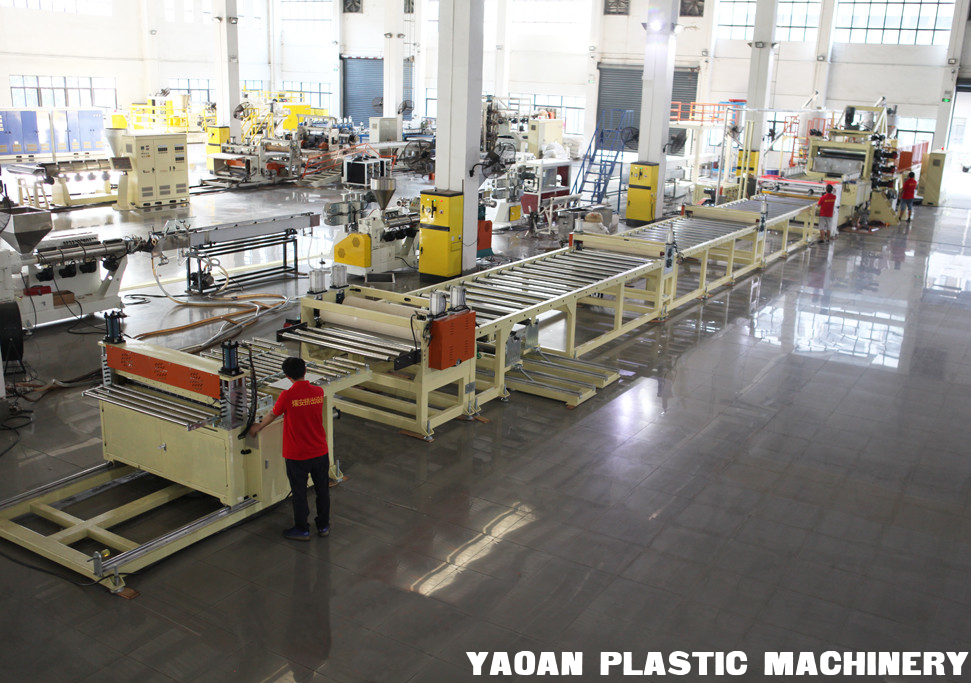

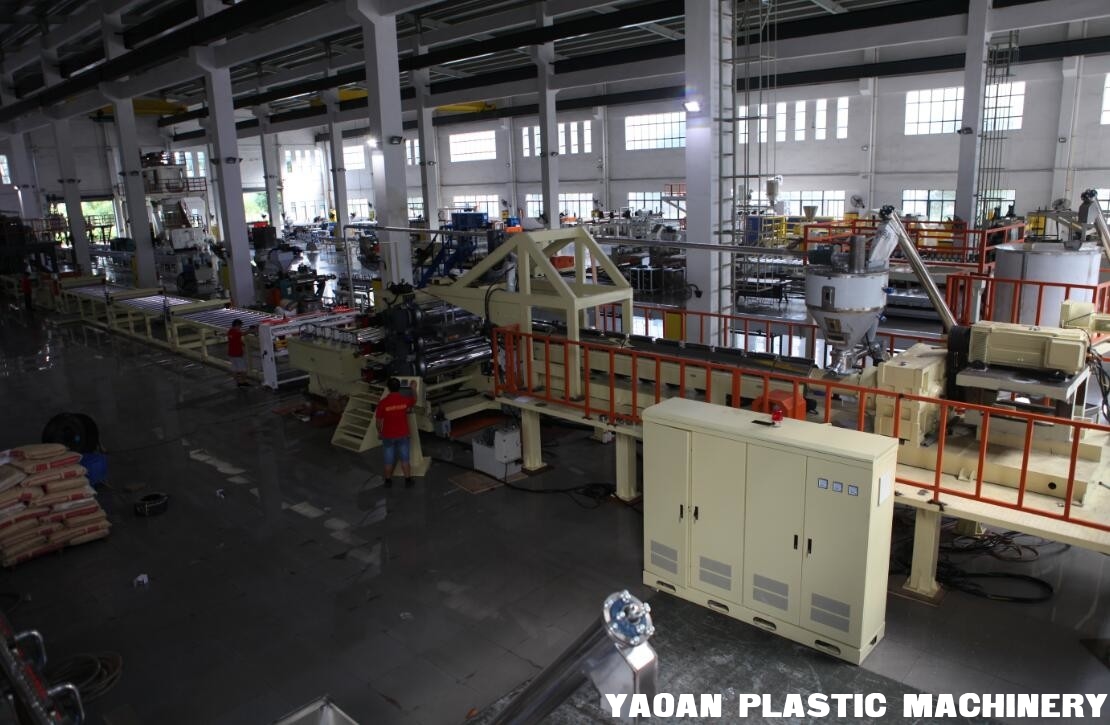

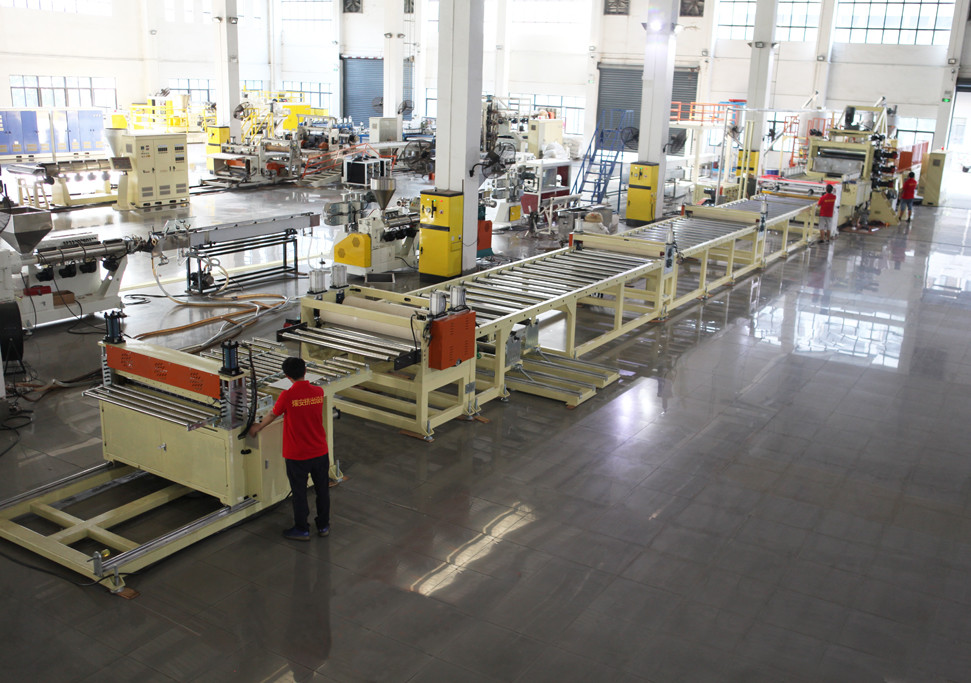

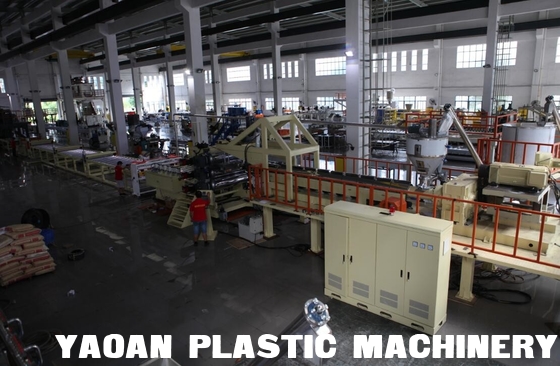

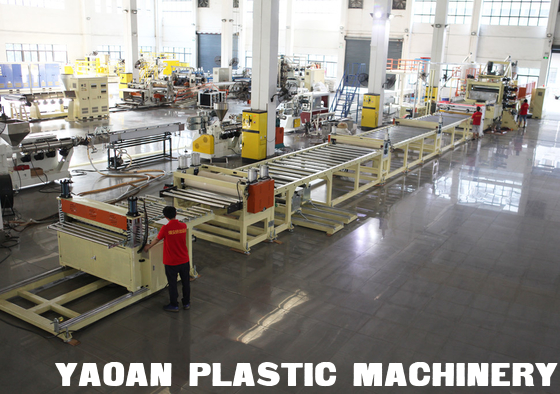

    Machine Pictures

    HDPE, PP Thick Sheet Extrusion Machine, Thick Board Production Line, Thickness Range: 2-15mm

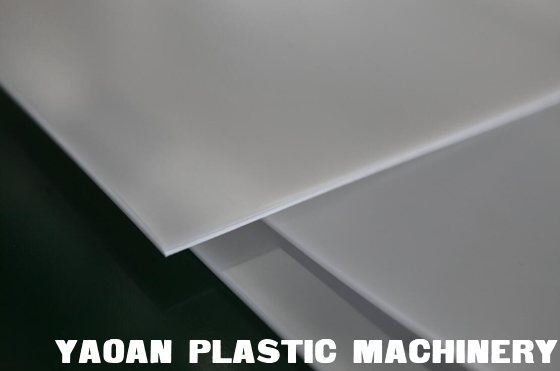

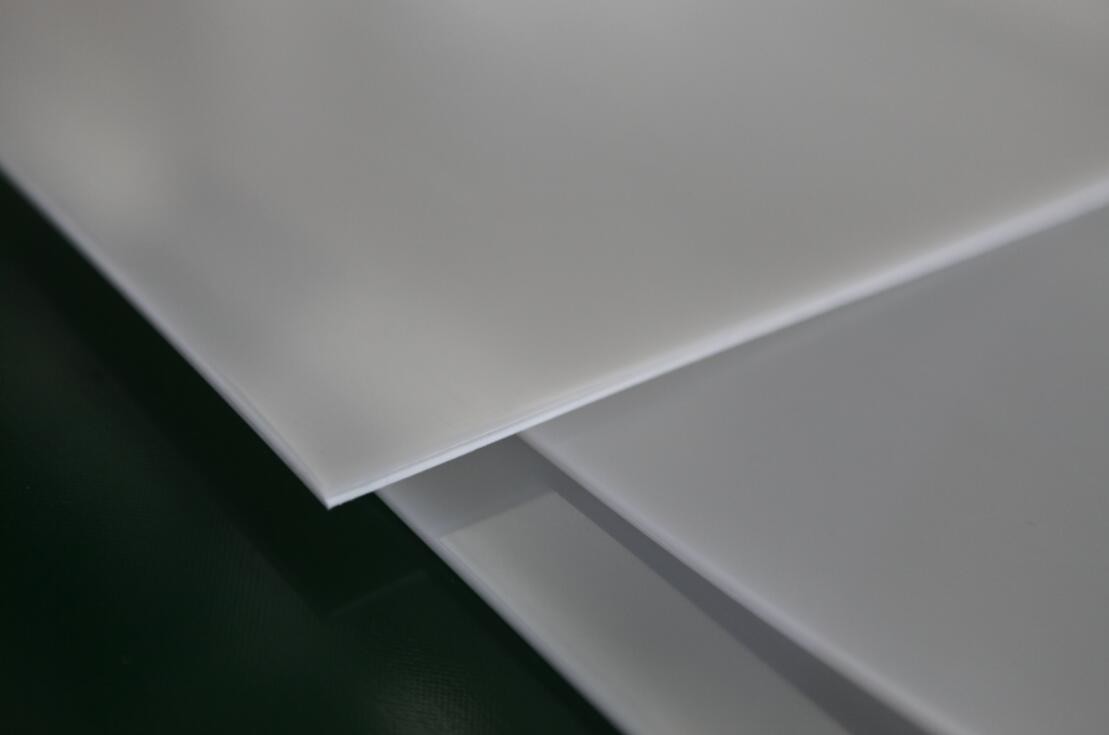

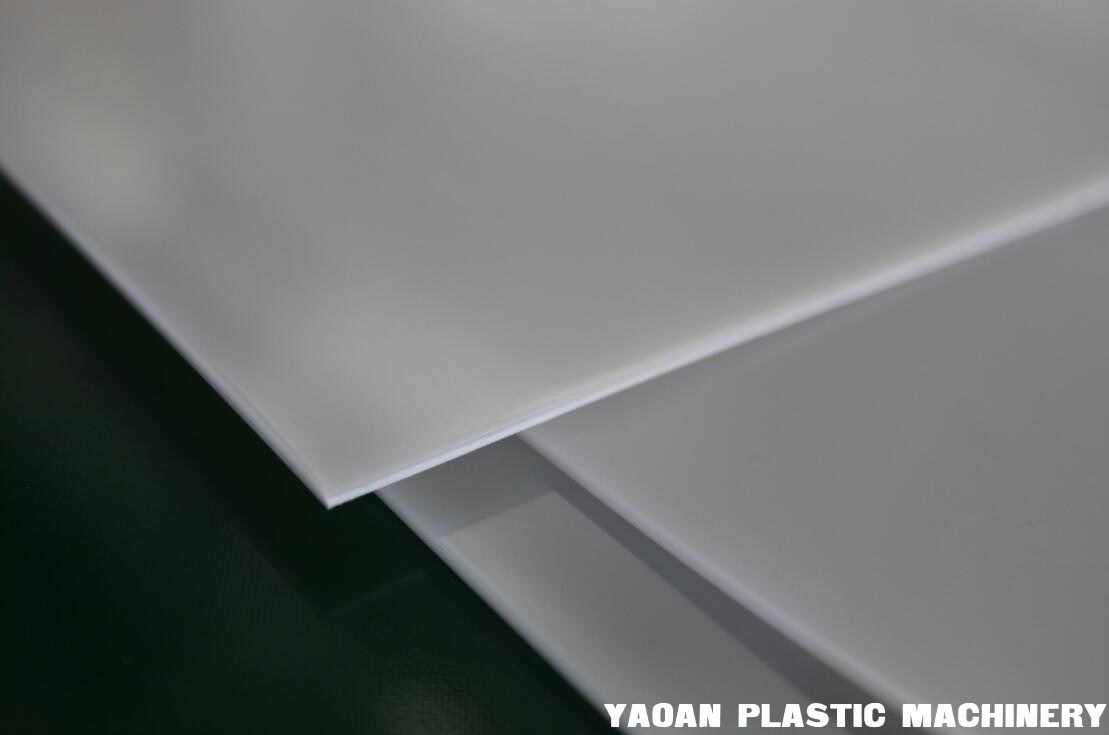

    Final Products
    HDPE, PP Thick Sheet Extrusion Machine, Thick Board Production Line, Thickness Range: 2-15mm
