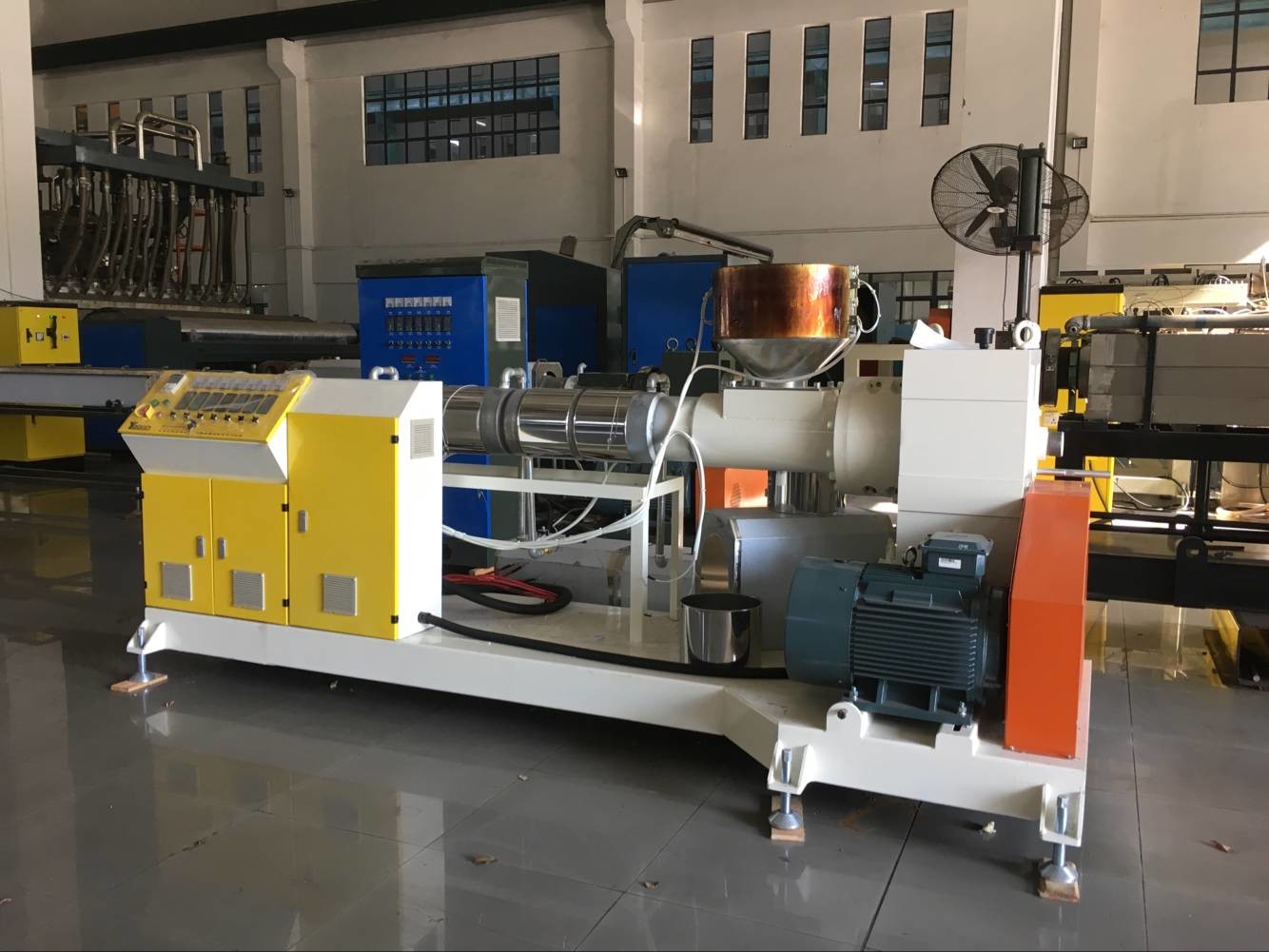

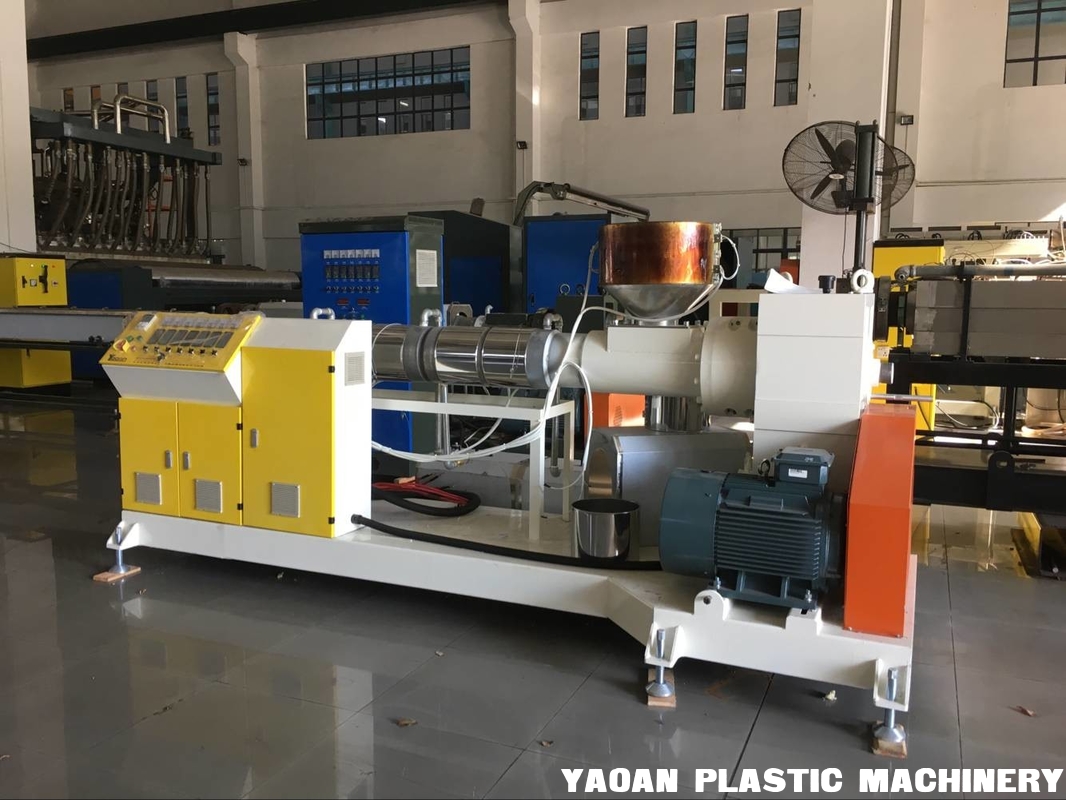

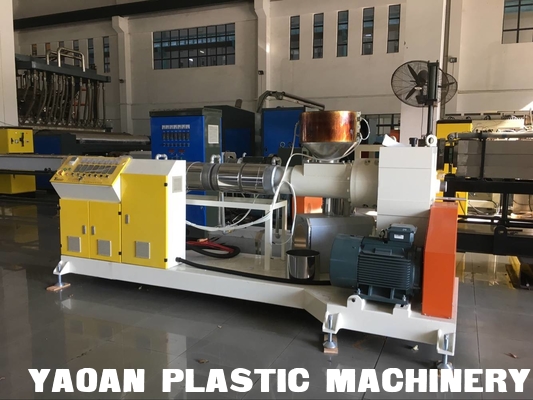

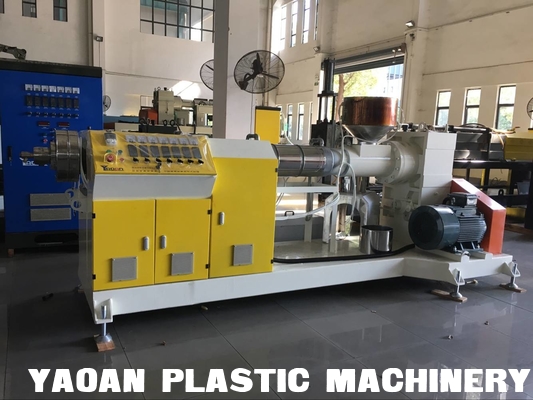

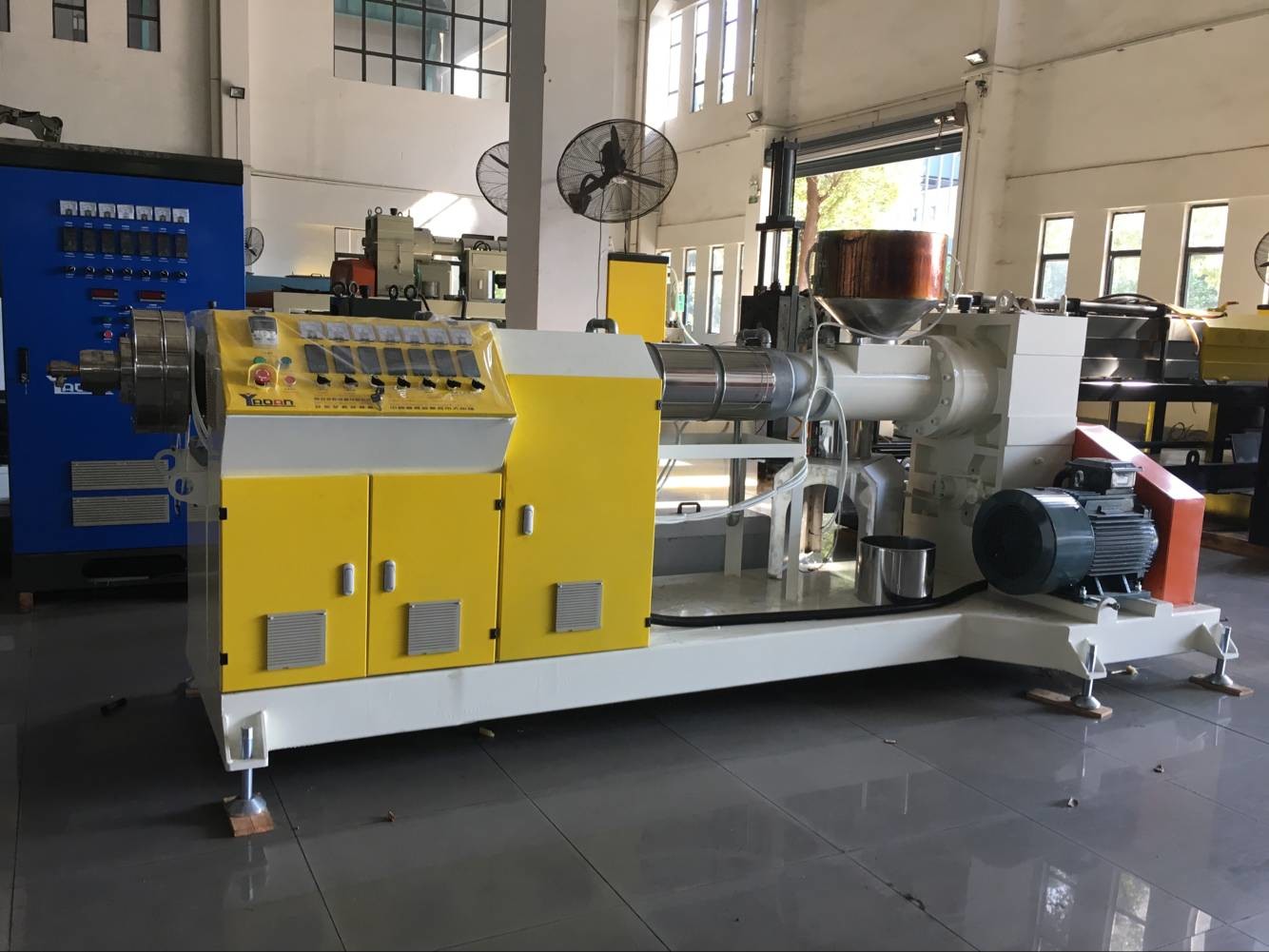

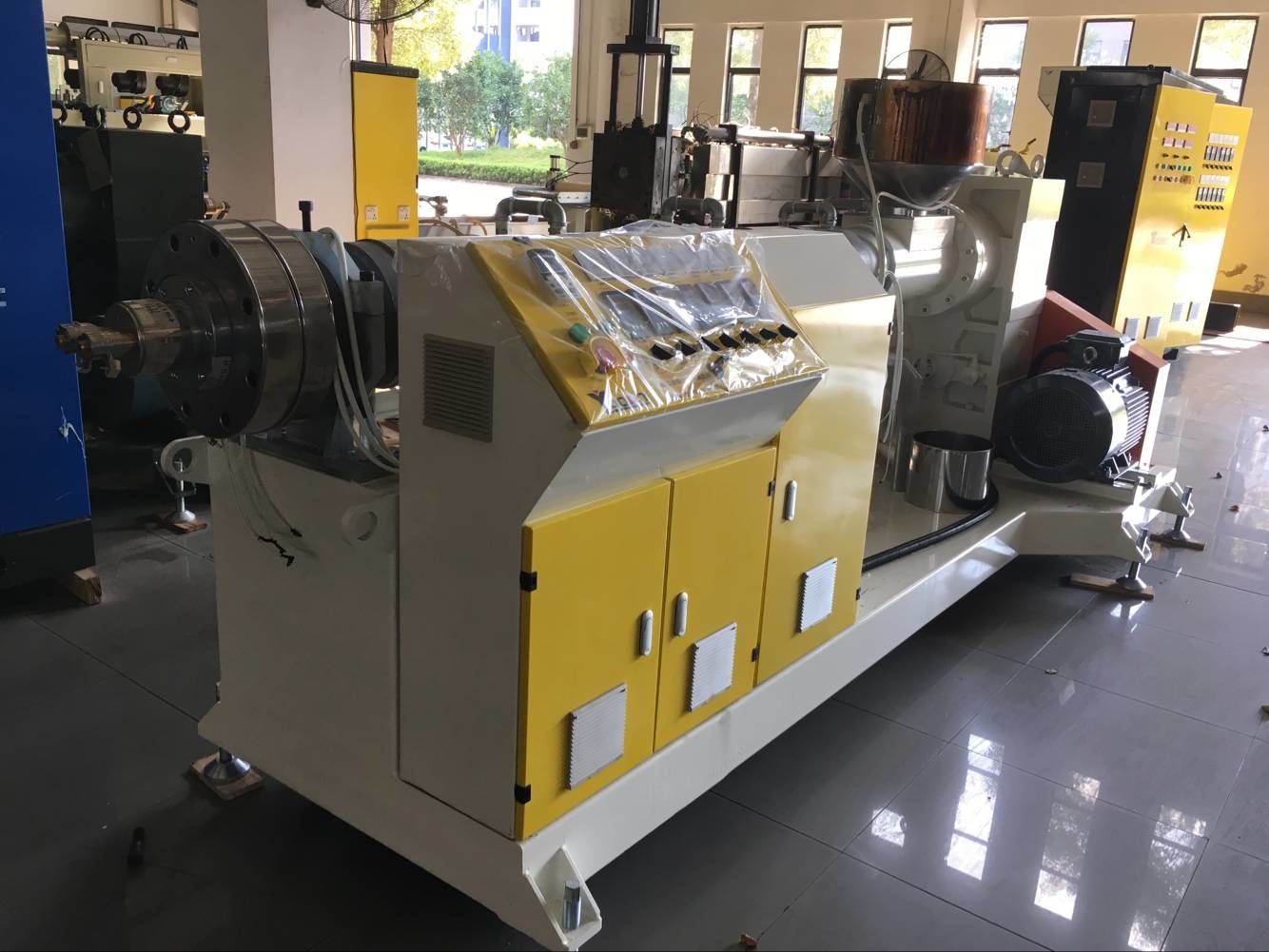

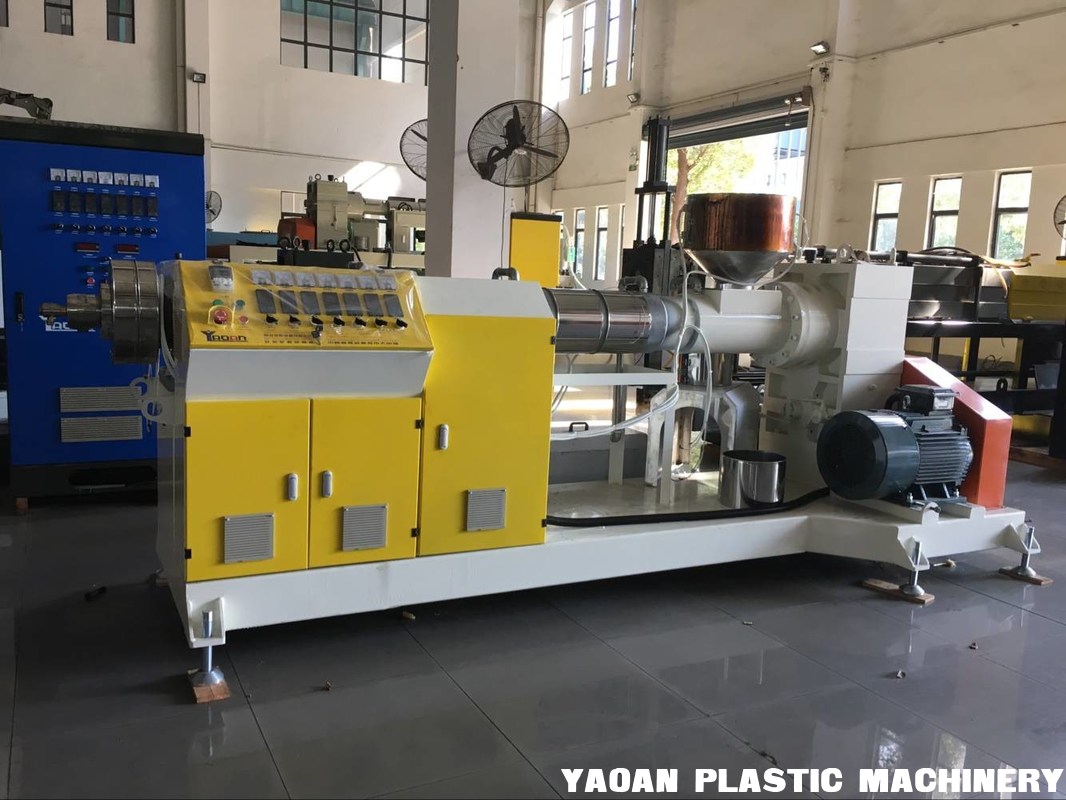

AF-180 EVA hot melt glue stick extrusion machine,CE certificated

Basic Information
Place of Origin: CHINA
Brand Name: YAOAN
Certification: CE
Model Number: AF-180
Minimum Order Quantity: 1
Packaging Details: WOODEN BOX
Delivery Time: 60 DAYS
Payment Terms: TT,LC
Supply Ability: 100 SETS PER MONTH
Contact Now
Raw Material: EVA Capacity: 200-300kg/hr
Machine Color: Yellow

EVA hotmelt glue stick extrusion line configuration:

1. Hot mixing vessel: 2 sets (500L)



2. Vessel frame: one set

Material: steel



3.EVA glue stick extruder: one set

Screw:

Screw structure: special

The screw and the barrels are all made of high quality nitride steel-38CrMoAIA, and are nitration austerely according to NATIONAL STANDARD,Nitration depth: screw: 0.3-0.7mm, barrel: 0.4-0.6mm,fragility is 2 grades.

Reducer: one

Extrusion mould with two flow channels: one (diameter: 7,11mm)



4. Cooling water tank: one set

Material: stainless steel



5. Two wheels haul-off unit: one set

Control power: 0.75kw

Control style: frequency conversion

Haul-off and automatic cutting machine: one set

Control power: 0.75kw

Control style: frequency conversion

Cutting motor: 0.75kw

Control style: frequency conversion
