pvc spiral reinforced hose machine

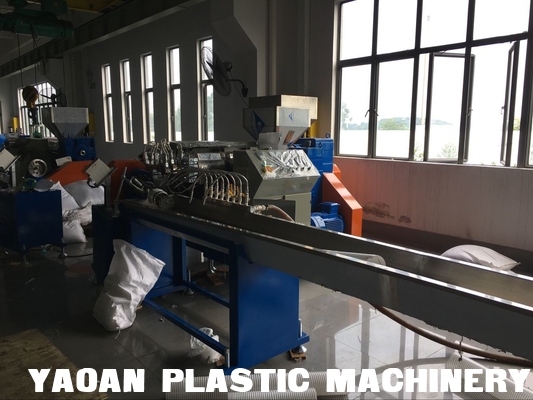

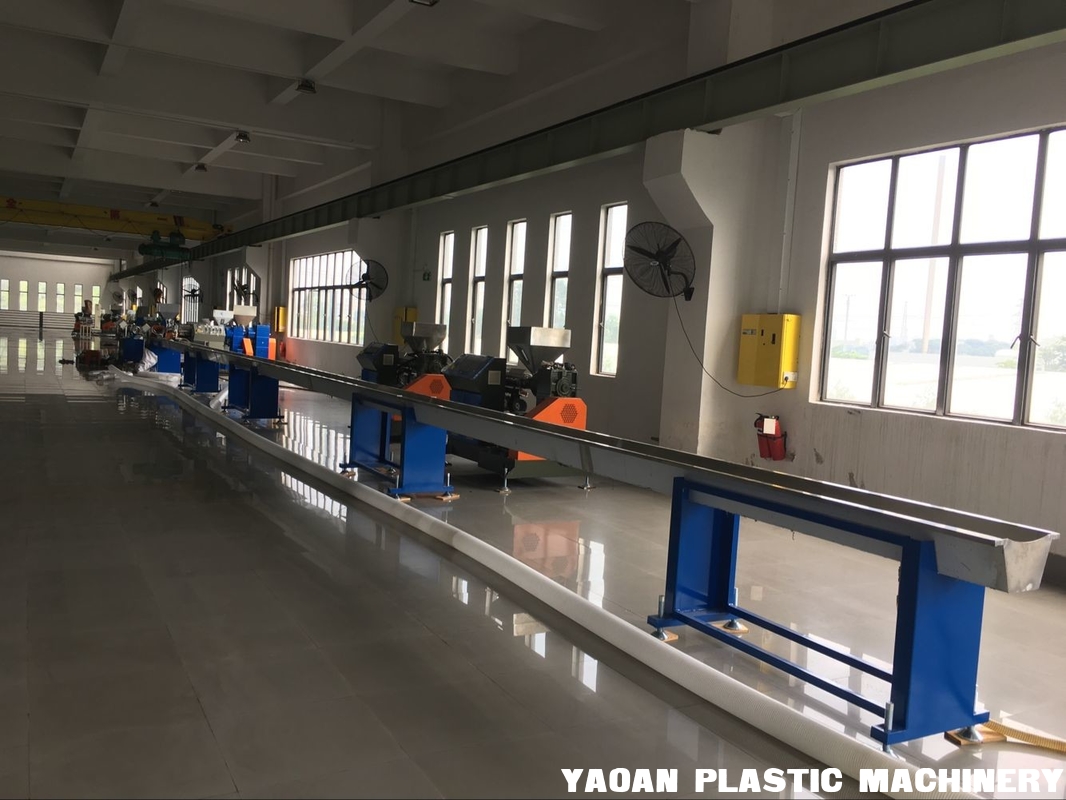

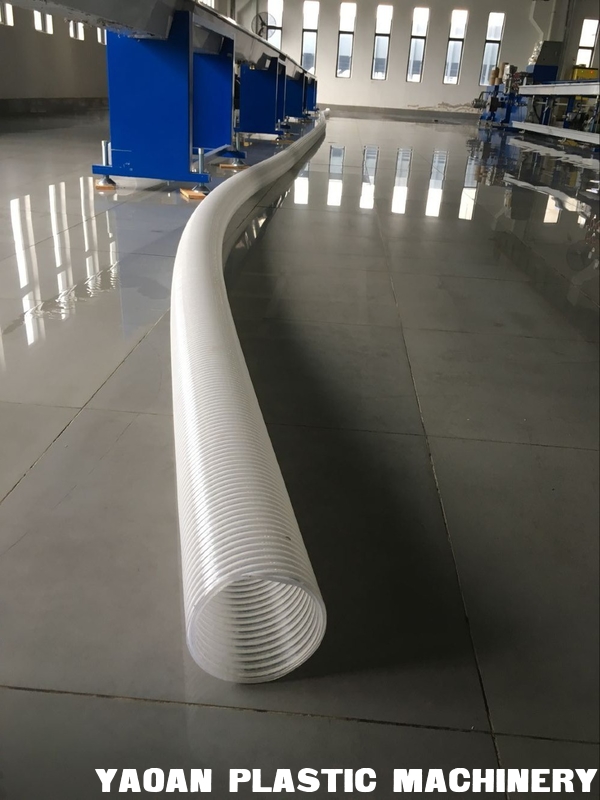

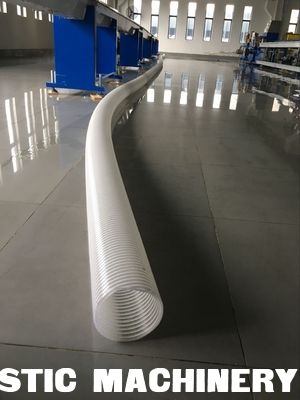

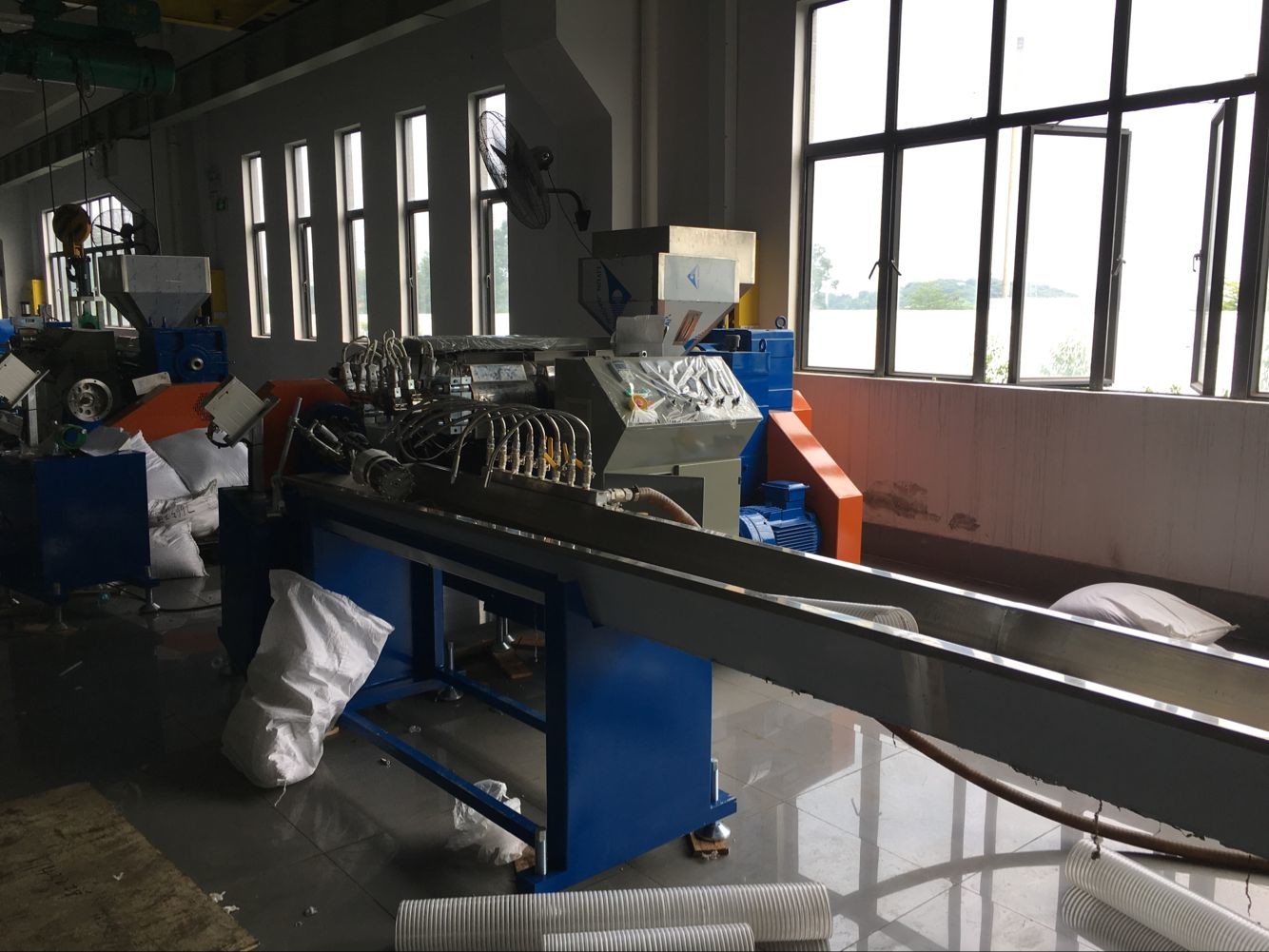

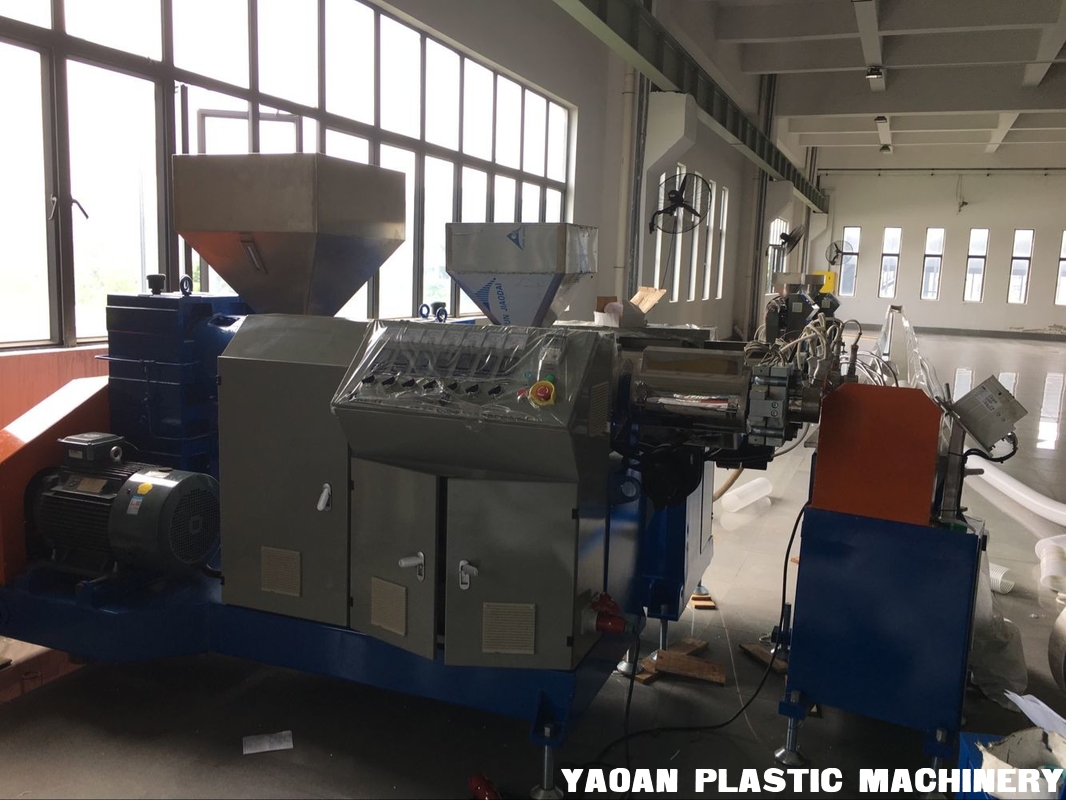

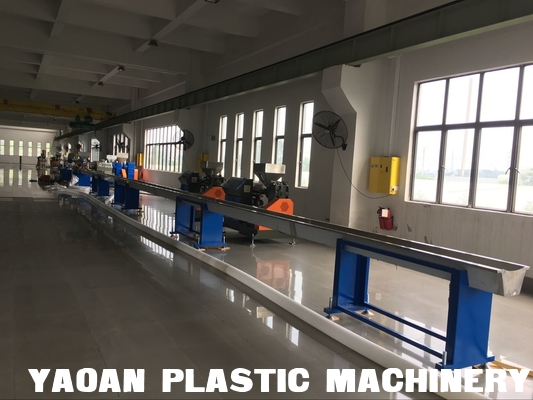

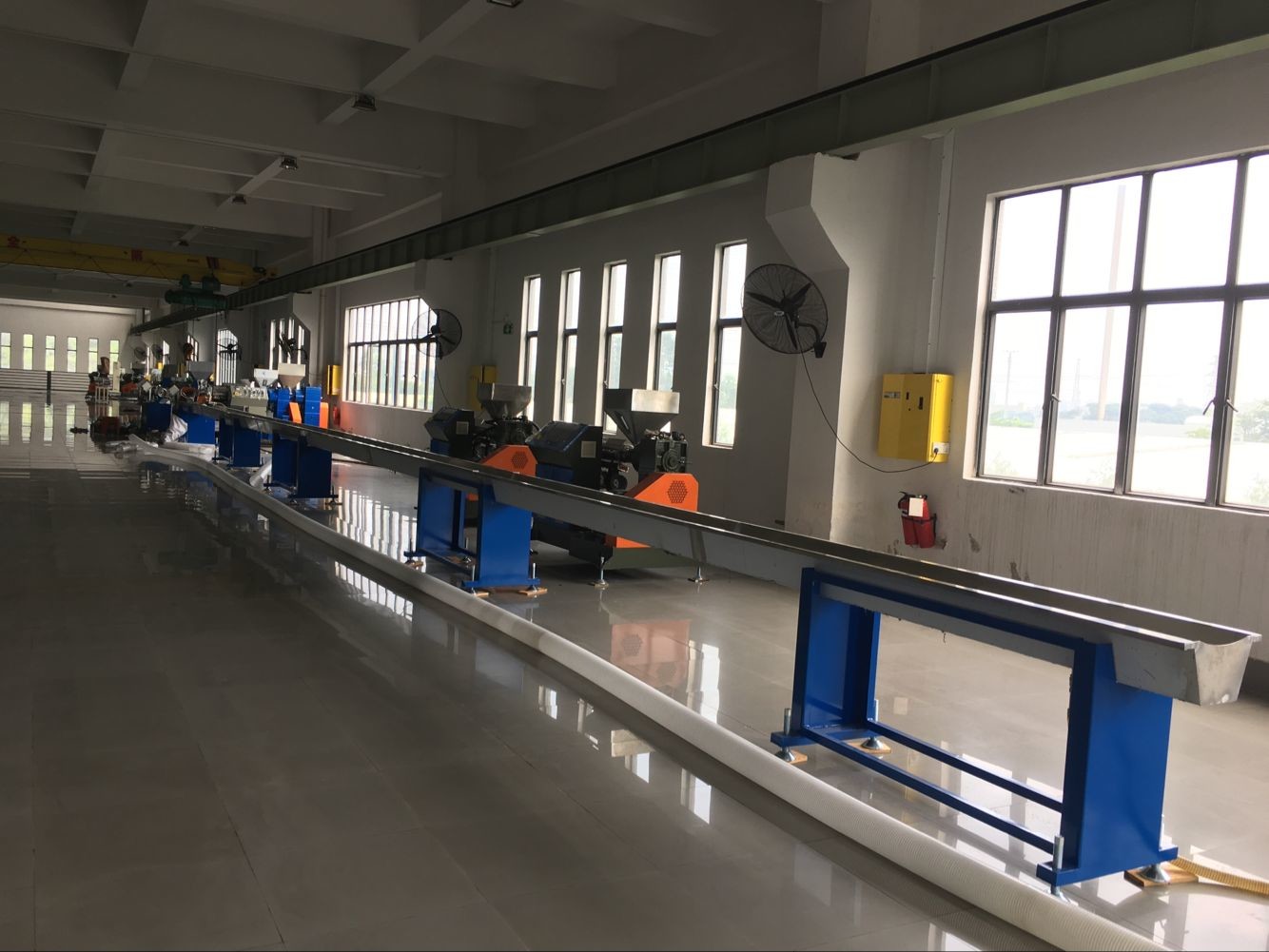

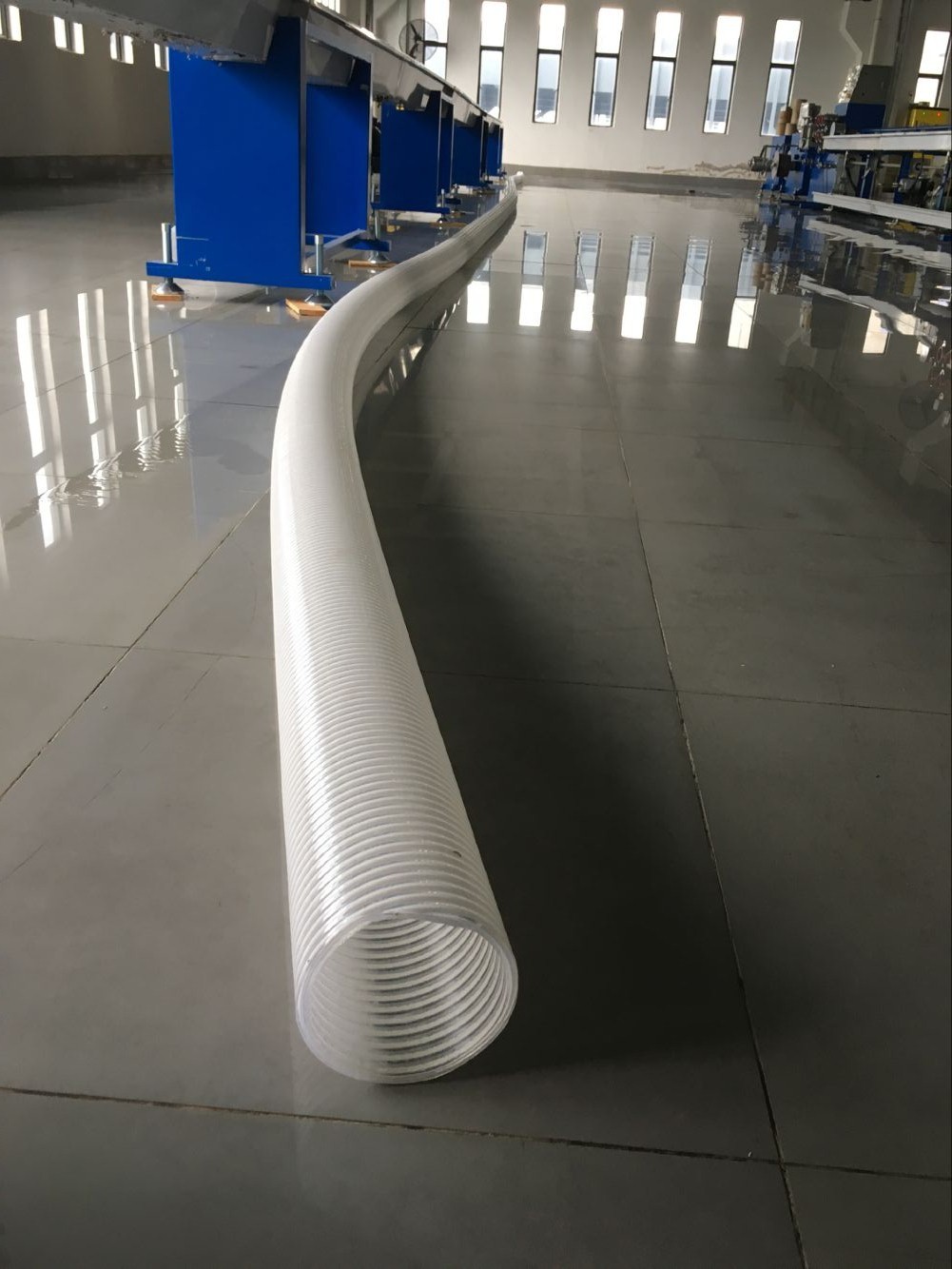

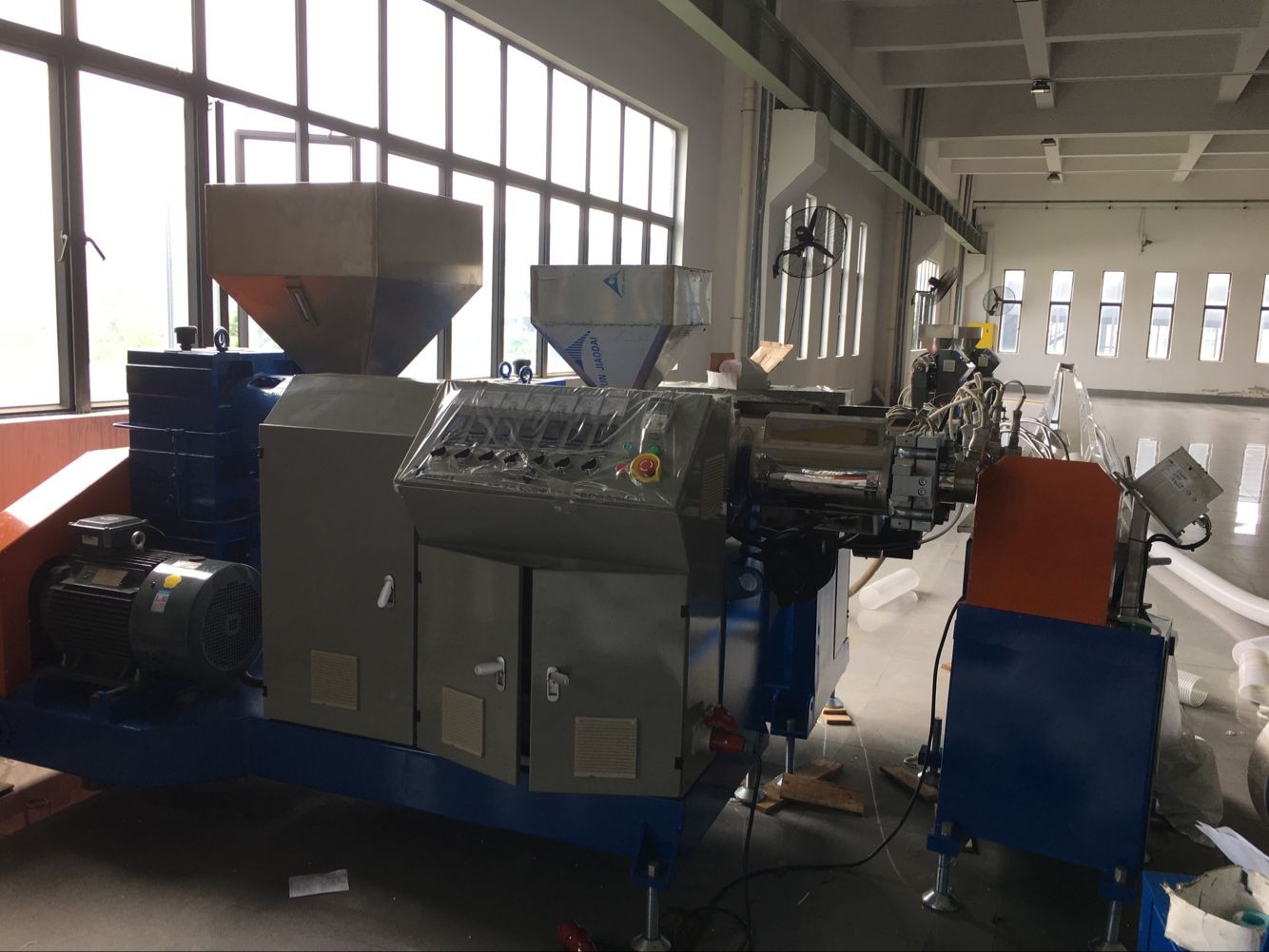

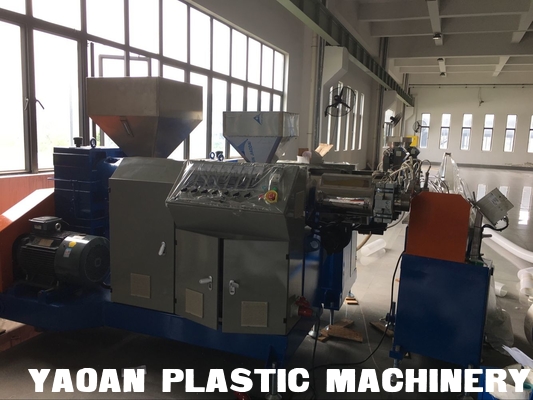

This line is designed to produce PVC spiral reinforced hose, it consists two extruders, forming unit, bath, winder, the wall of which is soft PVC and rigid PVC helix as reinforced, featuring extrusion resistance, corrosion resistance, regative pressure resistance, anti-bending, good negotiability, so it is suitable to conveying gas, liquid and powder, widely used in industry, agriculture, construction and irrigation etc.
Raw and additive---mixed ---feed —heating ---enter the extruder.---- extrude the mould–adjust diameters- –cooling –hauling-cutting -stacking –packing.
|Pipe diameter scope||25-50mm||64-150mm|
|Average energy consumption||21.7kw||35.1kw|
|Overall dimensions(L× W× H)||15000×4000×1500mm||18000×5000×2000mm|
|Overall weight||about 4ton||about 5ton|
|Pipe Size:||1" To 4"||Raw Material:||PVC Granulars|
|Main Extruder:||75mm||Sub Extruder:||45mm|
|Machine Color:||Grey, Blue|
